Maintenance Intervals
Gearbox Shaft Collar Connection
If you have experienced failed calibrations or if the motor seems to lose track of its position within the
stroke especially after a jam it’s likely the gearbox to motor shaft collar connection has loosened causing
the motor to slip. If this is occurring the Autodrive will not be functioning properly.
1. To check the connection first identify the 5/8" diameter hole on the side of the gearbox flange
at the rear of the Autodrive.
2. Remove the plastic cap plugging the hole.

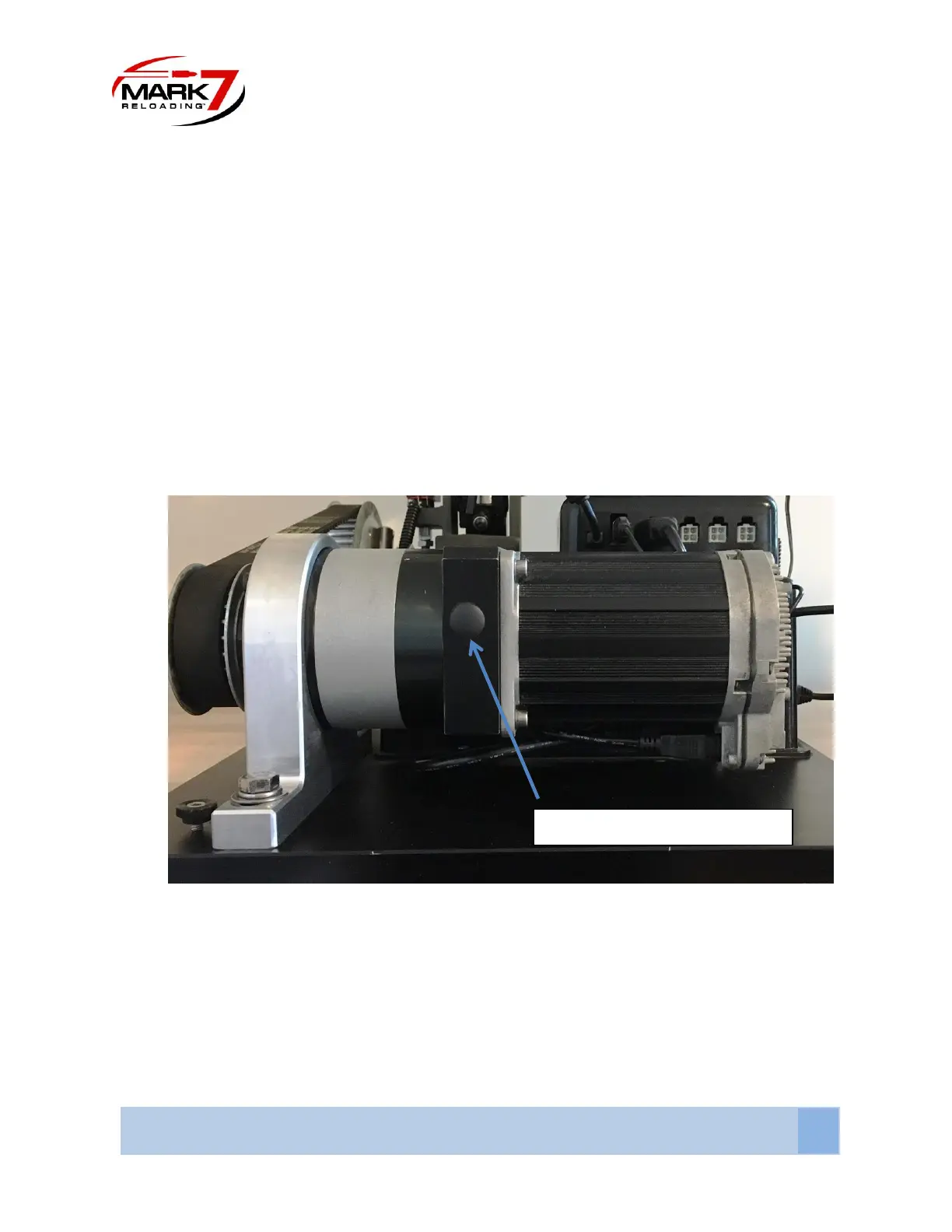

Figure 40: Gearbox Shaft connection
3. Using a light look directly into the hole.
4. While looking into the hole rotate the small sprocket very slowly. You will see the shaft collar
spinning inside the hole
5. There are 2X Metric socket head cap screws clamping the gearbox shaft collar to the motor
output shaft.
