10. EMI Filter for Mr.BulletFeeder
There is an external capacitor cable assembly included with your Mark 7® Autodrive. Ensure that this is
attached to the bullet dropper assembly between that assembly and the cables to the bullet feeder to
ensure error-free operation.

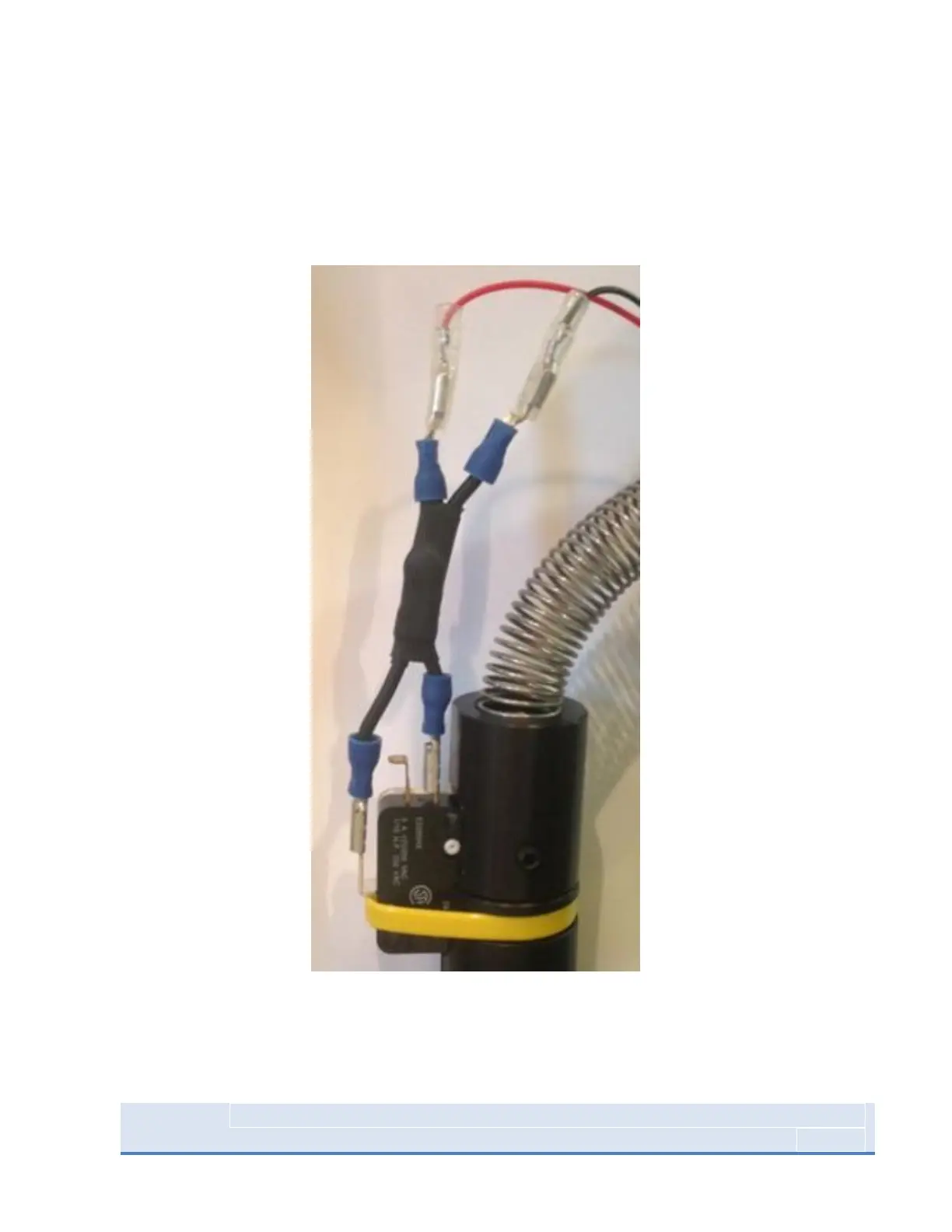

Figure 10: Mr. Bulletfeeder filter (Double Alpha)
