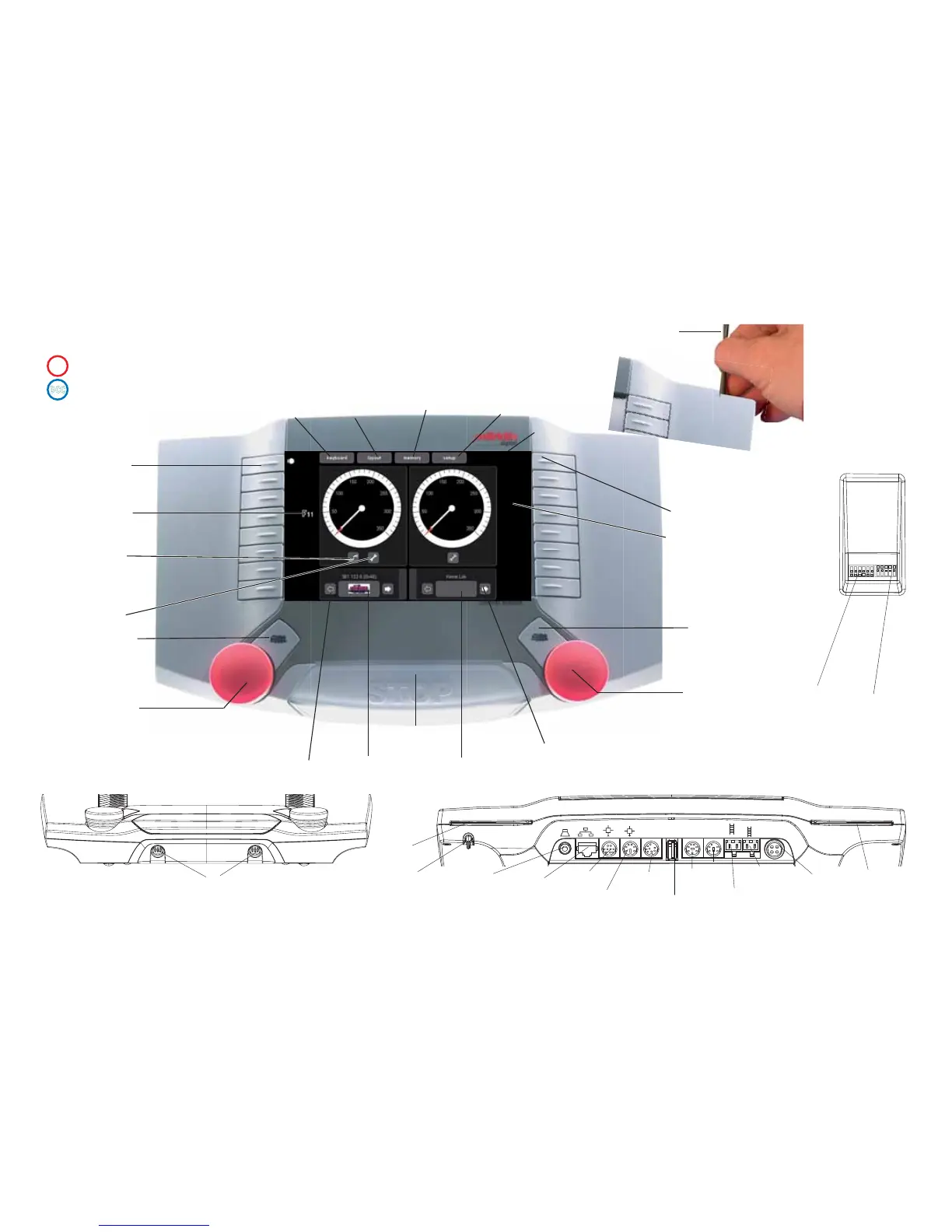

38
= Operating step(s) Märklin
= Operating step(s) DCC
Central Station
Function Buttons
0 - 7
Function Symbols
8 - 15
Control Knob 1
Control Knob 2
Function Buttons
0 - 7
Changing, Storing
of Data
Direction Indicator
Locomotive Image
and Name; Locomotive
Menu
Stop - Emergency
Stop
Switch to
keyboard
Switch to
layout
Switch to
memory
Switch to
setup
Switch to
control
Locomotive Image
and Name; Locomotive
Menu
Direction Indicator
Stylus
Function Symbols
8 - 15
Locomotive Menu
Locomotive Menu
Aux
60173
USB
Sx
B
0
prog
B
0
B
0
B
0
power
Power-supply
unit
T
rack
Programming
T
rack
Input
Output
Network
PC
Active Speaker
or Headphones
opt.
Booster
60174
opt.
Keyboard / Mouse
or USB Stick
Mobile Station Connections
Front of Unit
Back of Unit
Locomotive
Card
Locomotive
Card
Stylus
Booster
Connections
6017 / 6015
S 88 Feedback
Module
Connections
Underside of Unit
Locomotive set up
for a shuttle train
inactive / active
1
3
Table of Contents
Central Station
2
Getting Set up and Started
3
Preparations
3
Connections to the Layout
3
Connections to the Programming Track
3
Selecting and Running a Locomotive
4
Registering Mfx Locomotive
4
Selecting a Locomotive
4
Running a Locomotive
4
Function Switch
4
Loading the Basic Configuration for DCC
5
Function Switch
5
Selecting and Controlling Solenoid Accessories
5
Notes for the Central Station
6
Safekeeping
6
Cleaning
6
Technical Specifications
6
Control
7
Selecting and Running
8
Locomotive with an Mfx Decoder
8
Entering
9
With DIP Switches
10
Programmable Locomotive
11
Configuring a Locomotive
12
Changing Cvs (Parameters)
12
Adding a Shuttle Train Route
12
Changing or Adding Function Symbols
13
Example: Function Mapping
14
Programming on the Main (POM)
15
Accept Locomotive from Locomotive Card
15
Entering an M.U. Consist
16
Deleting a Locomotive or M.U. Consist
17
Turning off the Central Station
17
Keyboard
18
Controlling Standard Turnouts and Signals
19
Turntable
19
Selecting the Desired Address
20
Checking Accessory Function
21
Programming Professional Quality Color Light Signals
22
Layout
23
Setting up a Layout
24
Controlling Accessories with the Layout
26
Memory
27
Setting up a Route
28
Controlling a Route
29
Deleting a Route
29
Setup
30
Mobile Station 60652
32
Mobile Station 60653
32
System Architecture
33
Available Symbols
35
