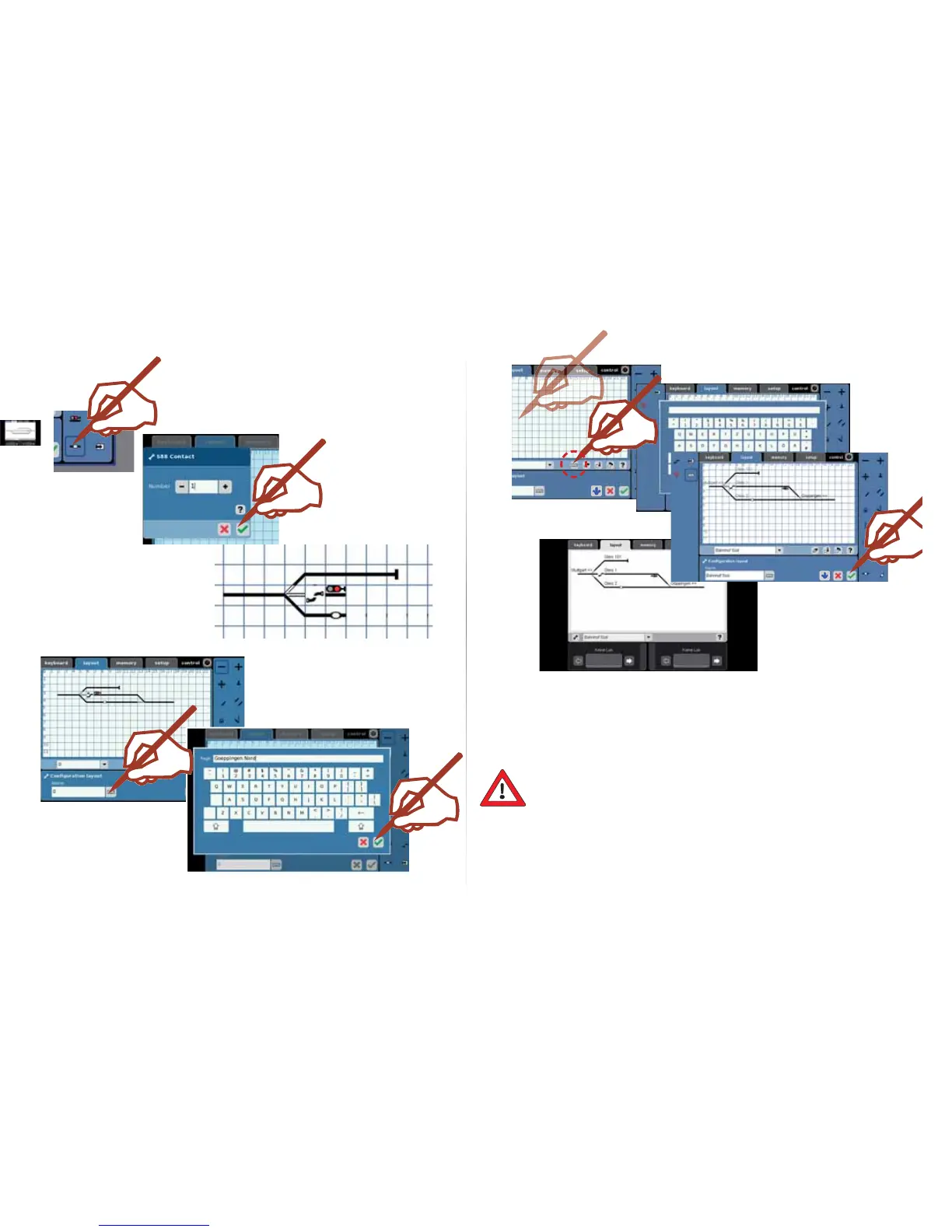

If the route is also to be operated by
means of an S 88 contact, the latter
can also be placed in the Layout.
Confi rm selection
An S 88 contact has been
placed in the Layout.
Including this contact in the
track diagram also allows it
to be activated manually.
Attach a name to the route
(Layout page) with the keypad
and then confi rm.
Controlling Accessories with the Layout.
After you have set up your Layout (track diagram) you can control individual solenoid accessories
or complete routes by touching the symbols. You can identify the status of particular solenoid
accessories from the track diagram.
Important Note!
Before you turn the Central Station off, perform the function “Shutdown“ in order to
ensure that all data has been saved. Data may be lost, when the Central Station is
suddenly turned off.
Enter the name into the track diagram, example: Track 1
d
c
Confi rm and save completed
route.
