33
8. Installation

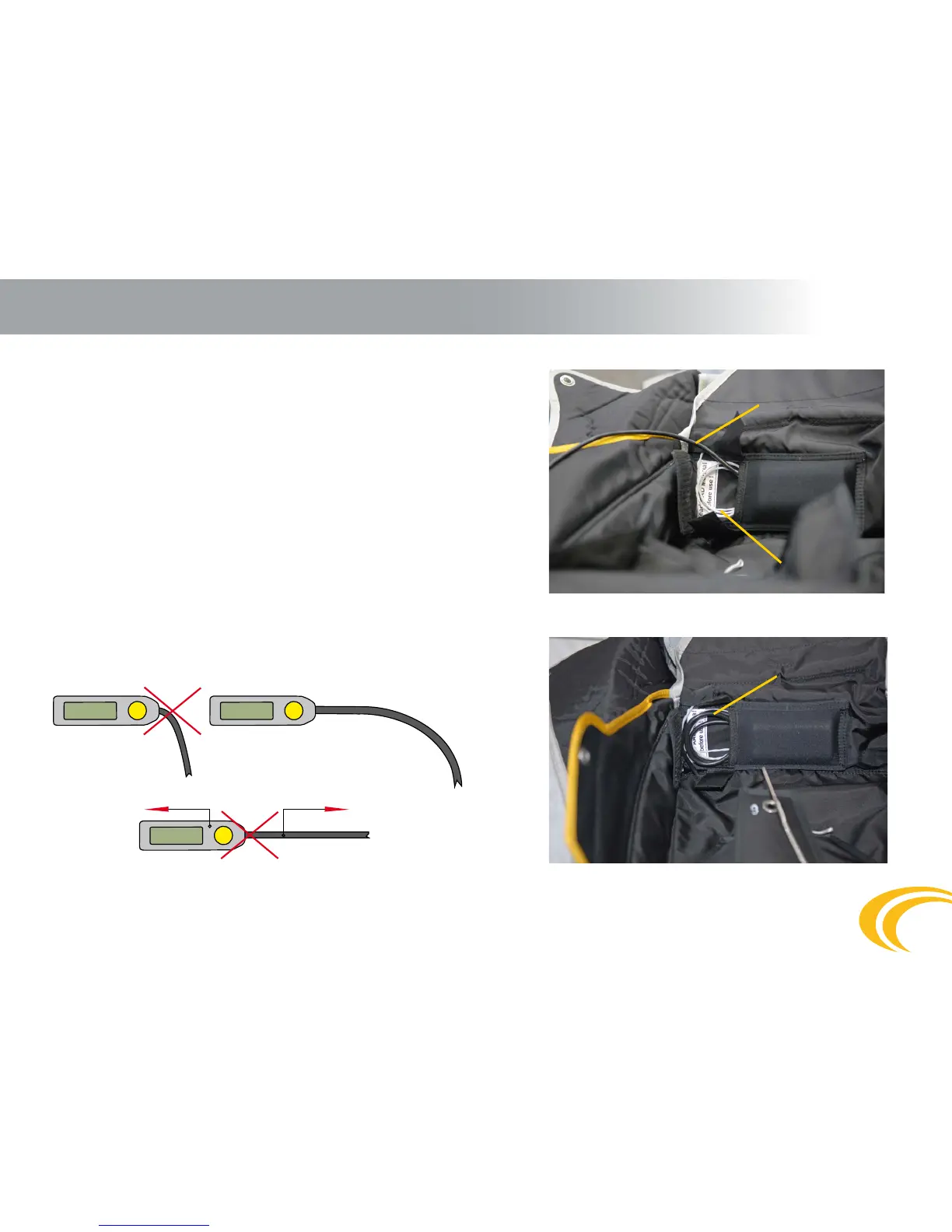

The thick cable of the control unit shall always be stowed as second onto
the already coiled thin cable. If the m
2
multi device body is stowed in such a
way that the thick cable is above the thin cable, coil the cable counterclockwise
(when looking from the front). Otherwise coil the cable in the opposite
direction. Both coiled cables shall be xed by a velcro.
When stowing the cables, it is necessary to avoid sharp breaks, knots and
tangling the cables! Stow the cables suciently loose as to avoid any
tension between the individual parts of the device.
Observe the minimum radius for coiling the cables r = 25mm! Breaking
the thick cable may cause damage and result in malfunction of the
m
2
multi!
It is also necessary not to pull on the cable, especially on the control and
cutter.
Cable of Control Unit
Cable of Control Unit
Cable of Cutter
NO!
NO! OK!
