36
9.1. Cutter replacement
If the m
2
multi device has been activated, there are two ways to restore the device:
a) Complete the form in the Manual, provide a detailed description of the event (activation) and send the form along with the m
2
multi device
to the address of either the manufacturer MarS a.s. or any authorized dealer to perform an overall analysis. In such case the cutter will be
replaced by the manufacturer or authorized dealer and the functional device will be sent back to the user within 14 day of having received
the device.

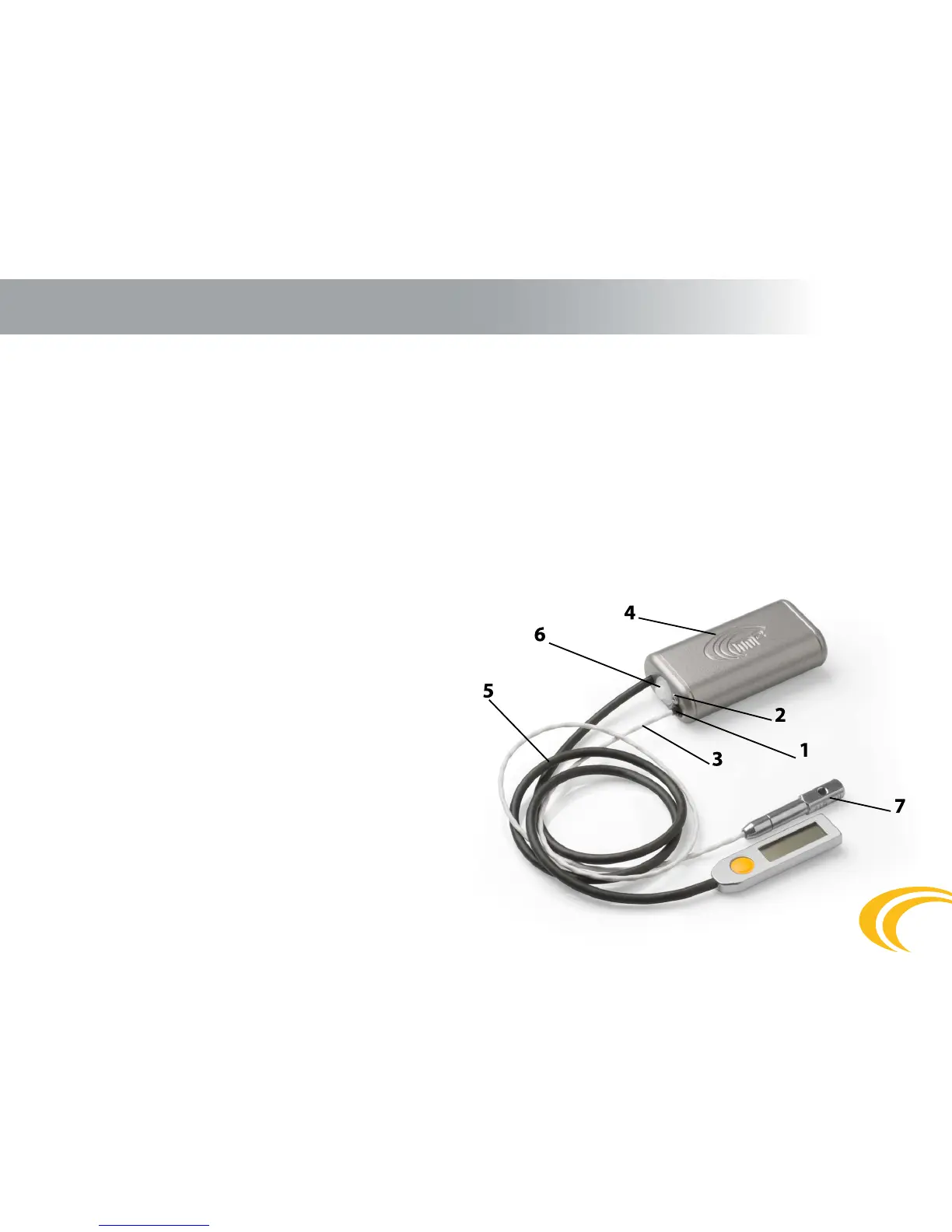

b) Cutter replacement performed by the user or rigger. When replacing the cutter it is always necessary to work with the device turned o๎;
work in a clean and dry environment and follow the instructions below. Use TORX T8 screwdriver to loosen and remove the locking screw
(2) securing the cutter (7) connector (1) to the m
2
multi device body (4). Gently pull and turn the connector (1) in any direction and remove it
completely. Make sure that the connecting area on the m
2
multi body (4) is free of dirt and that the old sealing o-ring that was a part of the
original connector (1) is removed. Lubricate the o-rings of the new
cutter connector (7) (use any silicone gel, including the silicone used
to treat the reserve parachute closing loop, - ATTENTION! - apply
only a thin layer of the silicone) and check that both o-rings are
undamaged and properly placed on the connector. Insert the new
cutter (7) connector (1) into the m
2
multi device body (4) by gently
pressing and turning the connector (1) in any direction until the
connector (1) is completely inserted in the m
2
multi device body
(4). Switch on the device to check proper function. If everything
works properly, secure the cutter (7) connector (1) to the device
body (4) by the locking screw (2). Tighten the screw only slightly.
Never use excessive force if you experience a problem loosening
the screw. Cool the device in the freezer, the contraction and
expansion of various materials will help to loosen the screw. Never
dispose of the used cutter in open ๎re or common waste. The
cutter remains under pressure!
9. Maintenance
