DX0.5 USERGUIDE

HAM09224UserGuideV1.0 10



…………

PassiveMainLoudspeakerswithSubwoofersandDelays



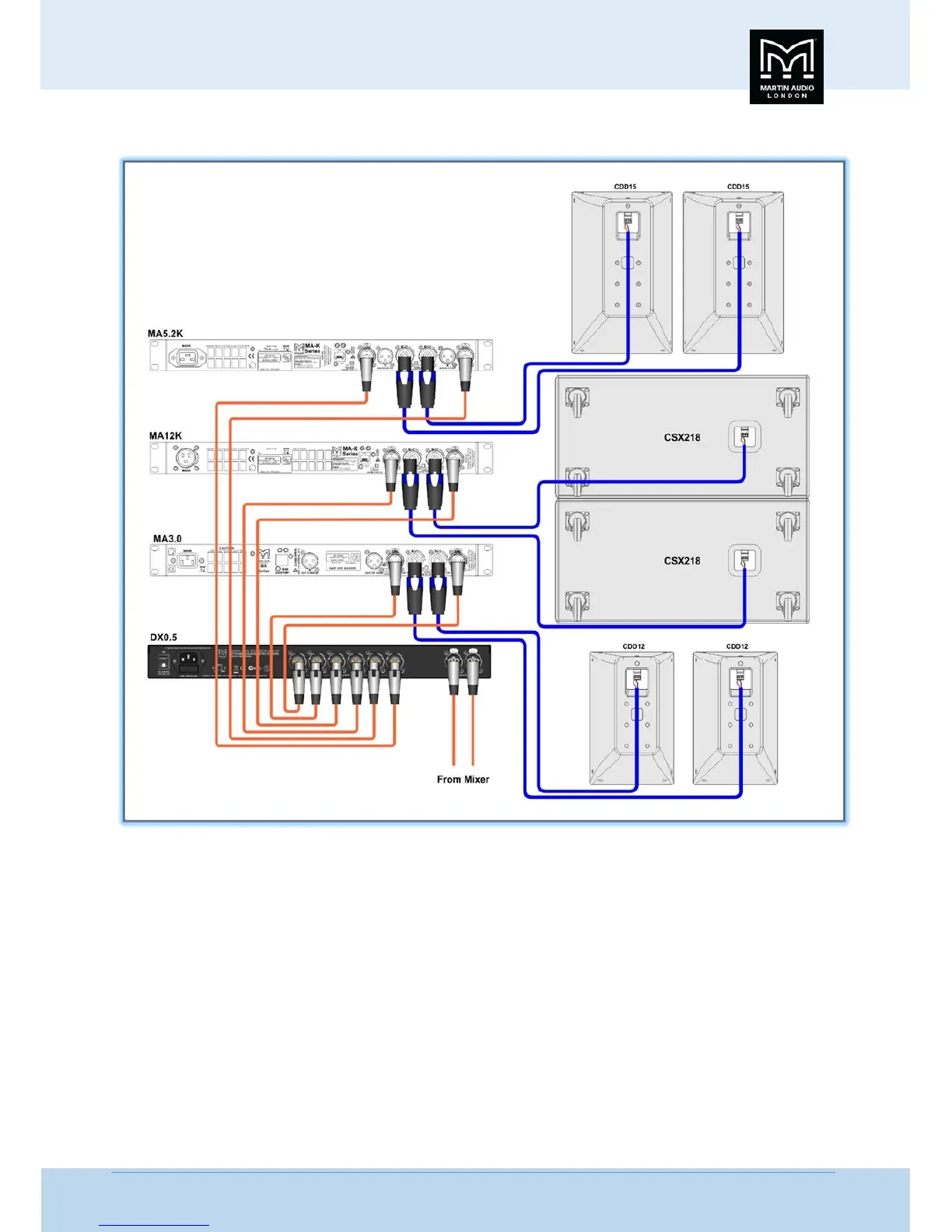

In this example, the DX0.5 is configured usingthe ‘2xStereo+Subs’ setup type. The example here is how the system for the

nightclubsectionoftheCDDlauncheventwasconfigured.Theleftandrightline‐levelXLRoutputsfromamixerfeedtheAand 

BXLRinputs ofthe

DX0.5.XLR outputs 1 and 2ofthe DX0.5 feedthe1 and2 XLRinputsof aMartinAudio MA5.2K Power

Amplifier.TheCH1andCH2NL4speakeroutputsofthepoweramplifierfeedthePhoenixinputsoftwoMartinAudioCDD15

passiveloudspeakers.Theseloudspeakersarepositioned

toprovidethemaindancefloorcoverage.

XLRoutputs3and4oftheDX0.5feedthe1and2XLRinputsofaMartinAudioMA12KPowerAmplifier.TheCH1andCH2NL4

speakeroutputsofthispoweramplifierfeedthePhoenixinputsoftwoMartinAudio

CSX2182x18"subwoofers.TheDX0.5’s

high‐andlow‐passfilters onoutputchannels1–4areconfiguredtocreateacrossovertooptimizethesesubwooferswiththe 

CDD15sloudspeakers.ThesubsmaybestereoormonobyconfiguringtheinputsourcesforDX0.5outputs3and4.

XLRoutputs5

and6oftheDX0.5feedthe1and2XLRinputsofaMartinAudioMA3.0PowerAmplifier.TheCH1andCH2NL4

speakeroutputsofthispoweramplifierfeedthePhoenixinputsoftwoMartinAudioCDD12passiveloudspeakers.Thisfull‐range

pair is positioned at

the back of the dance floor facing back towards the DJ to ensure complete coverage at the SPL levels

demandedbyclubattendees.
