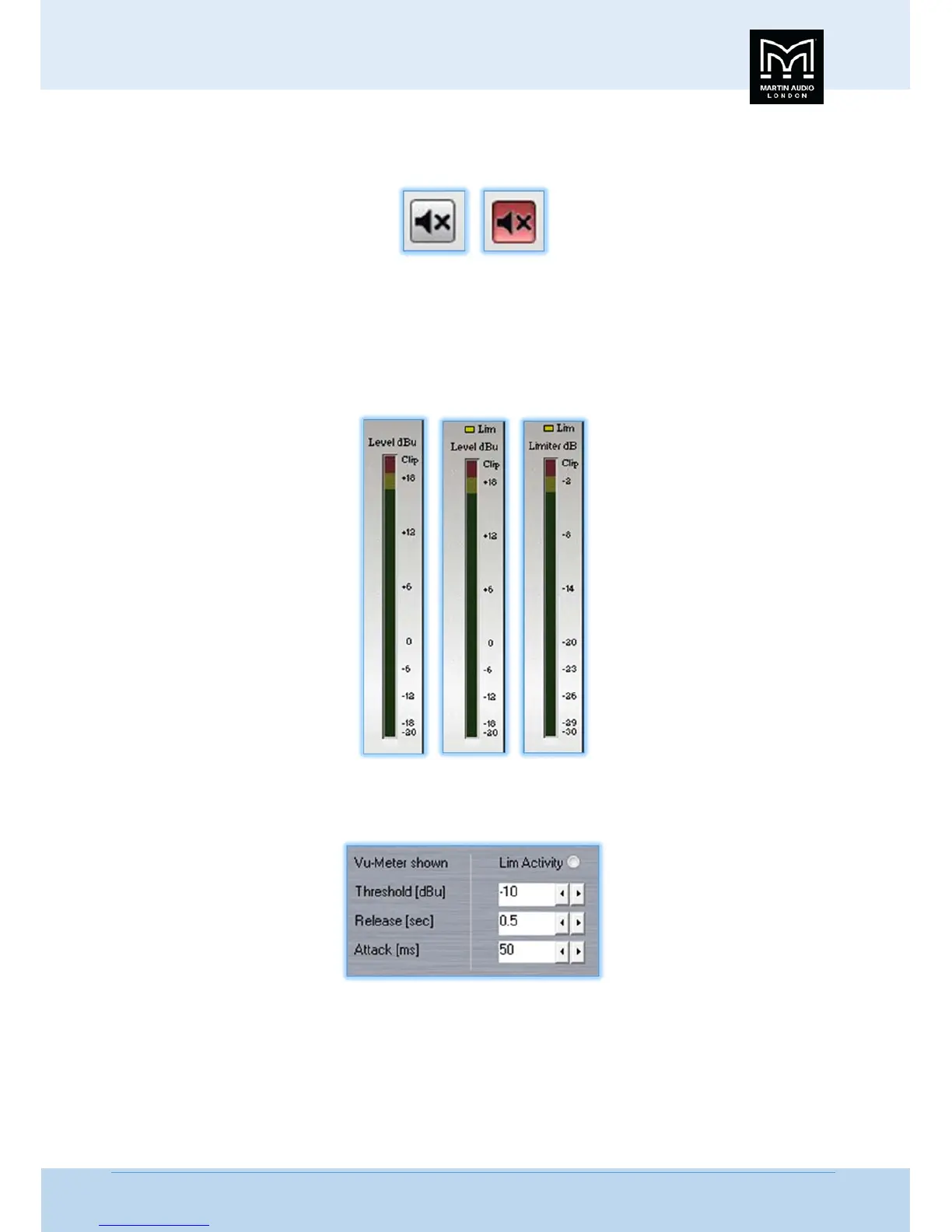

MuteisavailableonallinputandoutputchannelsviatheMutebuttonjusttotherightofthefaderandbelowtheVUmeter.In

normal,un‐mutedmodethebuttonisgrey,whenactivatedthechannelismutedandthebuttonturnsred.Herearebothun‐

mutedand

mutedversions;‐



Metering

Bothinputandoutputchannelsfeaturemulti‐segmentbargraph‐styleVUMeterswhichhaveascalefrom‐20dButo+18dBu

withaclipsegmentrightatthetop.Theoutputmetersalsofeaturealimitlightabovethebargraph toindicatelimiteroperation.

Inadditionthereisanoptioninthe

LimitersectionchangetheoutputVUMeterfunctiontoindicatelimiteractivity.Thischanges

thescaletoreadfrom‐30to‐2dB.  Hereareinput andoutputVUmetersplus andoutputmeterconfigu red toshowlimiter

activity;‐



Limiters

Limitersareavailabletoprotectthespeakersystemconnectedto

eachoutput;‐



ThesehavefullyadjustablecontrolsfortheThreshold;thelevelindBuatwhichthelimiterwillactivate.Thiscanbeadjusted

from‐10to20dBu.20dBuisthe defaultwhichisessentiallyoutofcircuit.Valuescanbeadjustedupanddownusingthetwo

arrowedbuttons

orspecificvaluestypeddirectlyintothewindow.

Attacktimeisthetimeinmillisecondsbeforewhichthelimiterwilloperate;ashortertimeactslikeacliplimiterstoppingvirtually

allsignalsfromexceedingthethresholdlevel,aslowertimewillallowshort‐termpeakstopassthroughwhilst

stillrestrictingthe

longtermpowerkeepingittowithinlevelsatwhichthedriverswillavoiddamage.Aswiththresholdthevaluescanbe cycledup
