DX0.5 USERGUIDE
HAM09224UserGuideV1.0 43

…………

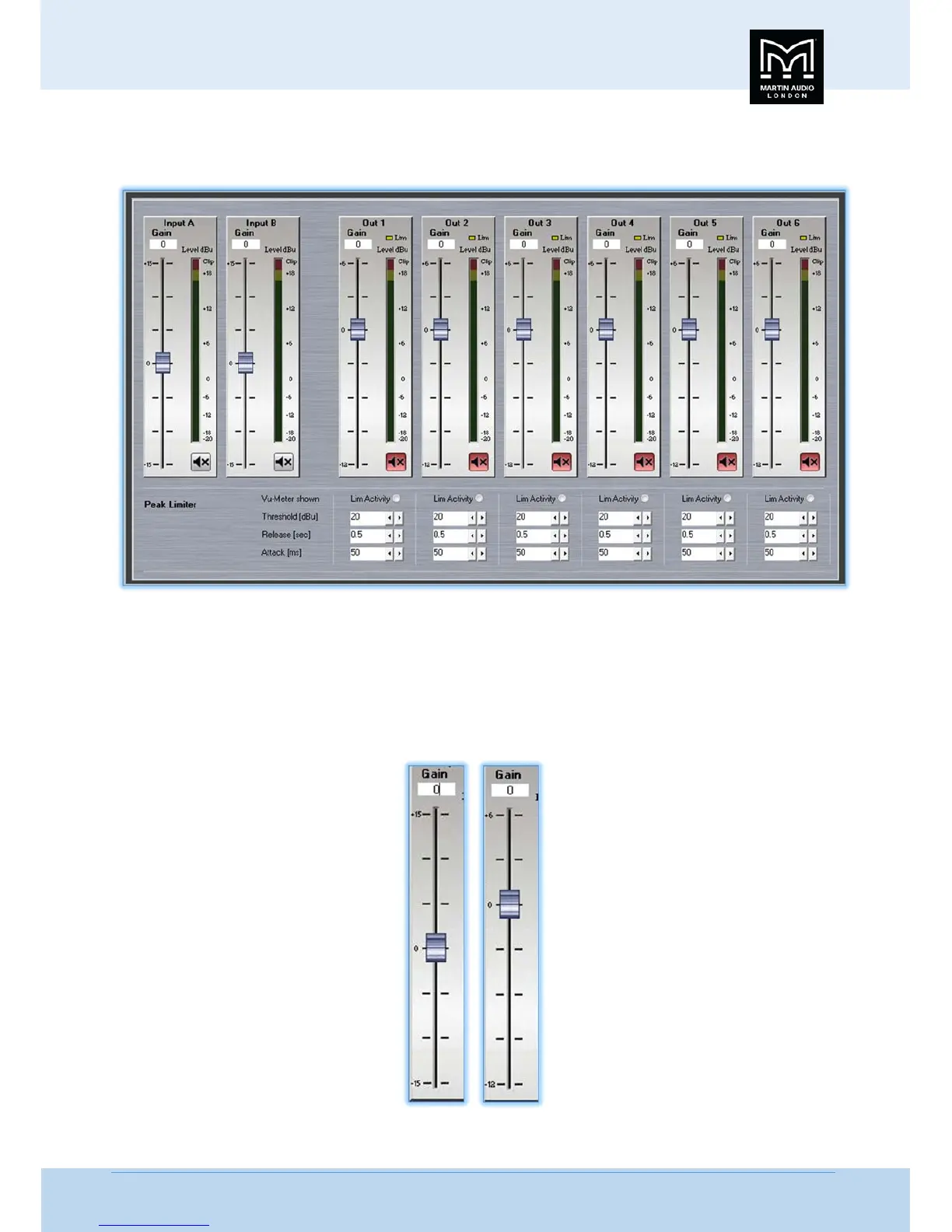

Gain/Mute/Lim
ThefirstandpossiblymostimportanttabistheGain,muteandlimiterpage;‐

Fromthispageyoucanviewtheinputandoutputlevels,adjustgain,mutechannelsandsetlimiterparameters.
Gain
Gainisadjustableforbothinputsandallsixoutputsusingeitherthegainfaderwhichcanbedraggedanddroppedtoanyvalue
requiredoralternativelyspecificvaluescanbetypedintotheGainvaluewindow.Inputgaincanbeadjustedfrom‐15to+15dB.
Outputgainfrom‐12dBto
+6dB.Thefadersdefaulttothezeropositionthereforeareinaslightlydifferentverticalpositiondue
tothedifferentscales.Hereareaminputandoutputfaderforcomparison;‐

