DX0.5 USERGUIDE
HAM09224UserGuideV1.0 46

…………

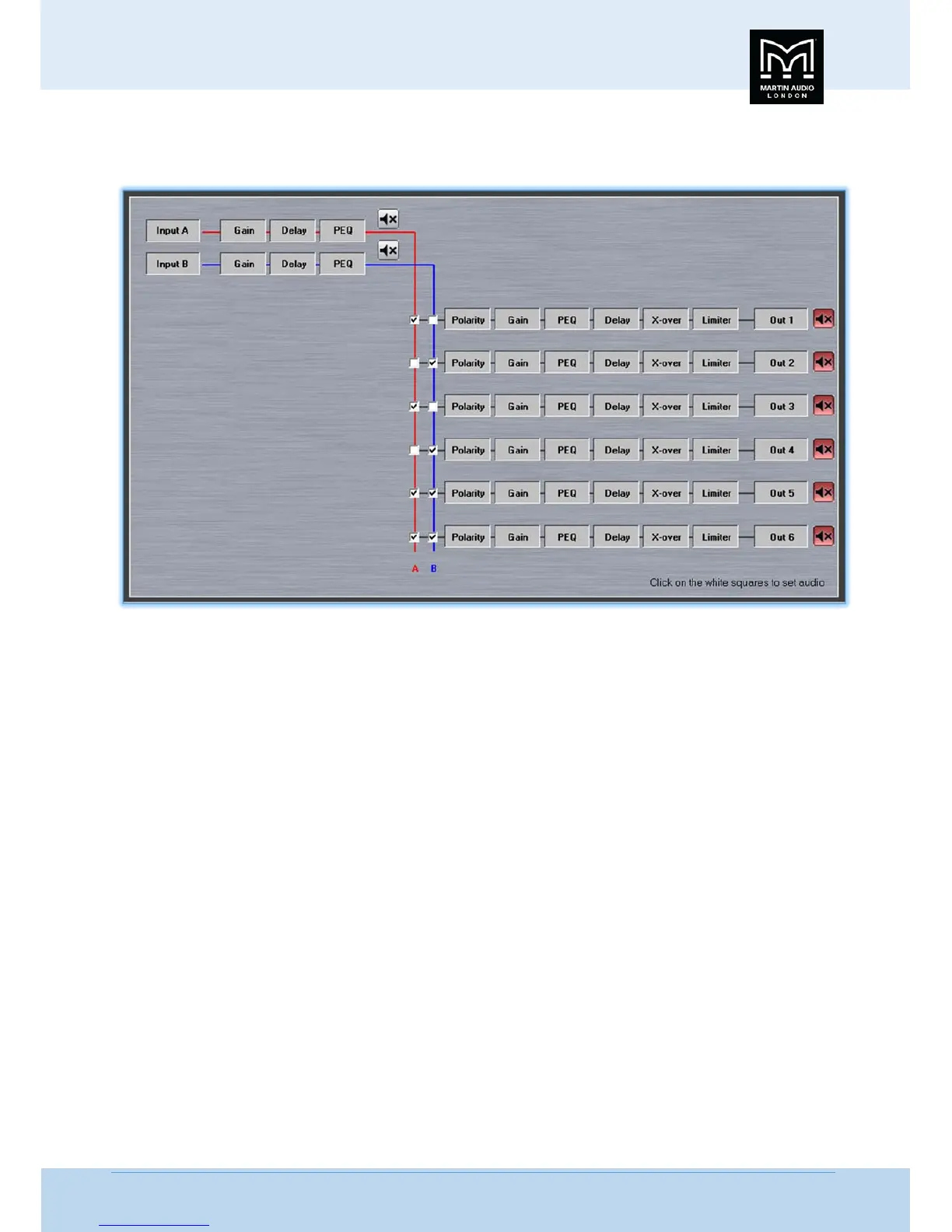

Routing
Theroutingtaballowsyoutoconfiguretheroutingfromthetwoinputchannelstothesixoutput;‐

Thispagealsoallowsquickaccesstothepagesforotheradjustments;‐
Clickingonanyothertheinputoroutputboxeswillbringuptheoutputnamingwindow.
Clickingonanyof
theGainorLimiterboxeswillopentheGain/Mute/Limtab.
ClickingonaPolarityorDelayboxwilltakeyoutotheDelayTab. 
ClickingonPEQorX‐overwillopentheinputoroutputchanneltabdependingonwhichboxisclicked.
TheroutingfrominputsAand
Bwillbepre‐determinedbyyourchoiceofsystemconfigurationbutcanbefreelymodifiedtosuit
yourrequirementsbysimplyclickingonthenodestoshowatick.Notthatalloutputsmusthaveatleastoneinputrouted,they
cannotbeleftun‐routed(butcanofcourse
bemutedifyoudon'tneedtouseachannel).Bothnodescanbeclickedtorunthe
outputchannelfromamonosignalderivedfrombothinputchannels;‐
