PoweredArrayableLoudspeakersandSubwoofers


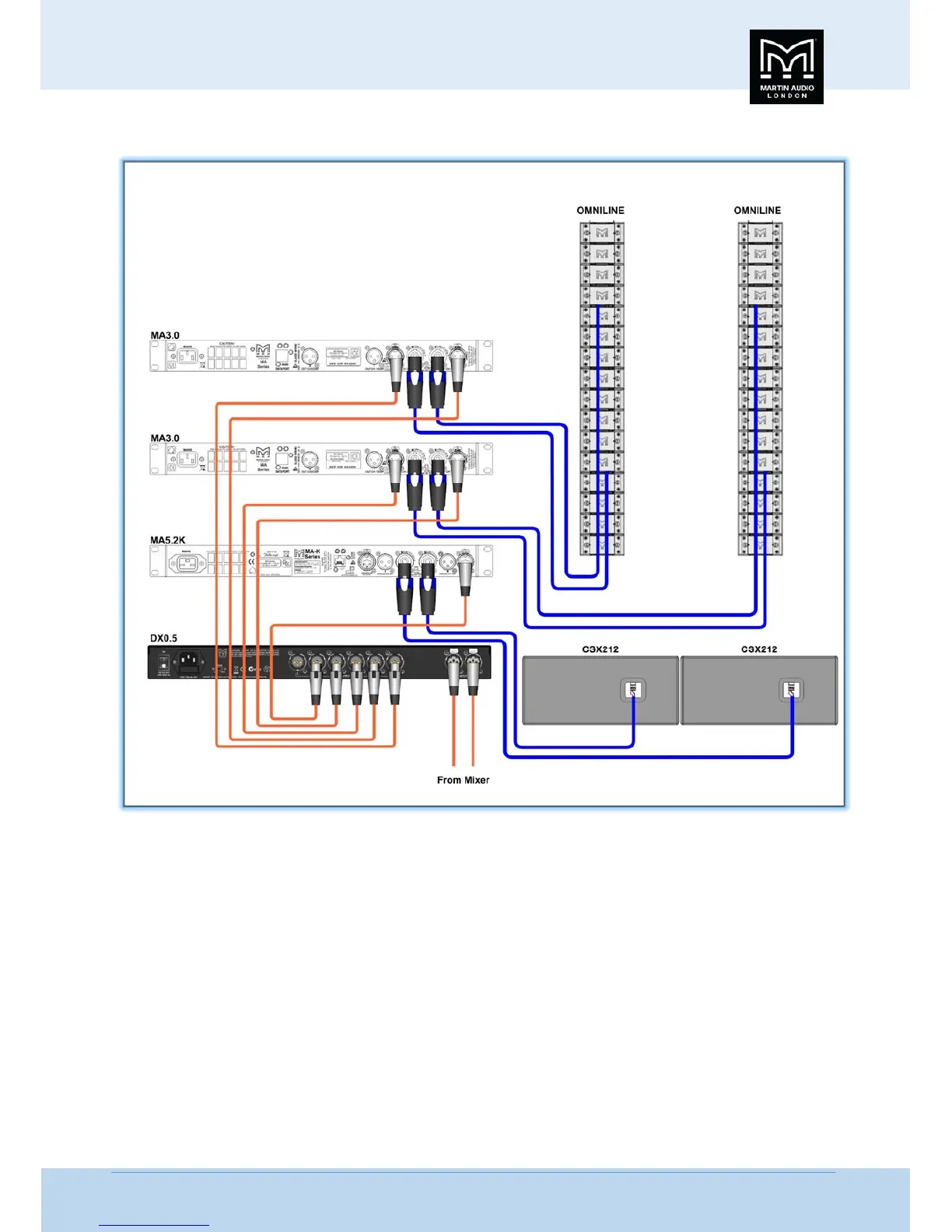

Here,theDX0.5isconfiguredusingthe‘2xStereo+Subs’setuptype.Theleftandrightline‐levelXLRoutputsofamixerfeedthe
AandBXLRinputsoftheDX0.5LoudspeakerManagementsystem.
XLRoutputs1,2,3and4oftheDX0.5feedtheXLRinputsofa
pairofMA3.0amplifiers.TheCH1andCH2NL4speakeroutputs
ofthesepoweramplifiersfeedthePhoenixinputsofthetopandbottomofastereopairof16moduleOmnilinearrays
XLRoutput5oftheDX0.5isconnectedtotheA&BXLRmaininputs
ofaMartinAudioMA5.2K;itisonlynecessarytoconnecta
cabletoinputAastheamplifierhasalinkswitchtoparallelbothinputs.TheCH1andCH2NL4speakeroutputsofthispower
amplifierfeedthePhoenixinputofapairofCSX212passive
subwoofers
The DX0.5’s high‐ and low‐pass filters  on output channels 1–5 may be  configured to create a crossover to optimize the
subwooferswiththeOmniline.ThesubsarerunmonobyproperlyconfiguringtheinputsourcesforDX0.5output5.TheDX0.5
maybeusedforaddingthePEQrecommended
bytheOmnilinesoftwareandanyadditionalroomcorrectiveEQ.Delaytoalign
theloudspeakersandsubwooferscanbeaddedandalimiterforprotectionofthesystem.

