O3 Regional Oximeter Chapter 4: Operation
www.masimo.com 30 Masimo
Site Selection Menu
Note: The O3 system is intended for the monitoring of rSO
2
in the cerebral region under the
sensors. Other Body Sensor Sites selections are for reference only and are not intended for
patient monitoring.
When the connector end on the O3 Sensor is first inserted into the O3 Module, 1 is defaulted
to the left forehead and 2 is defaulted to the right forehead. The sensor site selection can be
modified by accessing the Site Selection menu.
There are two ways to access this menu:
1. To access this menu tap the drop-down menu on the top right corner of the O3
Module window. Then press on the Site Selection button.
Or
2. Press the Gear icon on the lower right corner of the main window of Root to access
the Main Menu, then press the O3 icon to access the O3 Module Menu and select
the Site Selection Menu.

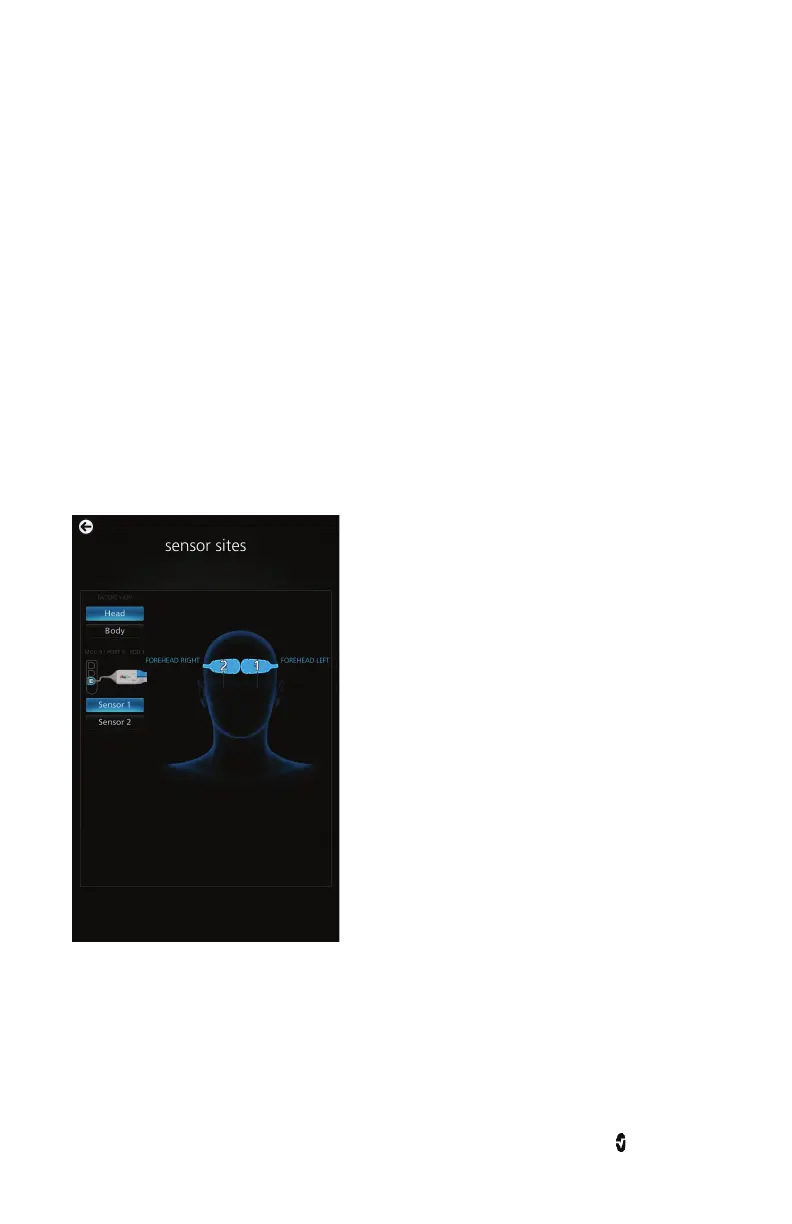

When the Site Selection menu is accessed, the sensor site screen displays on Root, as
illustrated below:
Select the Head or Body buttons at the upper left corner of the screen to switch between Head
and Body Patient View site selection menus.
Note: Sensor icons appear white when not selected and blue (with the corresponding sensor
number) when selected.
