Root with Pathway Pathway
www.masimo.com 24 Masimo
• Black - above the set PR Threshold Low Limit.
• Yellow - below the set PR Threshold Low Limit but above the set Critical Limit.
• Red - below the set PR Threshold Critical Limit.
Visual Indicators
In Pathway mode, visual indicators are provided under the following circumstances, based
upon the hospital's established Glide Path visualization settings. See SpO2 Target Range on
page 14.
• SpO
2
is Low. See description of SpO2 Low on page 24.
• SpO
2
is High. See description of SpO2 High on page 25.
• PR is Low. See description of PR Low (Below 100 bpm) on page 26.
• PR is Critical. See description of PR Critical (Below 60 bpm) on page 26.
Note: Visual indicators of deviations of the SpO
2
and PR from the Glide Path are not alarms
and therefore will not generate audible alarms.

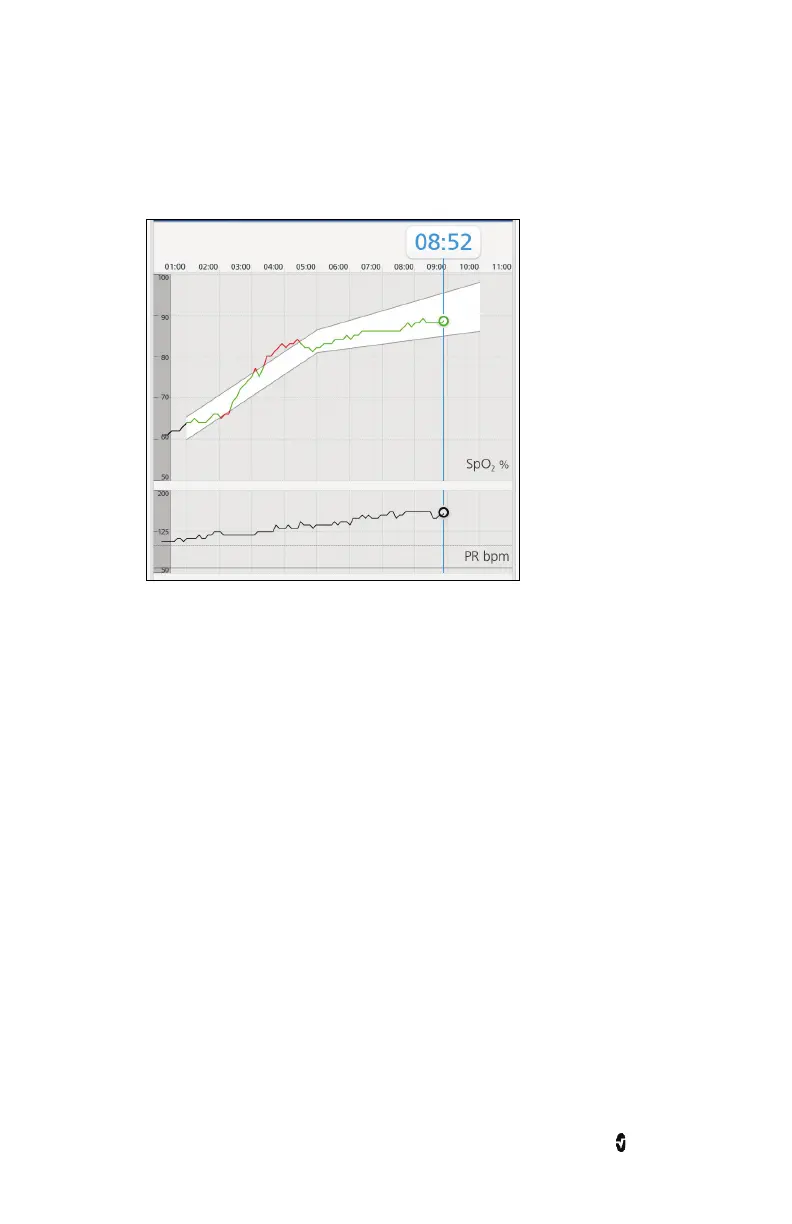

SpO2 Low
When SpO
2
is below the glide path:
• Red SpO
2
indicator and red glow from the bottom edge of the trend.
• No message displays in the header.
