Slot Type Multi Video Signal Generator MSPG-8000
www.Ltdmaster.com 49

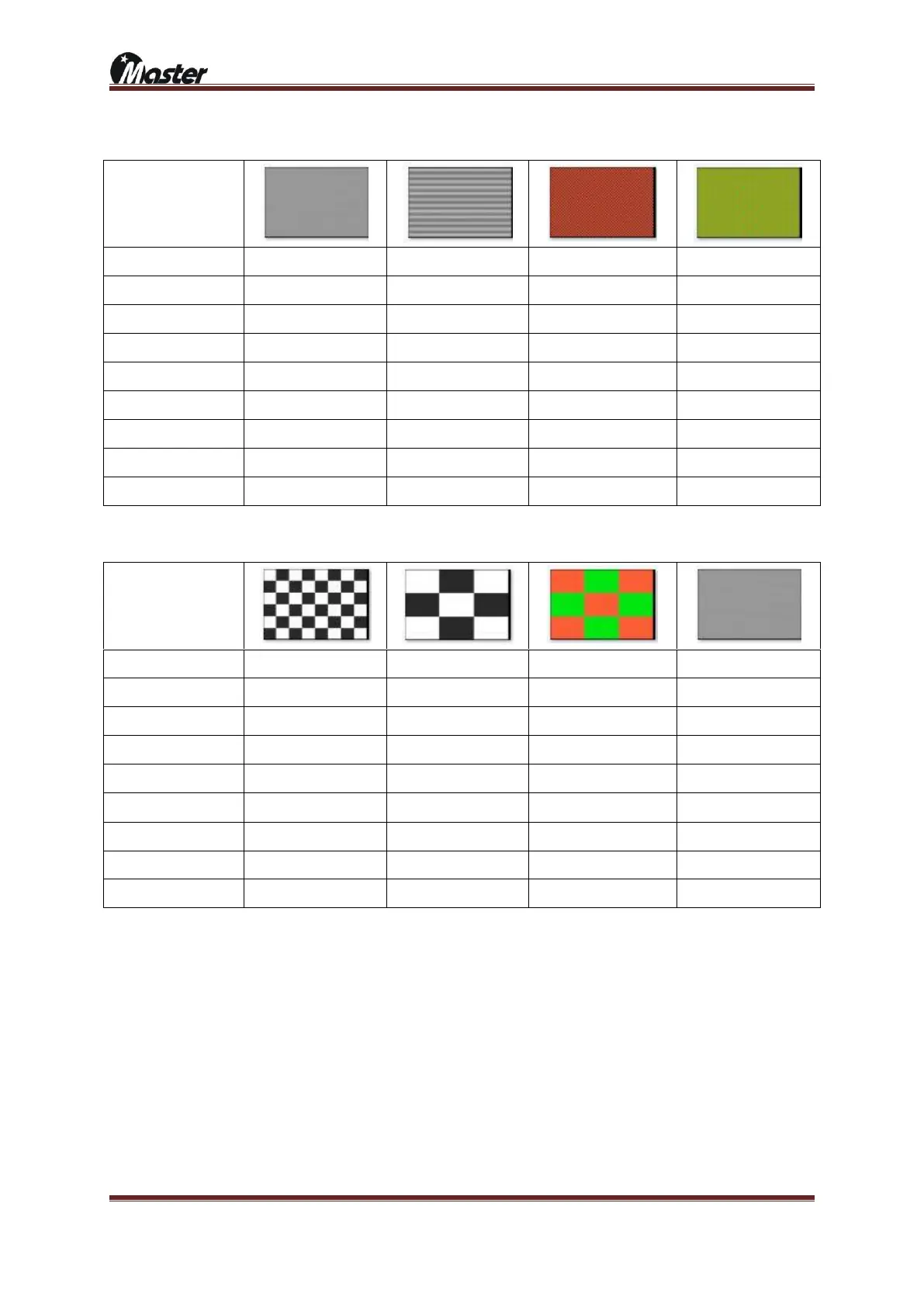

③ Line on/off pattern No.505 edit value and result.
Ref.no 505
Line On/Off pattern
1.On Size
1
5
5
5
2.Off Size
1
5
5
5
3.H/V Line, Dot Select
0
1
2
2
4.Color On R Level
255
255
255
255
5.Color On G Level
255
255
0
0
6.Color On B Level
255
255
0
0
7.Color Off R Level
0
0
0
255
8.Color Off G Level
0
0
0
255
9.Color Off B Level
0
0
0
0
④ Chess pattern No.507 edit value and result.
Ref.no 507
Chess pattern
1.H Divide
8
3
3
1
2.V Divide
6
3
3
1
3.Divide / Pixel select
0
0
0
1
4.Color On R Level
255
255
255
255
5.Color On G Level
255
255
0
255
6.Color On B Level
255
255
0
255
7.Color Off R Level
0
0
0
0
8.Color Off G Level
0
0
255
0
9.Color Off B Level
0
0
255
0
