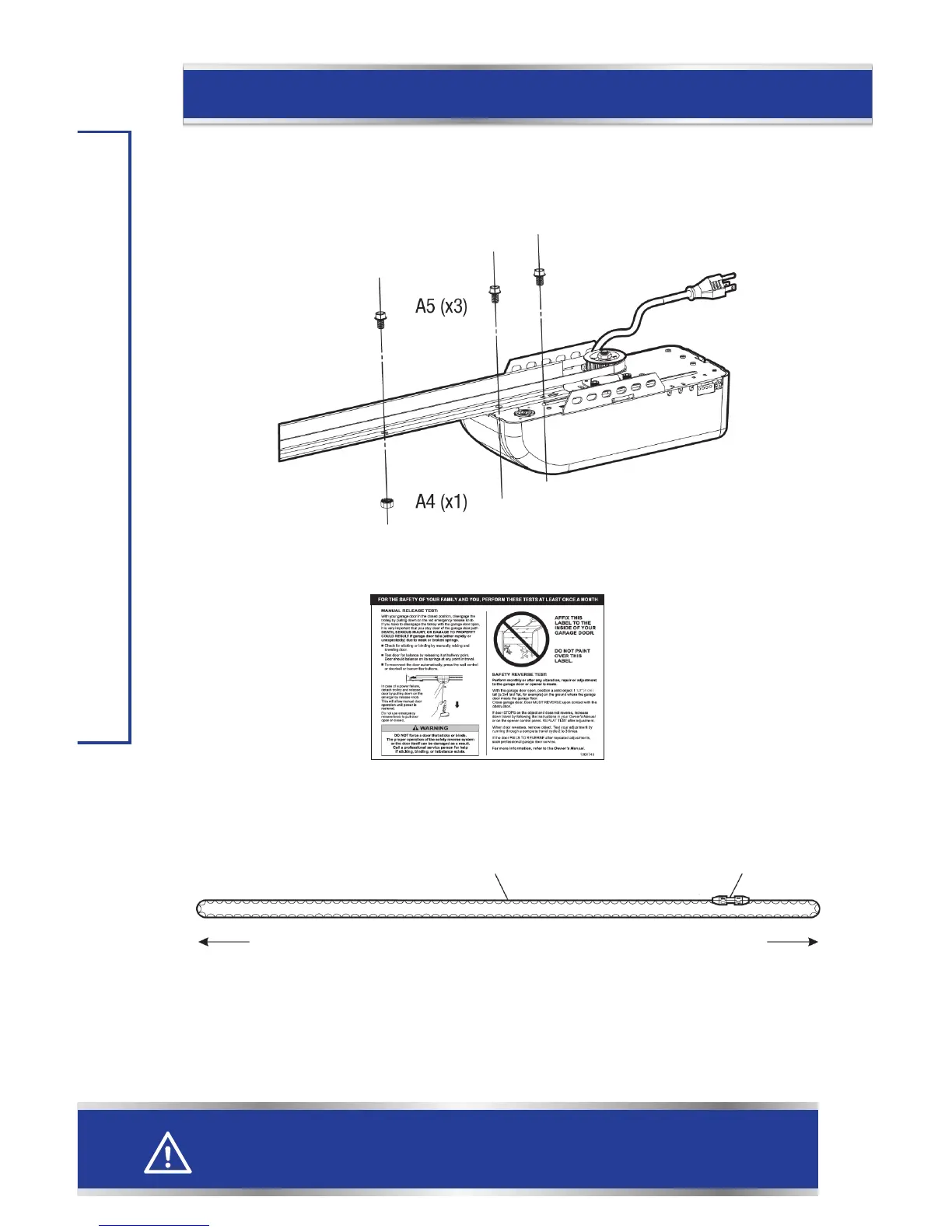

ASSEMBLE THE T-RAIL
Attach the T-Rail to the Opener
Raise the pulley end of the rail so the rail can sit on the motor unit properly. Attach the rail to the motor
unit by tightening 2 screws. Insert a bolt to the stop bolt hole and secure it with nut.
Apply the Safety Label
Prepare the Belt
Lay the belt down on the floor as shown. Do not twist the belt.
Belt Belt Traveller
To Motor Unit To Door
CAUTION
• Use only the specified bolts to attach the T-rail to the opener. Any other bolts will cause serious damage
to the opener.
To Next Page
