MasterCraft 046-0266-0 User Manual

13
headline bars
continuation tabs
notes
warnings

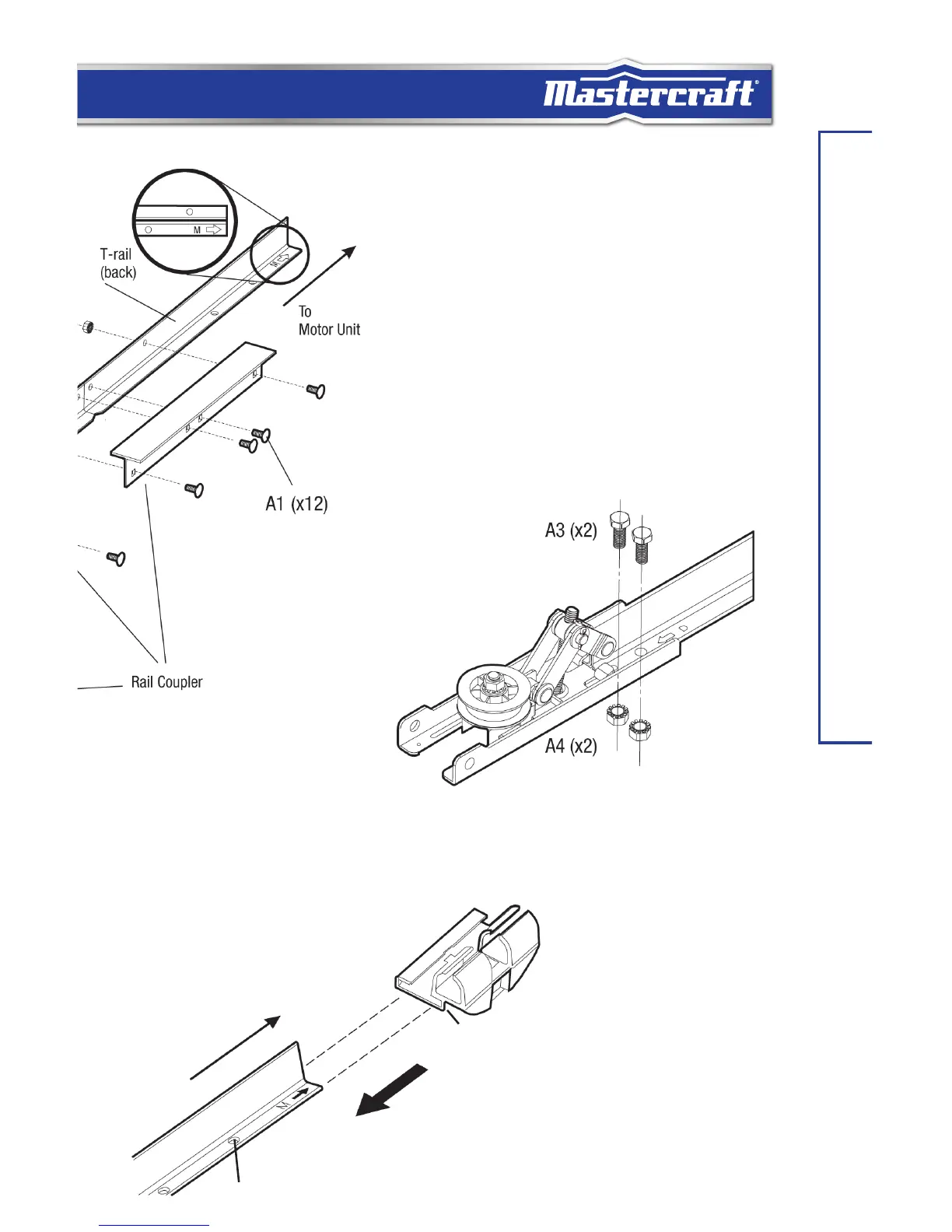

ASSEMBLE THE T-RAIL
headline bars
continuation tabs
notes
warnings
Attach the Tensioner Pulley Assembly
Attach the tensioner pulley assembly to the end of the front
rail with 2 nuts and bolts.
Align the tensioner pulley assembly
and rail.
Install the Trolley
Please note the arrow and “M” marking which
indicates this side to the motor unit.
Ensure this side of the trolley i. on the stop bolt
hole side of the rail.
Slide the trolley from the back of the
T-rail assembly.
Stop Bolt Hole.
To Motor Unit (Back)
