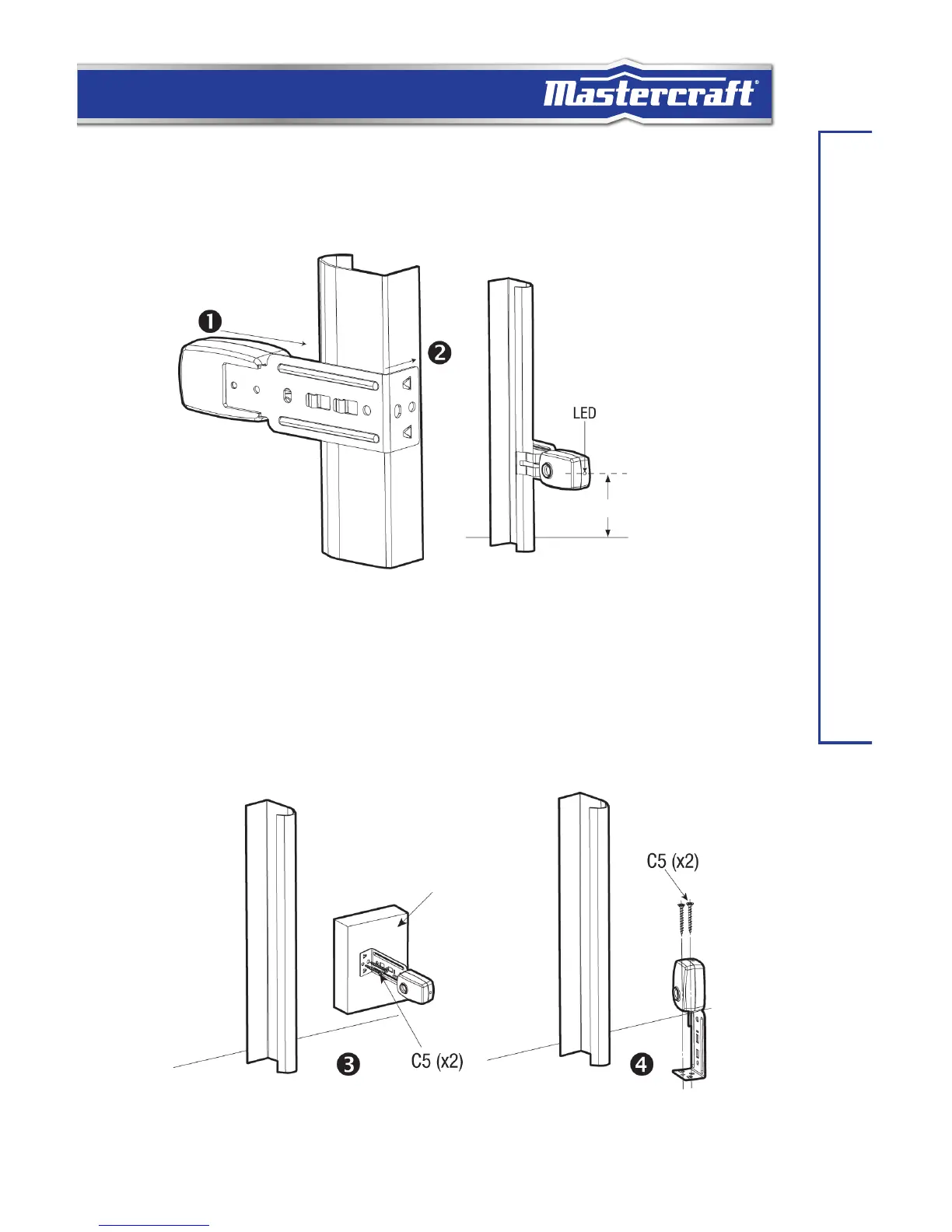

Mounting the Sensor on the Door Track
Clip the mounting bracket onto the garage door track. Ensure the sensor is mounted between 4" (10
cm) and 6" (15 cm) above the ground. Follow the same procedure to install the sensor on the other track
ensuring the sensors are facing each other.
4 to 6" (10 to 15 cm)
Mounting the Sensor on the Wall (Optional)
For wall mounting, use a wooden block to increase depth providing enough clearance for the sensor
beam to be unobstructed.
Mounting the Sensor on the Floor (Optional)
For floor mounting, use a wooden block to elevate the sensor brackets, if necessary. Ensure the sensor
is no higher than 6” (15 cm) above floor. Fasten the screws to the floor with concrete anchors (not
included).
Wood Block
