25
INSTALL THE DOOR ARMS
headline bars
continuation tabs
notes
warnings

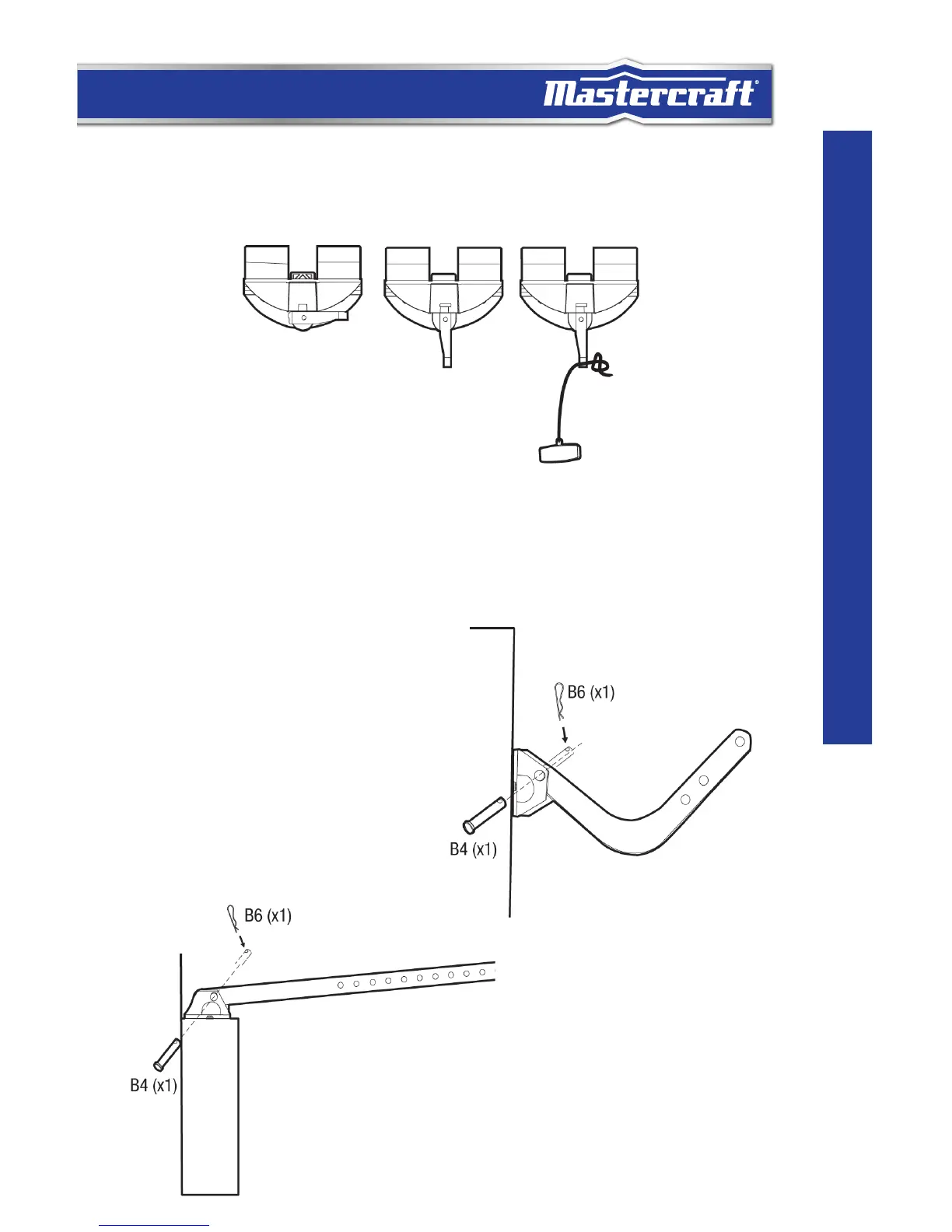

INSTALL THE DOOR ARMS
Attach Emergency Release Rope
Engaged Released
Thread the red rope through the hole in the trolley release handle and tie an over-hand knot. Leave the
trolley release lever in the released position until further testing is completed.
Connect the Door Arm to Door Bracket
Sectional Door
Connect the curved door arm to the door bracket with
clevis pin and hitch
One-piece Jamb Door
Connect the straight arm to the door
bracket with clevis pin and hitch pin.
