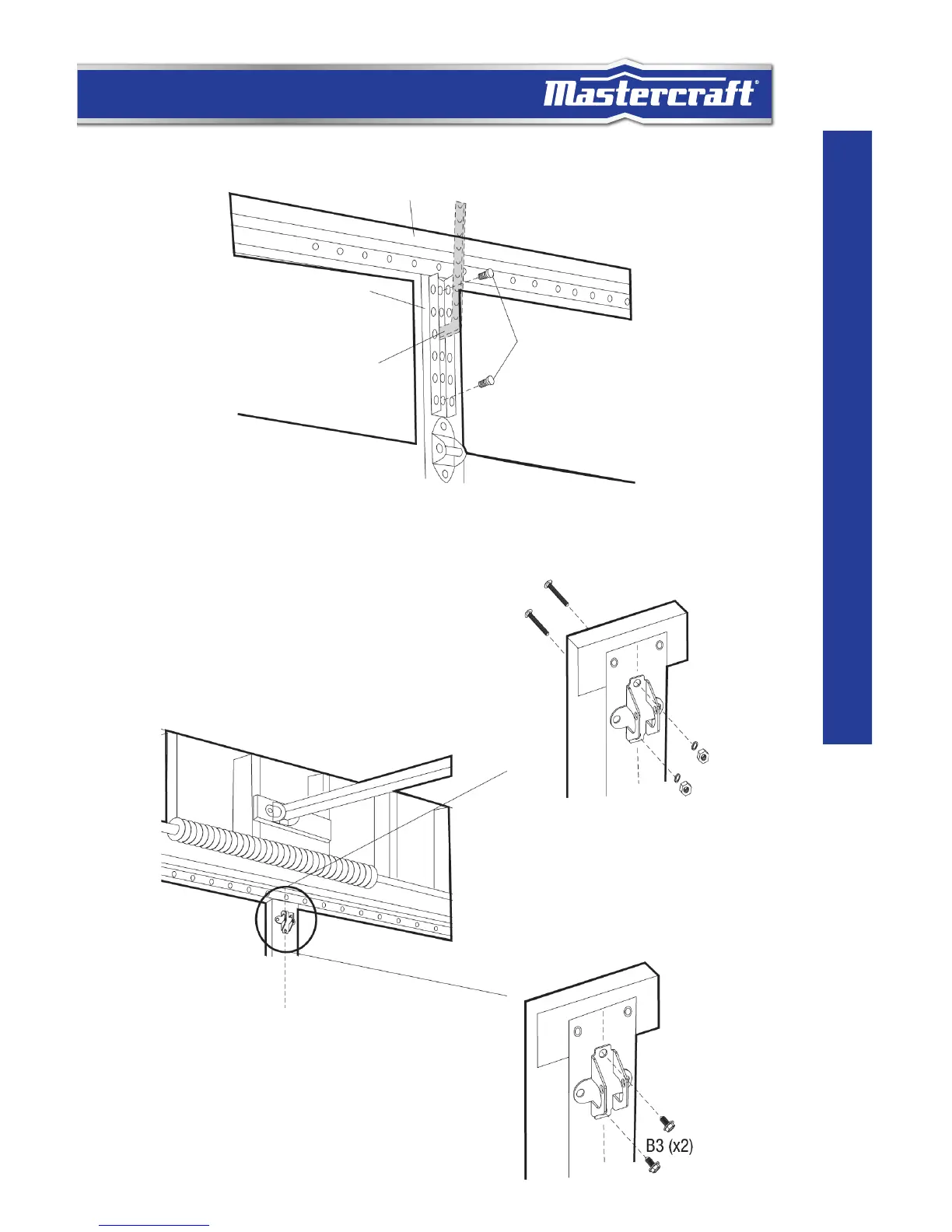

INSTALL THE DOOR BRACKET
Sectional Metal Doors
Align the door bracket on the centreline 2 to 4" (5 to 10 cm)
below the top edge of the door, or directly below any door
structural support. Drill two 3/16" (5 mm) pilot holes.
Use 2 self-threading screws to secure the door bracket.
Sectional Wood Doors
For wood doors, drill 5/16" (8 mm) holes through the door
and secure bracket with 5/16 x 2" (8 x 50 mm) carriage
bolts, lock washers and nuts (not included).
Door arm connects directly
to vertical reinforcement
Top of Door
Door Bracket
Location
Hardware
(not included)
Bolt 5/16 x 2" (8 x 50 mm)
(not included)
