19
EN / SunMaster CS15TL RP / CS20TL RP / CS30TL RP
8 DISPLAY
The SunMaster CS is fitted with a multi-lingual graphic
display allowing to view operational data and access all
setting parameters. It also provides access to plant data
and StringMaster Pro measurements when connected in the
installation.
8.1 BUTTONS
The CS inverter dislay has six buttons and a two-colour LED,
refer to figure 8-1.

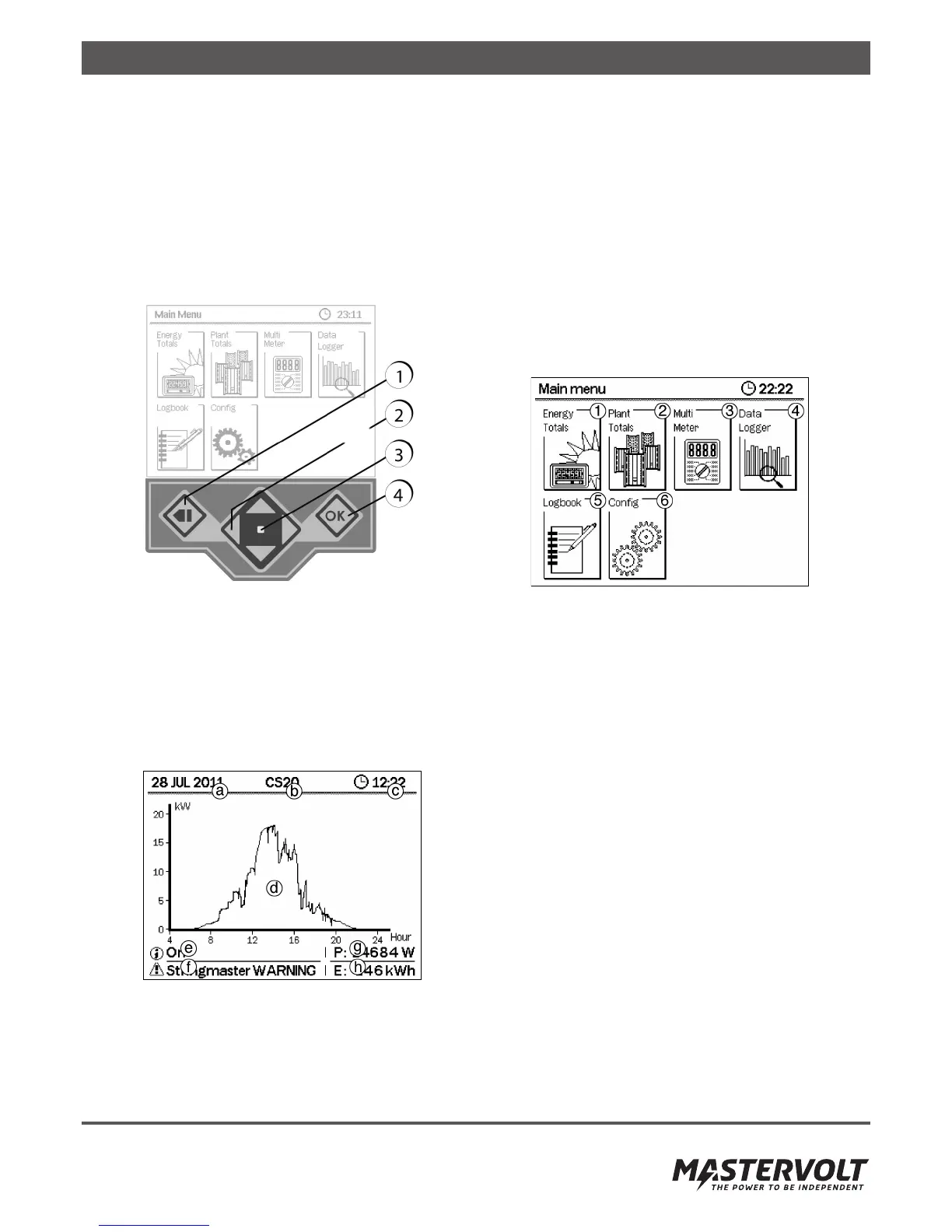

Figure 8-1: Display, buttons and LED
8.2 THE HOME SCREEN
The default screen shown in the display is the Home Screen.
It is presented in figure 8-2. If no buttons have been pushed
for some time, the inverter automatically returns to this
screen. The Home Screen shows a summary of the actual
inverter status, warning and error messages and additional
information if available.
Figure 8-2: Home screen
a. Current date
b. Inverter ID
c. Current time
d. Today’s power generation
e. Inverter status, error messages and warnings
f. StringMaster status and messages or Plant
Totals information
g. Current output power
h. Energy generated today
In case an alarm occurs, it will appear on the screen.
8.3 MAIN MENU
Pushing the BACK button allows to switch back and forth
between the Home Screen and the Main Menu. The Main
Menu, shown in figure 8-3, is the starting point to access all
inverter information and settings.
Figure 8-3: Main menu
The Main Menu shows 6 icons. Select one of the icons using
the Navigation buttons and press OK to enter one of the
following menus:
1. Energy Totals. Total power generated since
first commissioning.
2. Plant Totals. Actual measurements and status info of all
inverters connected in the PV plant.
3. Multi Meter. Detailed measurements of this inverter and
the connected StringMaster.
4. Data Logger. History of power and energy generated by
this inverter.
5. Logbook. History of error and warning messages
for this inverter.
6. Config. Access to the settings menu.
The BACK button has the display return to the
Home Screen
8.4 ENERGY TOTALS
The Energy Totals screen (see figure 8-4) shows the total
power generated by this inverter since its commissioning
to date, the related financial savings and the CO
2
emissions
that have been avoided with this renewable energy source.
