1 GENERAL INFORMATION
1.1 PRODUCT DESCRIPTION
The SunMaster CS15TL, CS20TL and CS30TL, further
referred to as “SunMaster CS” or “CS inverter” are grid
connected solar inverters. This inverter type is used to
convert photovoltaic power and feed this into a three phase
grid. The CS inverter is not suitable for stand-alone use
(i.e. use without utility grid).
1.2 USE OF THIS MANUAL
Copyright © 2013 Mastervolt. All rights reserved.
Reproduction, transfer, distribution or storage of part or all of
the contents in this document in any form without the prior
written permission of Mastervolt is prohibited.
This manual serves as a guideline for the safe and effective
use and installation of the SunMaster CS:
• For the installer this manual gives directions for the
installation, operation and commissioning.
• For the end user, this manual gives directions for the
operation, maintenance and possible correction of minor
malfunctions of the CS inverter.
• Every person who works with the apparatus should be
familiar with the contents of this manual, and must
carefully follow the instructions contained herein.
• Store the manual in an accessible place.
1.3 VALIDITY OF THIS MANUAL
This manual is valid for the following models:
Part no Model
131210150 SunMaster CS15TL RP
131210200 SunMaster CS20TL RP
131210300 SunMaster CS30TL RP
All the specifications, provisions and instructions contained
in this manual apply solely to the Mastervolt-delivered stand-
ard version of the CS inverter.
1.4 SCOPE OF GUARANTEE
Mastervolt assures the product guarantee of the SunMaster
CS during five years after your purchase, on the condition
that all instructions and warnings given in this manual are
taken into account during installation and operation.
Among other things, this means that installation is carried
out by a qualified electrician, that installation and mainte-
nance are executed according to the stated instructions and
correct working sequence, and that no changes or repairs
may have been performed on the CS inverter other than by
Mastervolt.
The warranty is limited to the costs of repair and/or replace-
ment of the product by Mastervolt only. Costs for installation
labour or shipping of the defective parts are not covered by
this warranty.
For making an appeal on warranty you can contact your
supplier directly, stating your complaint, application, date of
purchase and part number / serial number.
1.5 LIABILITY
Mastervolt accepts no liability for:
• consequential damage due to use of the SunMaster CS;
• possible errors in the manuals and the results thereof.
1.6 CHANGES TO THE INVERTER
Changes to the SunMaster CS hardware are not allowed.
Changes to the SunMaster CS software/ firmware, except
for the settings made available to the user or installer, are not
allowed.
1.7 IDENTIFICATION LABEL

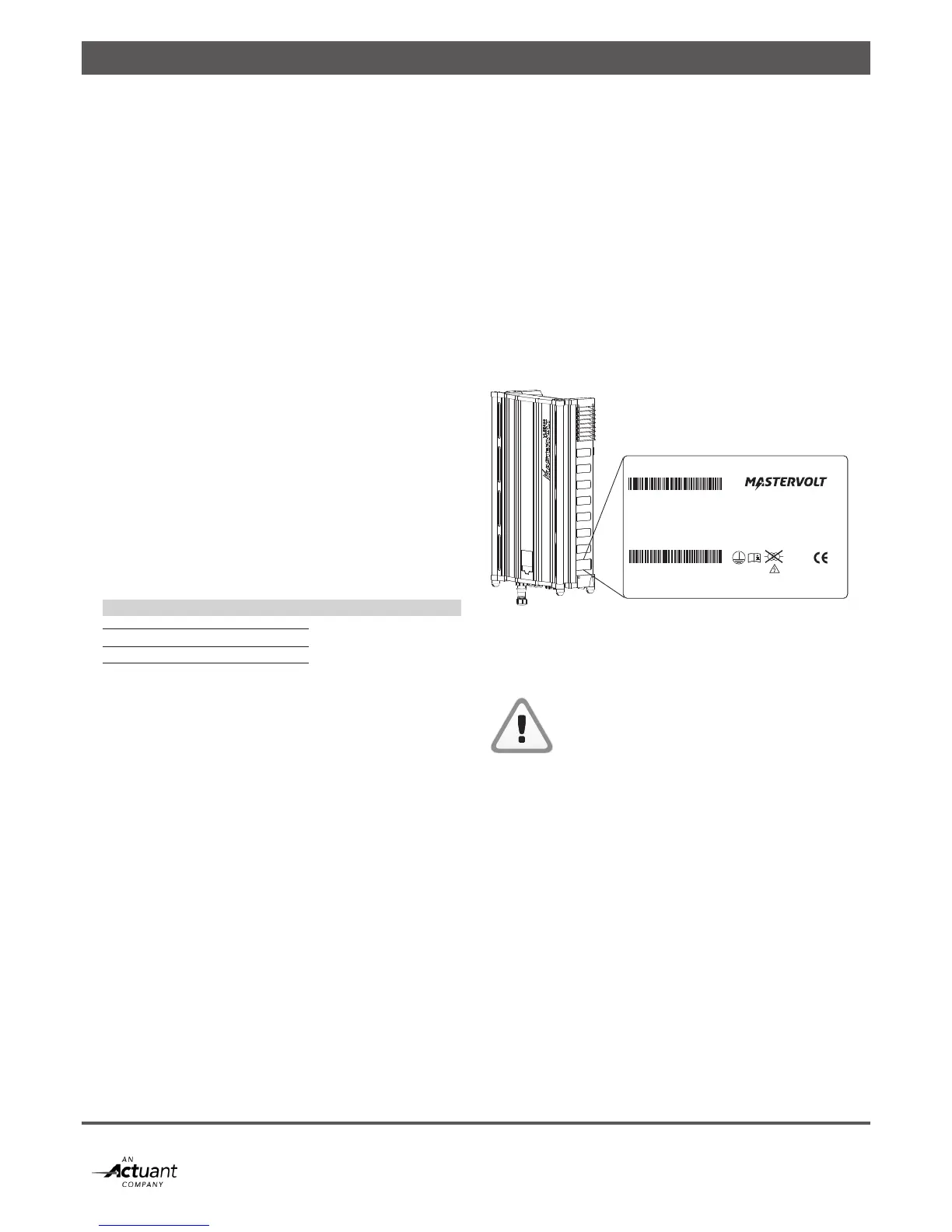

Figure 1-1
The identification label is positioned at the right side of the
CS inverter, see figure 1-1.
CAUTION!
Never remove the identification label.
06
|
EN / SunMaster CS15TL RP / CS20TL RP / CS30TL RP
Part no : 131210200
Type : CS20TL RP
Input : 200-980Vdc, 1000Vdc Max
: MPP 350-800Vdc, 2x30A
Output : 400/230Vac, 3ph/N/PE, 50/60Hz,
: 32Amax, 20kVAnom
: cos φ 0.85 ind - 0.85 cap
VDE 0126-1-1
VDE AR-N-4105
ENEL GCR Ed. 2.1
G59/2-1
RD1663
SYNERGRID C10-11
Serial no: X402-0007
Made in PRC
IP65
CAT III 1000V
