20
|
EN / SunMaster CS15TL RP / CS20TL RP / CS30TL RP

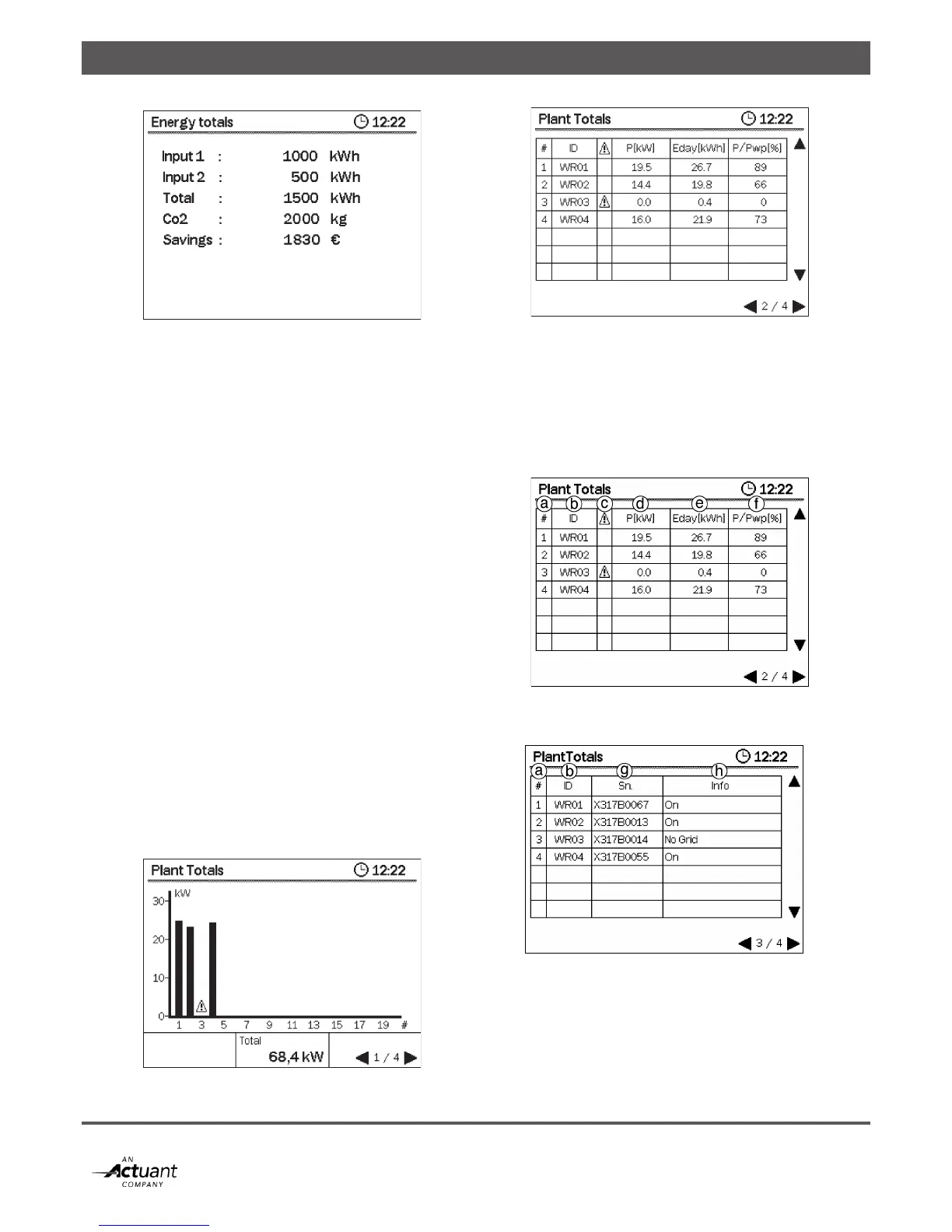

Figure 8-4: Energy totals
The BACK button has the display return to the Main Menu.
8.5 PLANT TOTALS
If multiple CS inverters have been connected to each other
via RS485 cables, the Plant Totals function screen will
collect information from all connected inverters and show
a summary on the display. Refer to section 7.6 for more
information on how to set up the PV plant with Plant Totals
functionality. The Plant Totals function is split into 4 different
screens, shown in figures below.
8.5.1 Plant Totals – Overview
The Plant Totals (PT) Overview screen shows a bar graph
summarizing the performance of the entire PV plant. Each
bar represents the actual* AC power output of one inverter.
In case a particular inverter has an error, an exclamation
symbol is shown instead of the power bar.
See figure 8-5. Below each bar, each inverter is referenced
with a number. This number corresponds with the inverter
number used in the next Plant Totals screens.
In the bottom of the screen, the actual* sum of all power
generated by the plant is shown. Pushing the BACK
button has the display return to the Home Screen.
Pushing the LEFT or RIGHT navigation button will scroll to
the previous/next Plant Totals screen.
* Due to delays in the communication line and a limited
update frequency, the power figures shown in the plant to-
tals screens may differ from the information presented
on that particular inverter.
Figure 8-5: Plant Totals screens 1
Figure 8-6: Plant Totals screens 2
8.5.2 Plant Totals – Inverter Information
The performance of each inverter in the plant is further
detailed in the Inverter Info screens. By using the LEFT and
RIGHT Navigation buttons, the information table can be
shifted to the left or right. The following information is
available for each inverter:
Figure 8-7: Plant Totals Info 1
Figure 8-8: Plant Totals Info 2
