Mastervolt CS15TL RP

38
|
EN / SunMaster CS15TL RP / CS20TL RP / CS30TL RP
SYSTEM INFORMATION
User interface
Diagnostics
Enclosure
External communication
MISCELLANEOUS
MasterBus powering Yes, if AC and/or DC is available
MasterBus languages English, Nederlands, Deutsch, Français, Castellano, Italiano, Norsk, Svenska, Suomi, Dansk *
* The number of menu languages may change without prior notice.
13.2 OUTLINE DRAWINGS

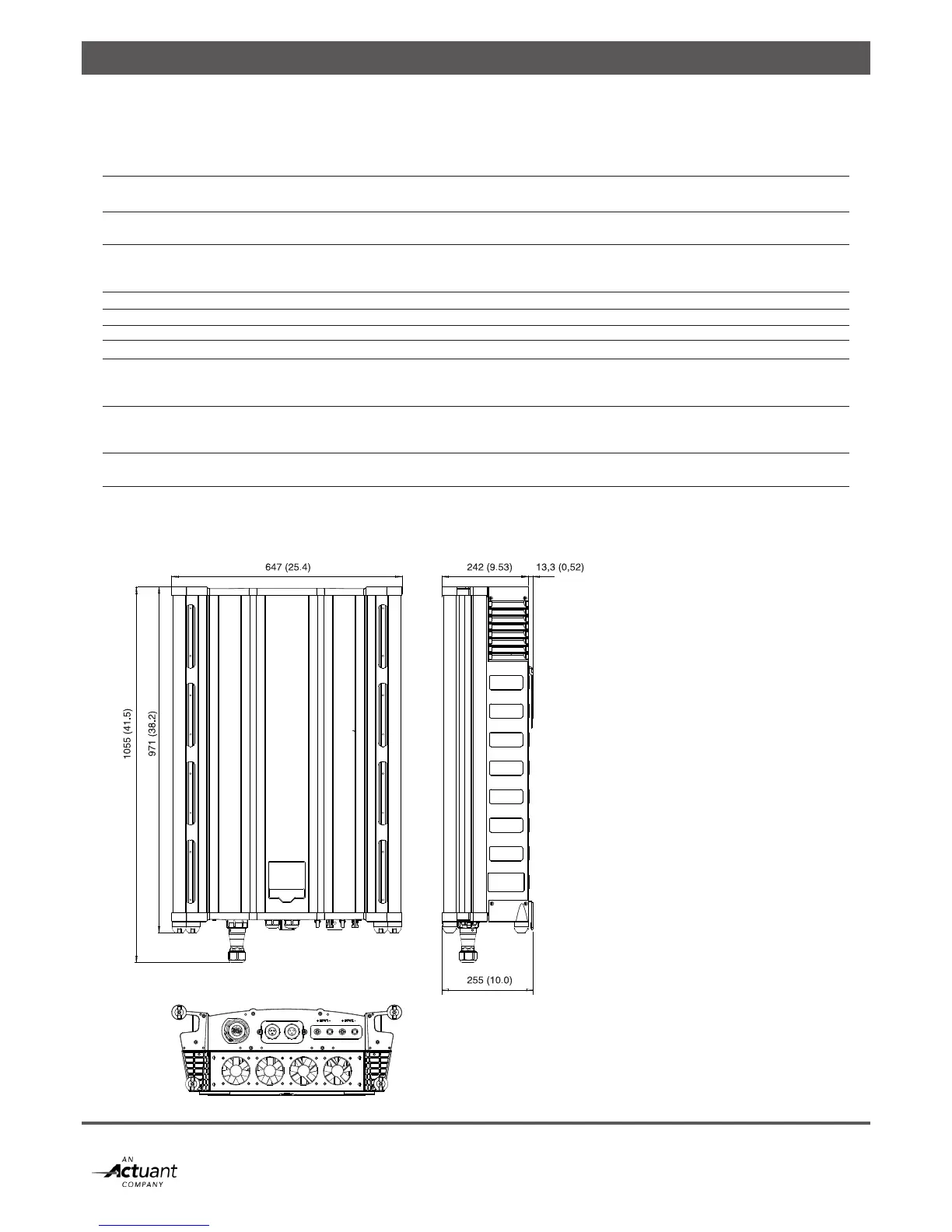

Figure 13-1:
Outline drawings of the CS inverter.
All dimensions are in mm (inch).
Cooling User replaceable fan bracket
String box option
Transformer option
Multi-language black-on-white graphical LCD display. Languages: English, Nederlands, Deutsch,
Français, Castellano, Italiano
• 10 years datalogger and real time clock
• 10 years diagnostic memory
Aluminium with powder coating.
Rubber foot stands are part of the enclosure.
Mounting bracket.
IP65 enclosure; Integrated DC load switch 2x1000V DC /30A; Integrated string fuses;
Integrated string current monitoring via Masterbus connection to inverter;
12 (2 x 6) string connections with 4 mm type connectors or glands.
3-phase transformer in IP54 enclosure; Cooling: natural convection; Transformation losses : max 2%
Weight 200 kg.
A: MasterBus stringbox and transformer interface with two connectors
B: MasterBus field service interface with two connectors
C: 2 RS485 connections for DataControl Professional, max. 20 inverters, 1000 m max. cable length
