MTS600 Instruction Manual
21
press [ESC].
l The maximum times of angle measurements that can be made is 10.
4.1.6 Outputting angle measurement data
MTS-600 can output the angle measurement data to the peripheral equipment such
as a computer .Before carrying out this function, you should connect MTS-600 and
the peripheral equipment using the serial communication cable, and set
communication parameters correctly. See also “10. Setting parameters of
instrument”.
l Default communication settings: RS232 interface ,8 data bit,1 stop bit, none
parity ,baud rate 9600.
① Sight the target point.
② In the second page of the angle measurement
mode, press [OUTP], the horizontal angle and the
vertical angle data displayed on the screen are output
to the peripheral equipment.

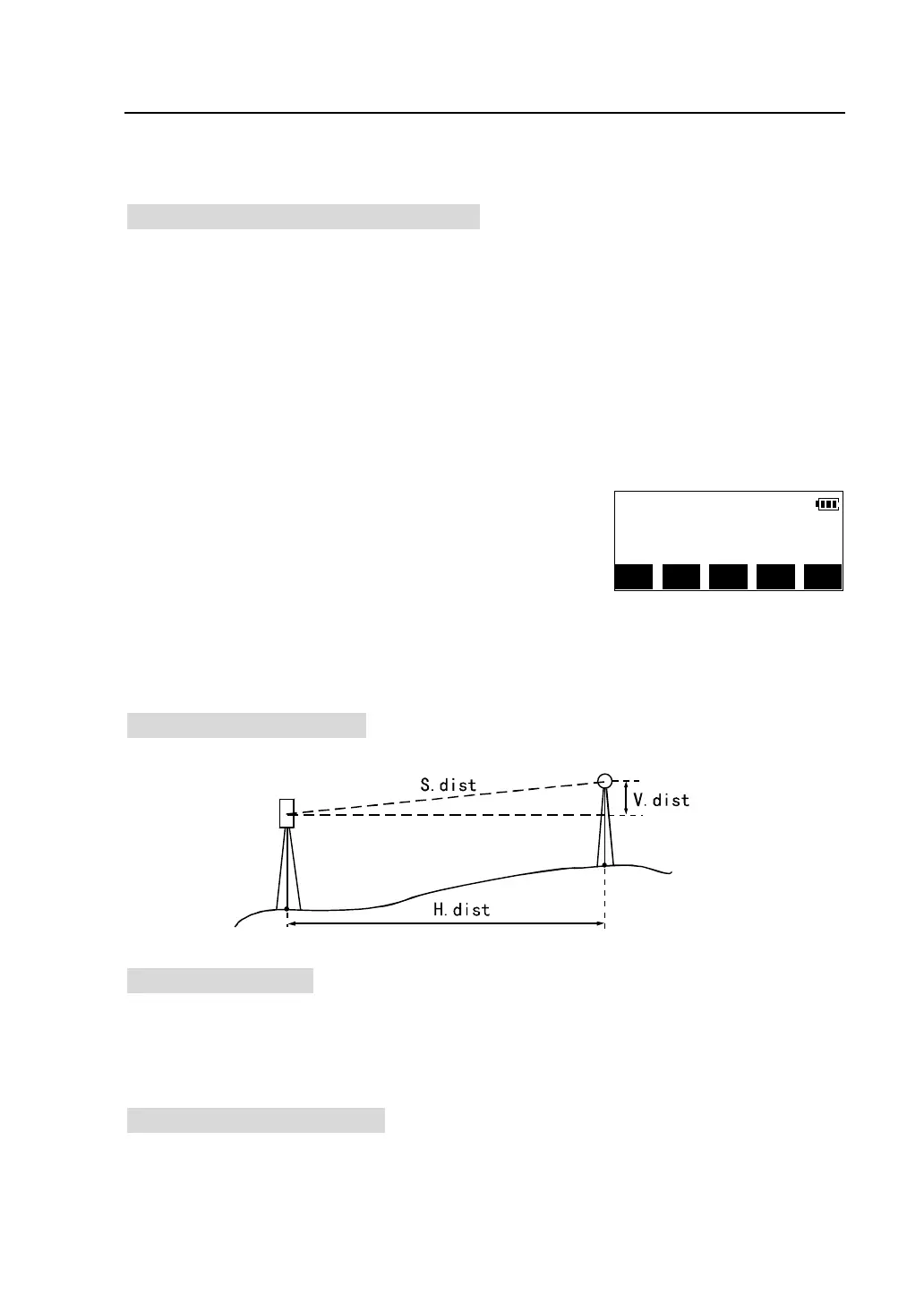

4.2 Distance measurement
4.2.1 EDM Settings
Complete the following EDM settings before the distance measurement：
l Atmospheric correction factor
l Prism constant correction value
l Distance measurement mode
Atmospheric correction factor
To perform higher accuracy measurements, it is necessary to find the atmospheric
correction factor from even more accurate temperature and pressure measurements
V.ang(Z) 92°55′39″
H.ang(R) 90°15′00″
P2
HOLE REP TILT OUTP >>
