17.4 Working with an rotary encoder 125
As described in Working with pulse start events (p. 123) the mvHYPERION features two HRTC's (PulseStart←-
Configuration0 and PulseStartConfiguration1), which also features a Rotary Decoder (p. 124).

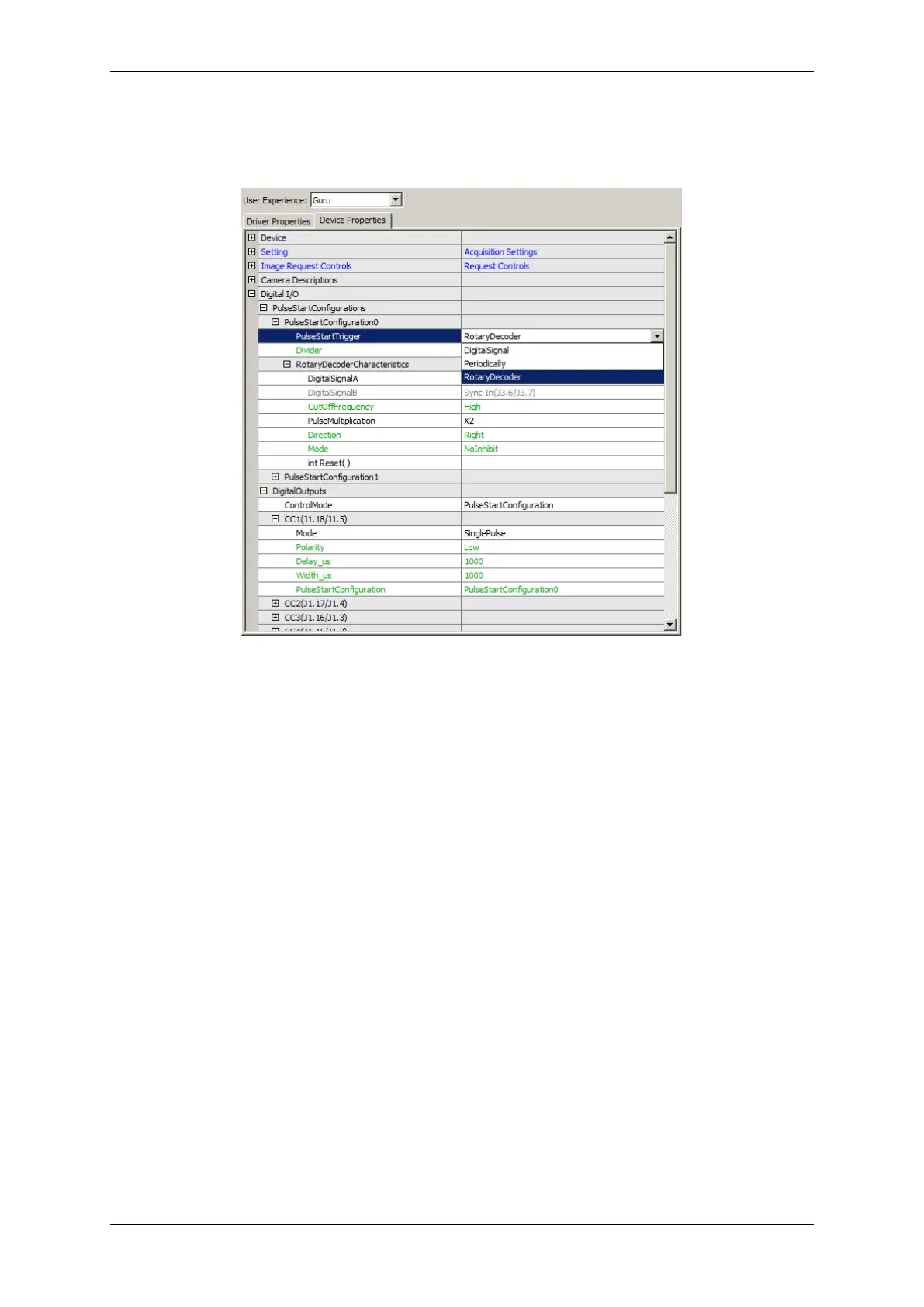

Figure 3: wxPropView - Selecting RotaryDecoder as PulseStartTrigger in PulseStartConfiguration0
The Rotary Decoder (p. 124) offers some parameters:
• DigitalSignalA (p. 125)
• DigitalSignalB (p. 125)
• PulseMultiplication (p. 126)
• Direction (p. 126)
• Mode (p. 126)
• int Reset() (p. 127)
17.4.1 DigitalSignalA
The first data line of the rotary encoder.
17.4.2 DigitalSignalB
The second data line of the rotary encoder.
MATRIX VISION GmbH
