7.3 HEART RATE HANDLEBAR REPLACEMENT
1) Remove the 4 screws holding the heart rate handlebar to the console mast being careful to support the handlebar (Figure A).
2) Carefully pull the wires from the console mast until the connectors are showing, and then disconnect the 2 wires from the handlebar and
remove the defective handlebar (Figure B).
3) Reconnect the 2 wires to the new heart rate handlebar (the wires are not side specific).
4) Carefully push the 2 wires back into the console mast, and attach the handlebar to the console mast using the 4 screws removed in Step 1.
5) Test the elliptical trainer for function as outlined in Section 7.21.

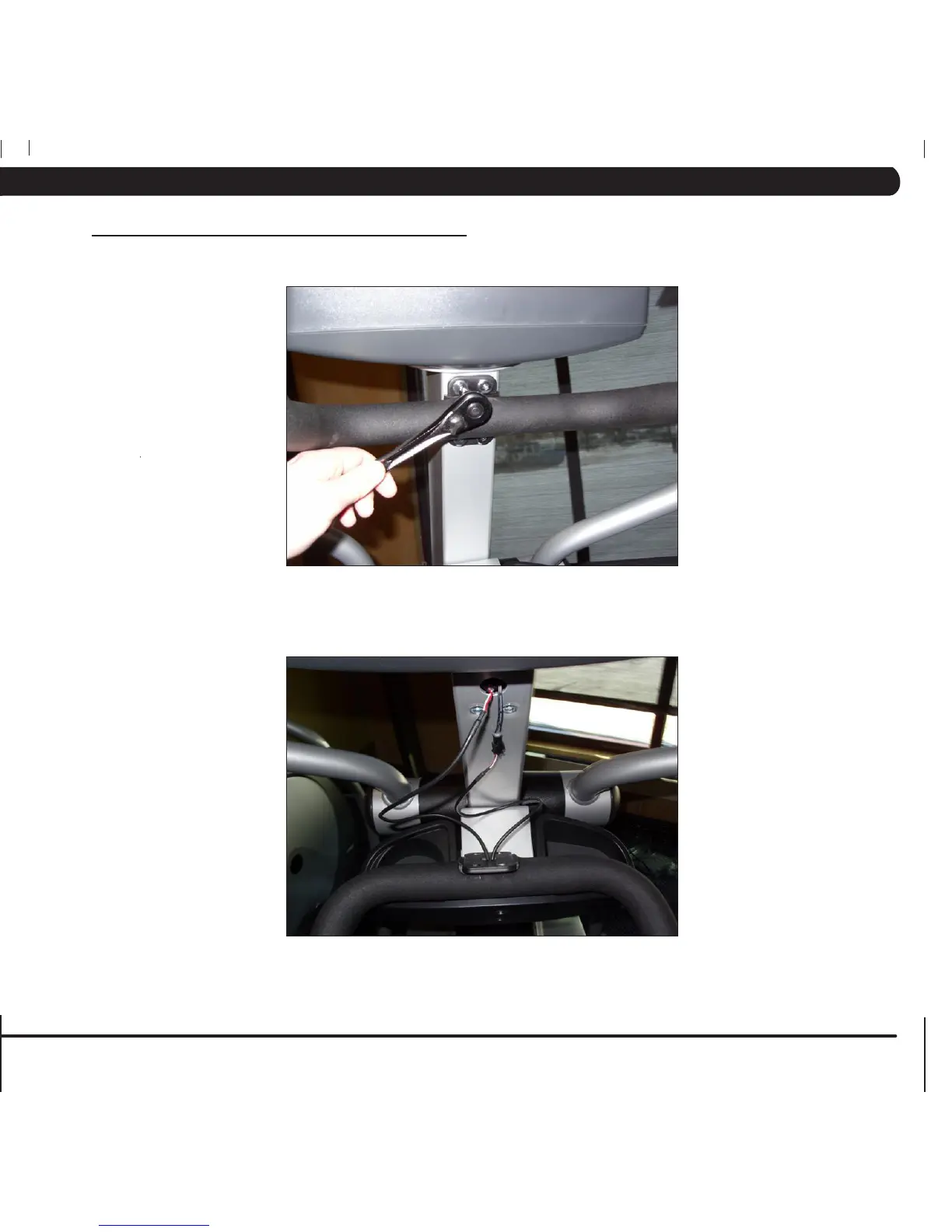

FIGURE A
FIGURE B
CHAPTER 7: PART REPLACEMENT GUIDE
