CHAPTER 7: PART REPLACEMENT GUIDE
7.4 HEART RATE GRIPS REPLACEMENT

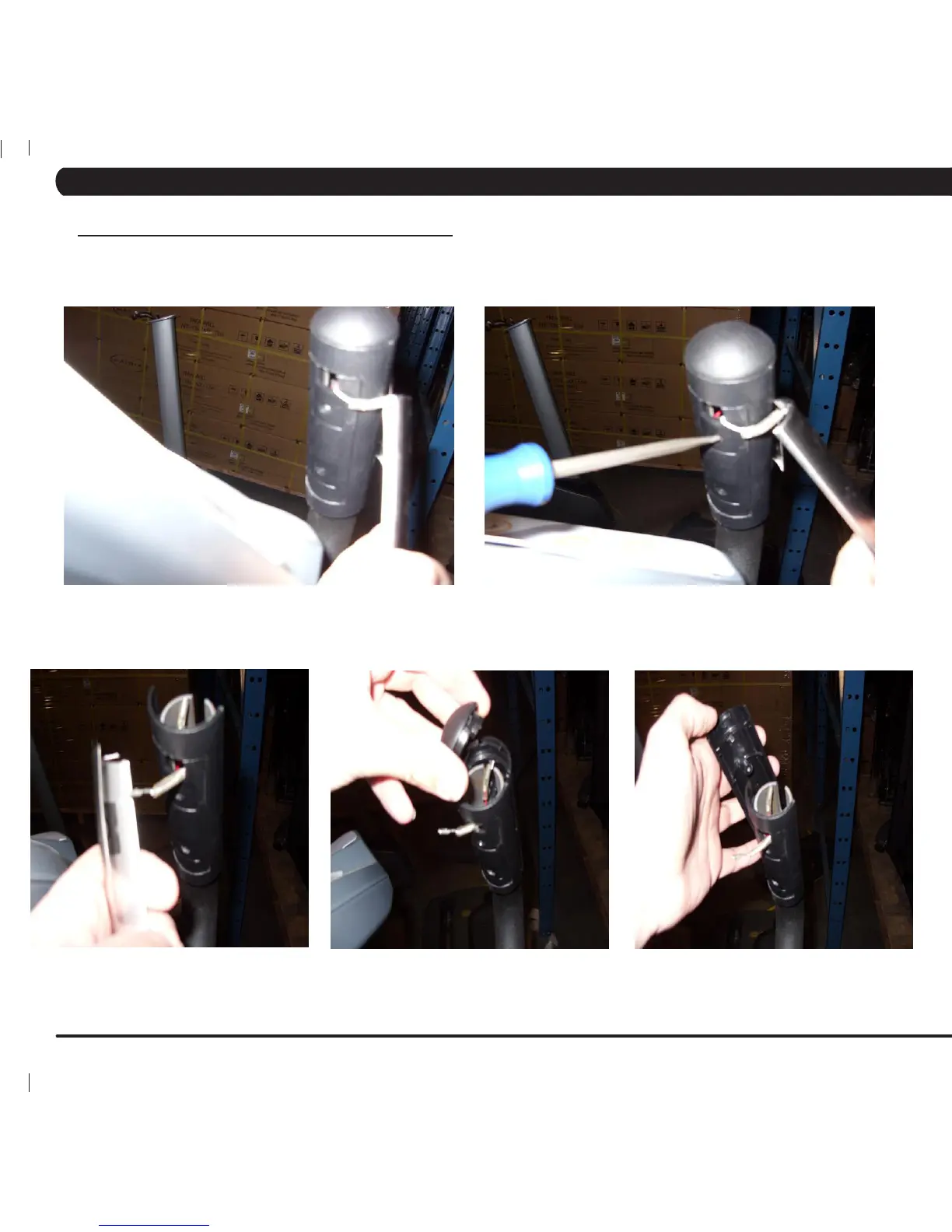

1) Using a flat screwdriver, pry the silver metal heart rate plate away from the plastic of the HR grip (Figure A).
2) Remove the 2 screws holding the HR grip together (Figure B). NOTE: You may need to remove the console to give access to the HR grip
screws.
3) Disconnect the HR Grip wire and remove the cap and the two halves of the HR grip (Figures C, D, & E).
4)ReverseSteps1-3toinstallnewHRgrips.
5) Test the elliptical trainer for function as outlined in Section 7.21.
FIGURE A FIGURE B
FIGURE C FIGURE D FIGURE E
