7.19 ROLLER TRACK REPLACEMENT
1)FollowSteps1-8fromSection7.17toremovethepedalarm.
2) Remove the 8 screws holding down the covering plate and remove it (Figure A).
3) Remove the 12 screws holding down the roller track and remove it (Figure B).
4)ReverseSteps1-3toinstallanewrollertrack.
5) Test the elliptical trainer for function as outlined in Section 7.21.

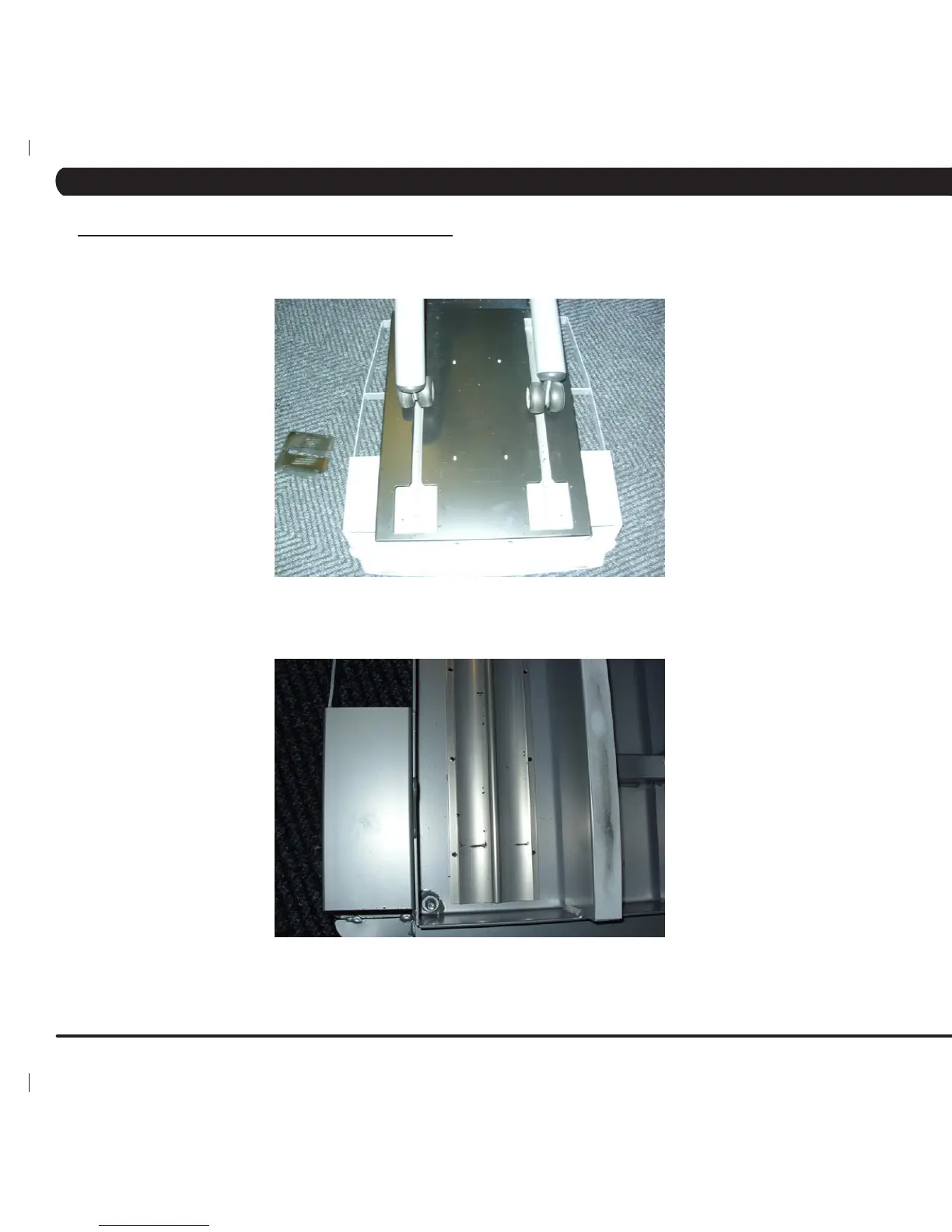

FIGURE A
FIGURE B
