Matrix E1X Service Manual

49
7.18 REAR ROLLER REPLACEMENT
CHAPTER 7: PART REPLACEMENT GUIDE
1)FollowSteps1-8fromSection7.17toremovethepedalarm.

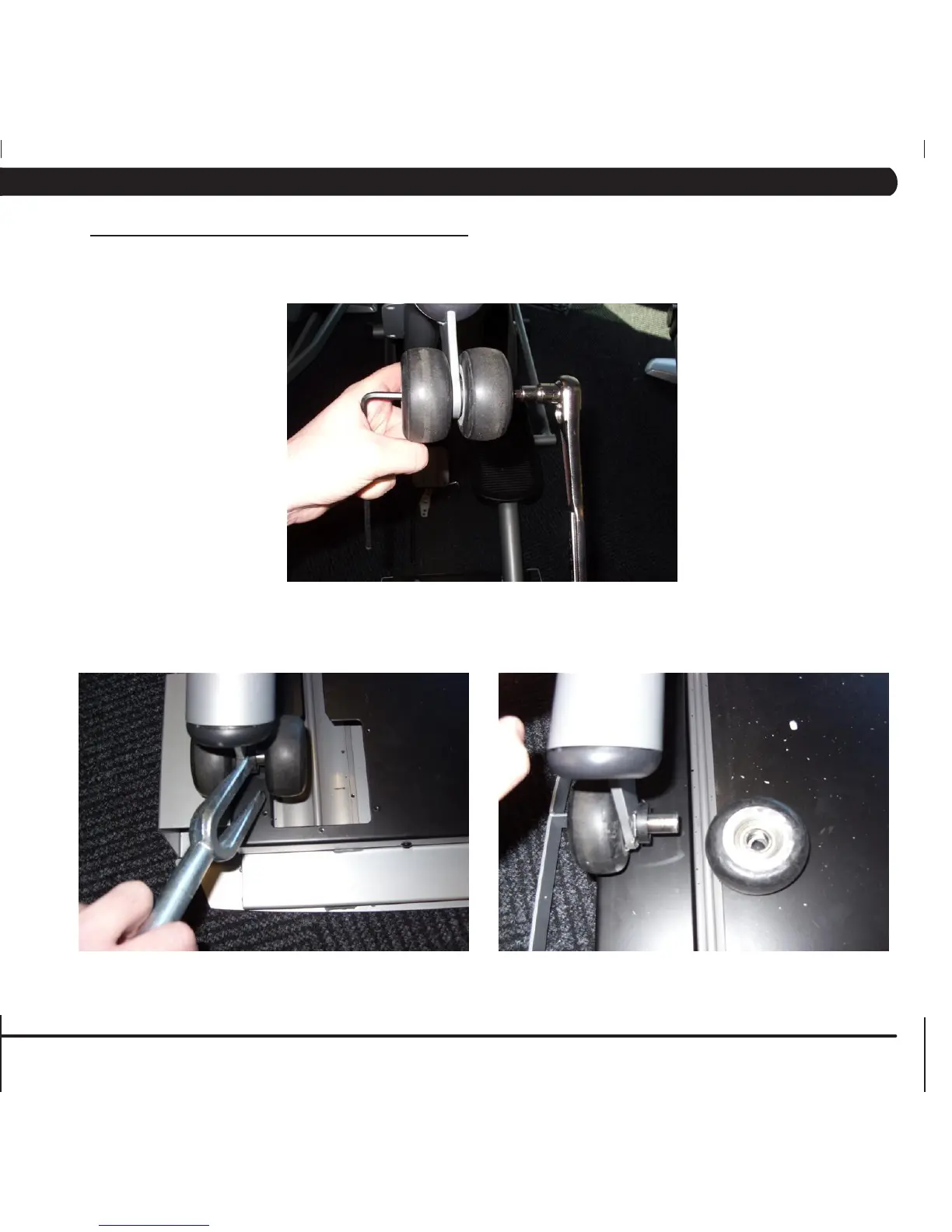

2) Remove the screw holding the rear roller to the pedal arm (Figure A).
3) Press a large tie rod fork between the 2 rear rollers forcing them off of the pedal arm (Figures B & C).
4)ReverseSteps1-2toinstallnewrearrollers.
5) Test the elliptical trainer for function as outlined in Section 7.21.
FIGURE A
FIGURE B FIGURE C
