Matrix E1X Service Manual

33

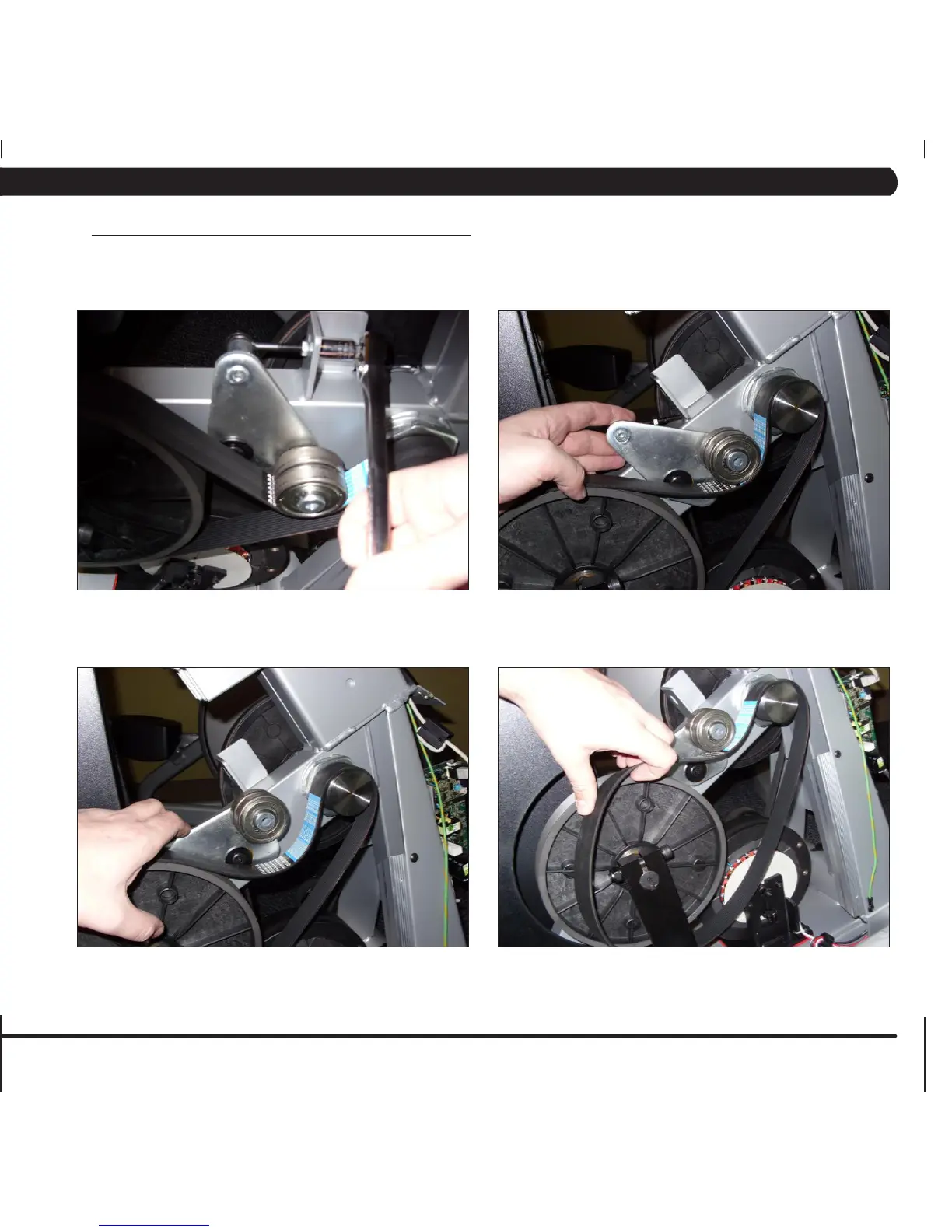

7.8 DRIVE BELT REPLACEMENT
CHAPTER 7: PART REPLACEMENT GUIDE
1) Remove the front shrouds as outlined in Section 7.1.
2) Remove the idler tension eye bolt nut (Figure A).
3) Once the eye bolt nut is removed, it will allow you to pivot the idler, loosening tension on the belt (Figures B & C).
4) Now that tension has been loosened, remove the drive belt (Figure D).
5)ReverseSteps1-4toreinstallanewbelt.
6) Tighten the idler eye bolt so that the drive belt is tensioned to 120 ft. / lbs for a used belt and 150 ft. / lbs for a new belt.
7) Test the elliptical trainer for function as outlined in Section 7.21.
FIGURE A
FIGURE B
FIGURE C FIGURE D
