7.13 LEVEL BUTTON ASSEMBLY REPLACEMENT
CHAPTER 7: PART REPLACEMENT GUIDE

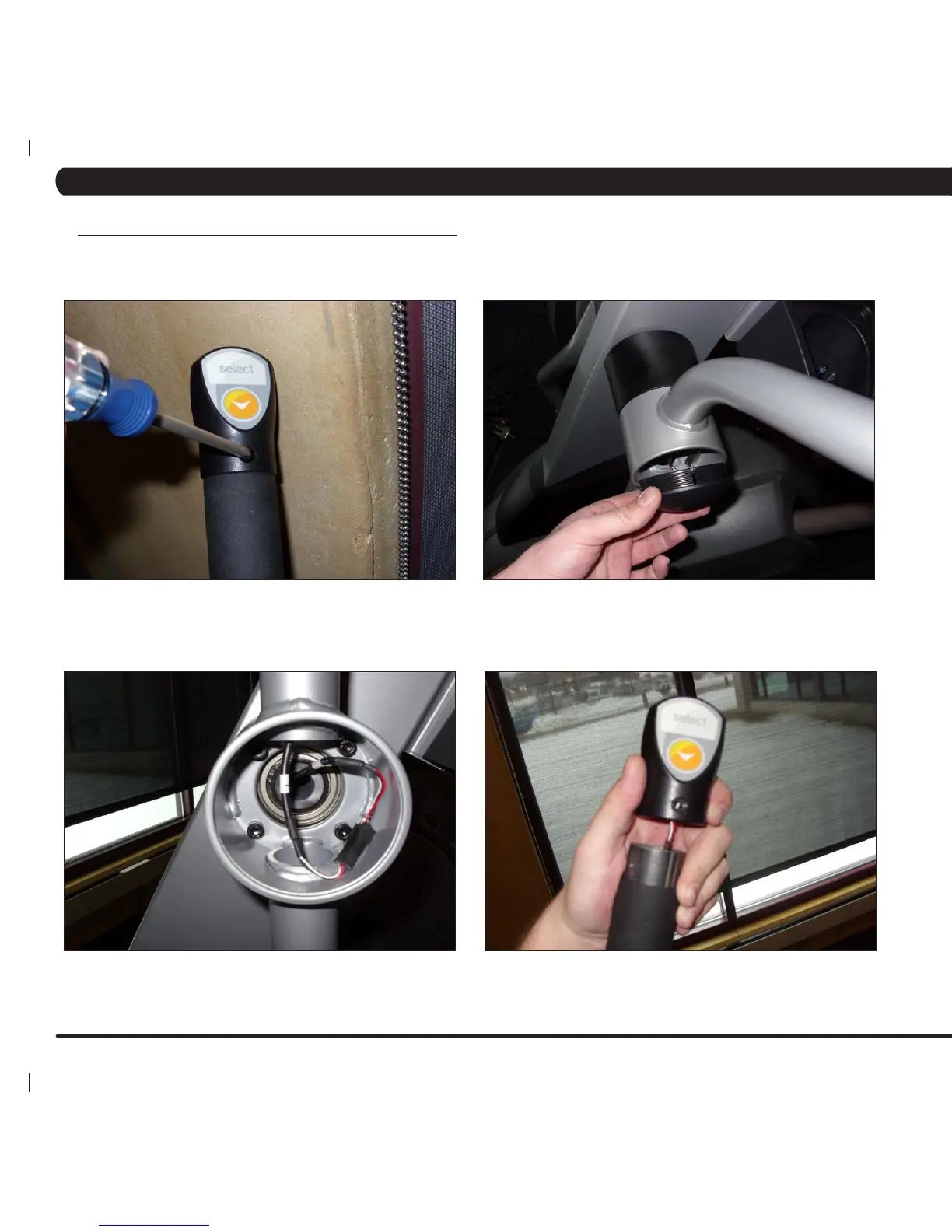

1) Remove the 2 screws holding the level button assembly to the dual action handlebar (Figure A).
2) Remove the cap on the pivot of the dual action handlebar (Figure B).
3) Disconnect the level button wire within the pivot tube (Figure C).
4) Carefully pull the wire up through the dual action handlebar and remove the defective level button assembly (Figure D).
5)ReverseSteps1-4toinstallanewlevelbuttonassembly.
6) Test the elliptical trainer for function as outlined in Section 7.21.
FIGURE A FIGURE B
FIGURE C FIGURE D
