7.15 PEDAL REPLACEMENT
CHAPTER 7: PART REPLACEMENT GUIDE
1) Remove the 4 screws holding the link arm assembly to the pedal arm (Figure A).
2) Remove the 3 screws holding the pedal assembly to the pedal arm (Figure B). Remove the hardware and 3 hole plate.
3) Slide the link arm assembly off of the pedal arm (Figure C). NOTE: Make sure to notice the order of the washers for reinstallation (wavy,
Teflon, pedal assembly, Teflon, 3 hole plate, screws).
4) Peel up the pedal foot pad, and remove the 4 screws holding the pedal to the link arm (Figure D).
5)ReverseSteps1-4toinstallanewpedal.
6) Test the elliptical trainer for function as outlined in Section 7.21.

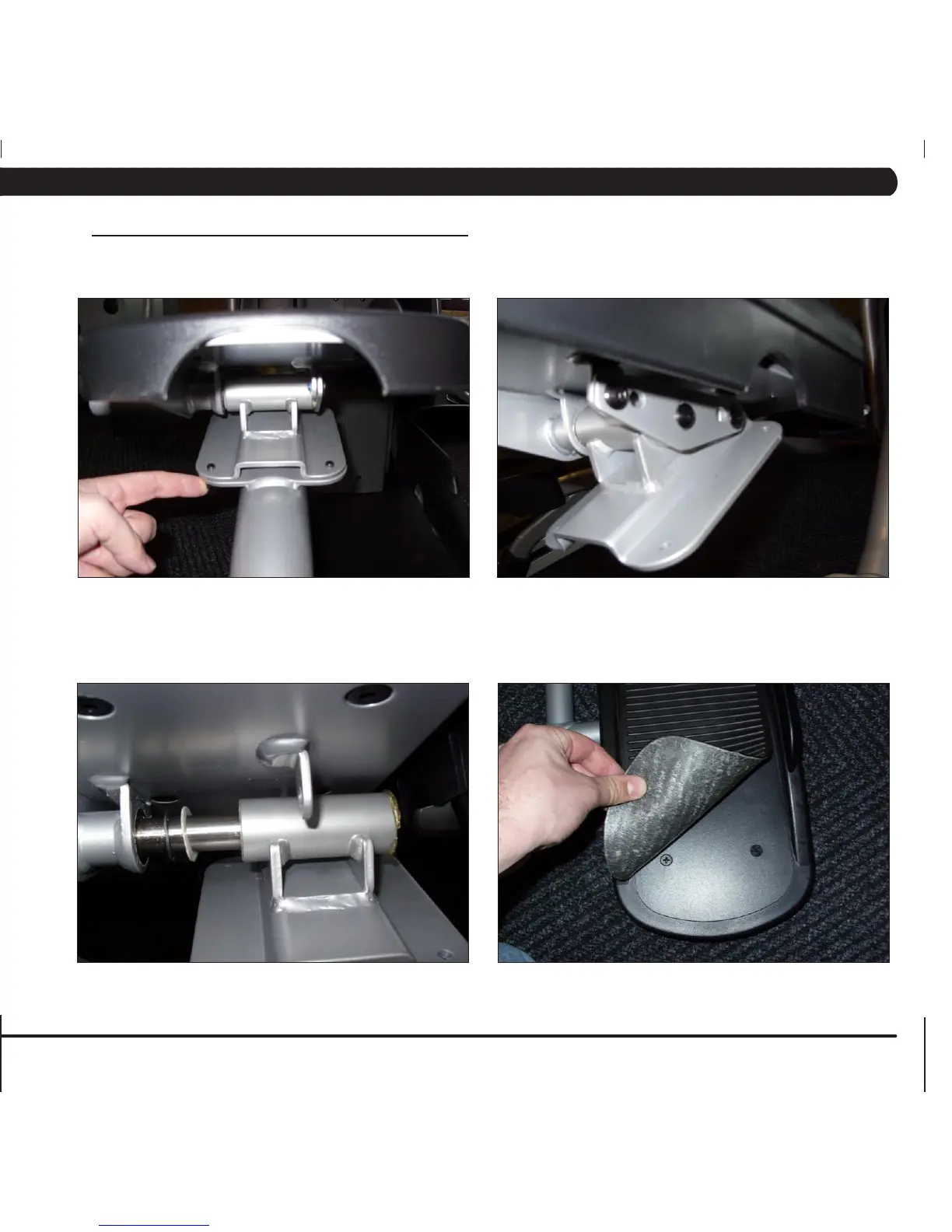

FIGURE A FIGURE B
FIGURE C FIGURE D
