Matrix E1X Service Manual

42

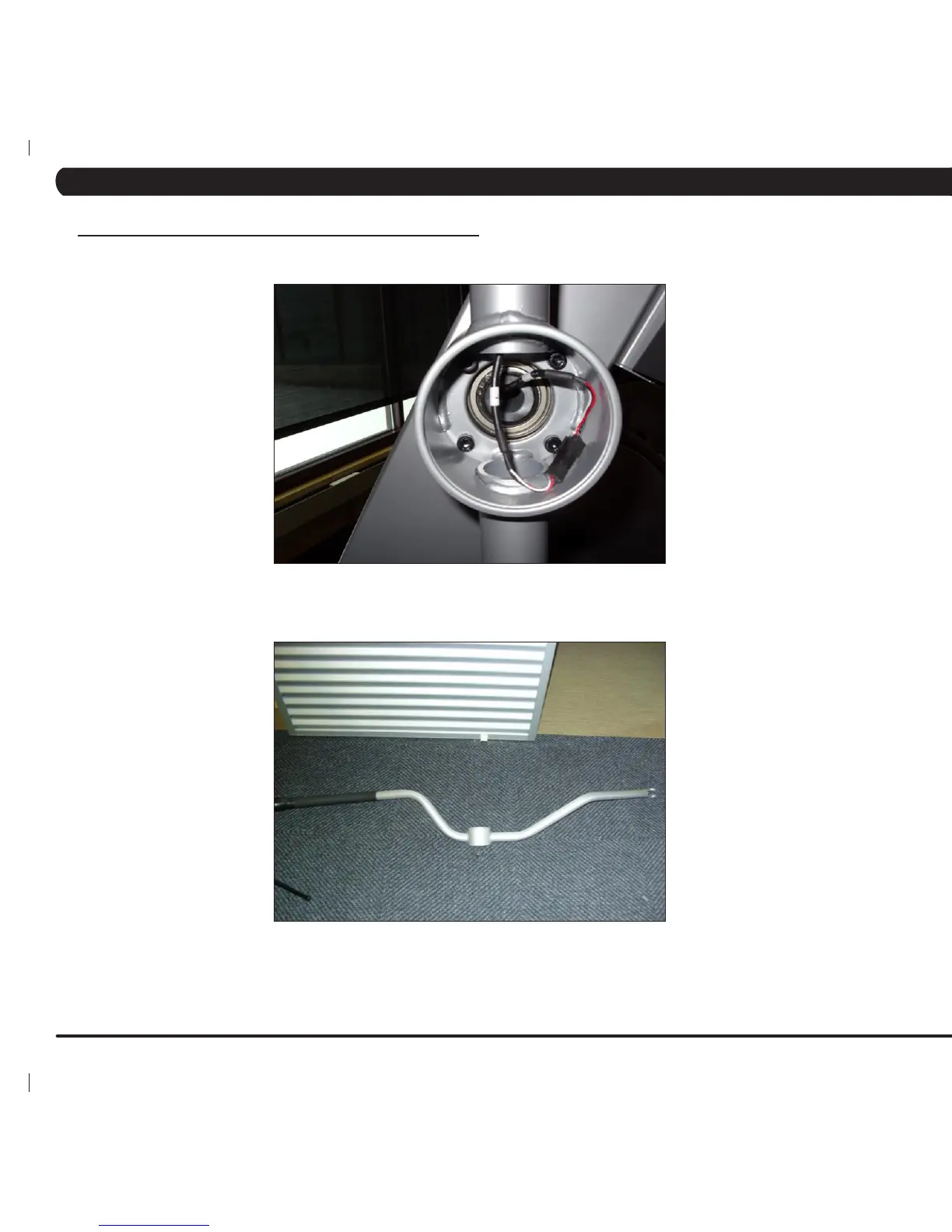

FIGURE E
FIGURE F
4) Remove the 4 screws holding the dual action handlebar to the pivot tube (Figure E).
5) You can now remove the dual action handlebar (Figure F).
6)ReverseSteps1-5toinstallanewdualactionhandlebar.NOTE: When reinstalling the dual action handlebar, tighten the 4 screws removed
inStep5to34N-mtorque.
7) Test the elliptical trainer for function as outlined in Section 7.21.
7.14 DUAL ACTION HANDLEBAR REPLACEMENT - CONTINUED
CHAPTER 7: PART REPLACEMENT GUIDE
