Matrix E1X Service Manual

48

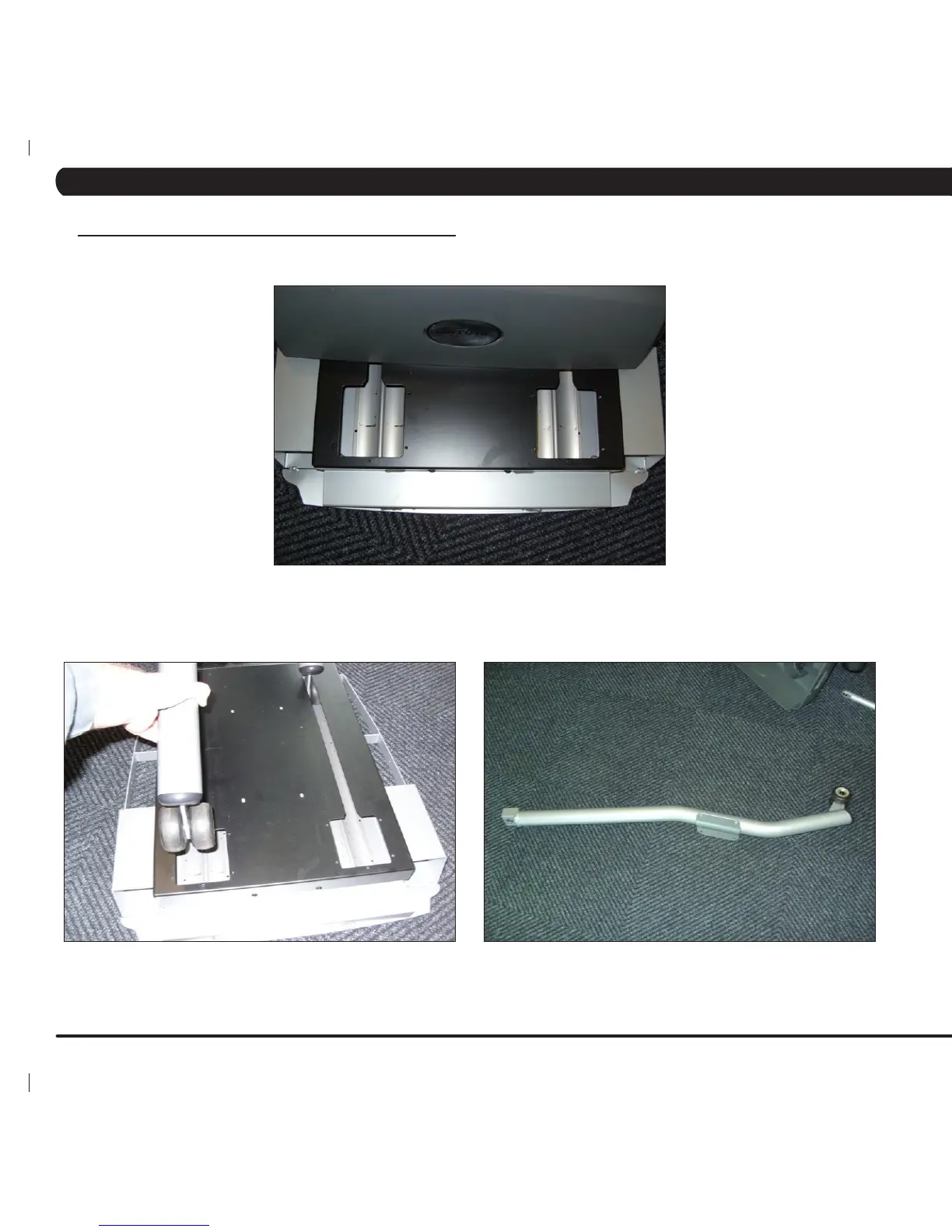

FIGURE H
FIGURE I
FIGURE J FIGURE K
7) Remove the 5 screws holding down the roller cover, remove the cover (Figure I).
8) Move the pedal arm so that the rollers are below the hole created by removing the roller cover, remove the pedal arm (Figures J & K).
9)ReverseSteps1-8toinstallanewpedalarm.
10) Test the elliptical trainer for function as outlined in Section 7.21.
7.17 PEDAL ARM REPLACEMENT - CONTINUED
CHAPTER 7: PART REPLACEMENT GUIDE
