Matrix E1X Service Manual

47

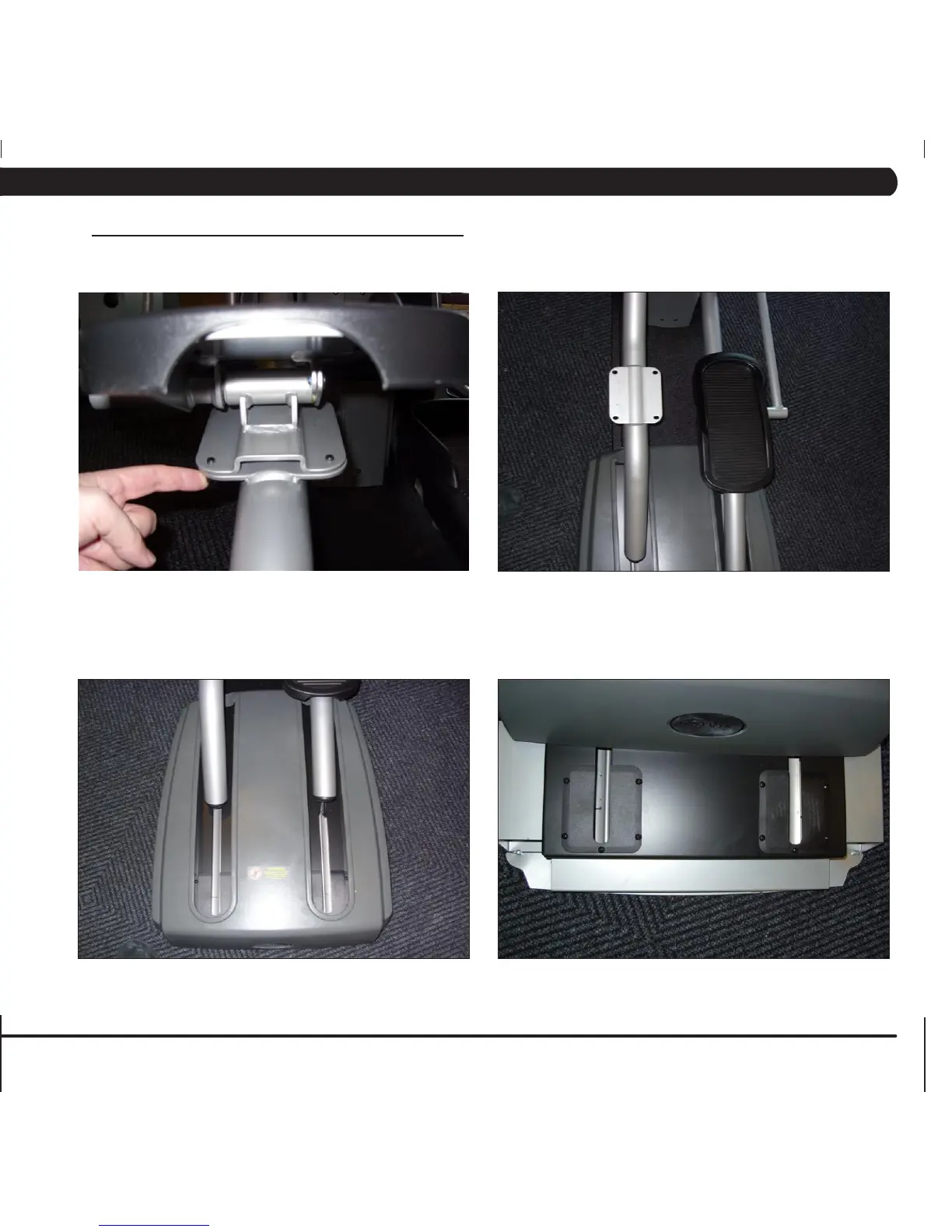

FIGURE E
7.17 PEDAL ARM REPLACEMENT - CONTINUED
CHAPTER 7: PART REPLACEMENT GUIDE
FIGURE F
5) Remove the 4 screws holding the link arm assembly to the pedal arm (Figure E), move the link arm out of the way (Figure F).
6) Remove the 6 screws holding the rear shroud in place and move the shroud out of the way (Figures G & H).
FIGURE G FIGURE H
