Matrix E1X Service Manual

31
7.6 CONSOLE KEYPAD / OVERLAY REPLACEMENT - CONTINUED
CHAPTER 7: PART REPLACEMENT GUIDE

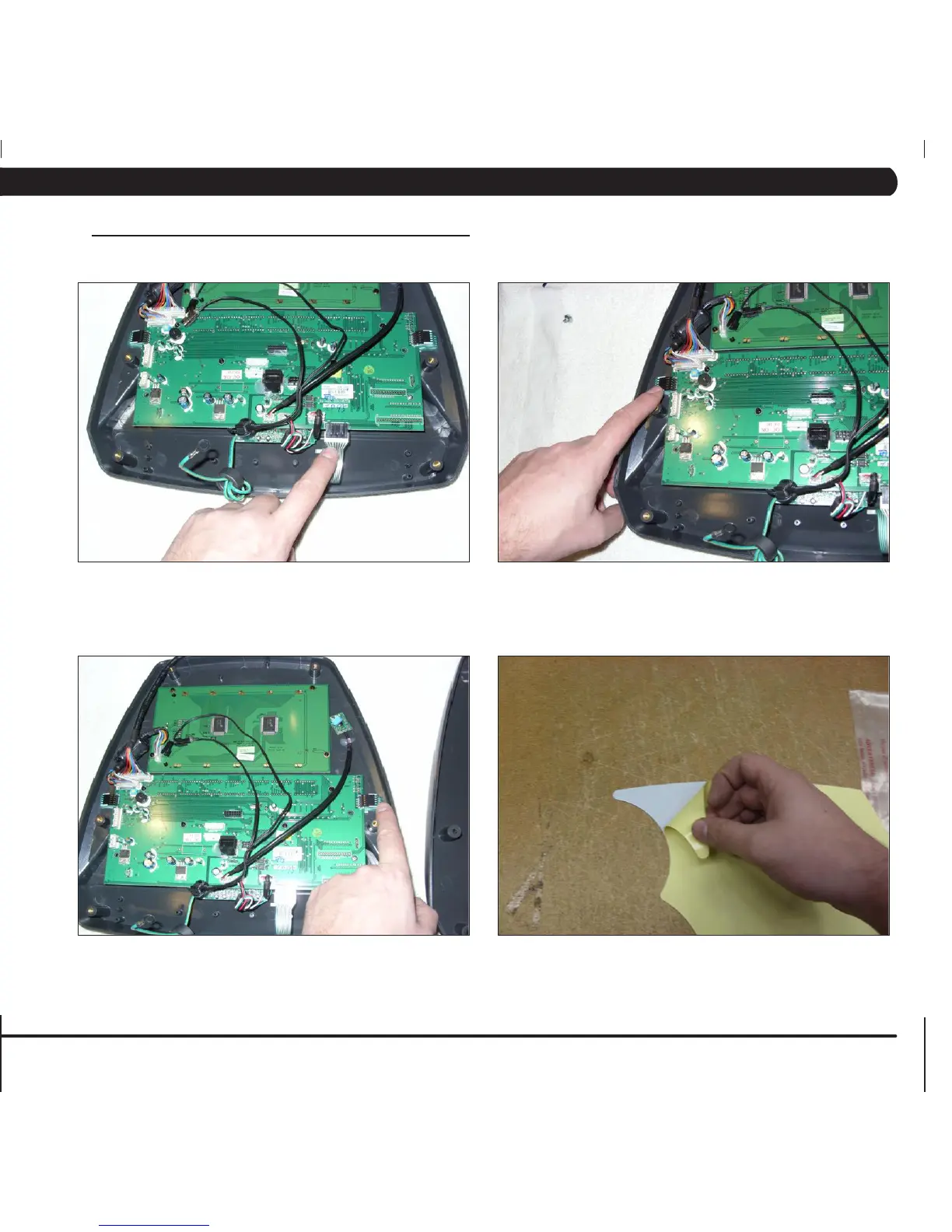

FIGURE E FIGURE F
6)Disconnecttheappropriateribboncableforthekeypadthatyouarereplacing(FiguresE-G).
7) Again using a razor blade, carefully peel up one corner of the defective keypad and the remove it from the console.
8) Remove the backing from the new keypad (Figure H). Install the new keypad by sliding the ribbon cable through the slot in the console and
plug it in to the appropriate console housing. Be careful to seat the ribbon cable correctly.
9) Remove the backing from the new overlay. Install the new overlay into the console housing over the keypad. Be careful to avoid air bubbles
and misalignment.
10)ReverseSteps1-4tore-installtheconsole.
11) Test the elliptical trainer for function as outlined in Section 7.21.
FIGURE G FIGURE H
