PIPETTOR REASSEMBLY
After autoclaving, and once all of the components have
completely dried, the unit is ready for relubrication and
reassembly.
Cross Tube Replacement

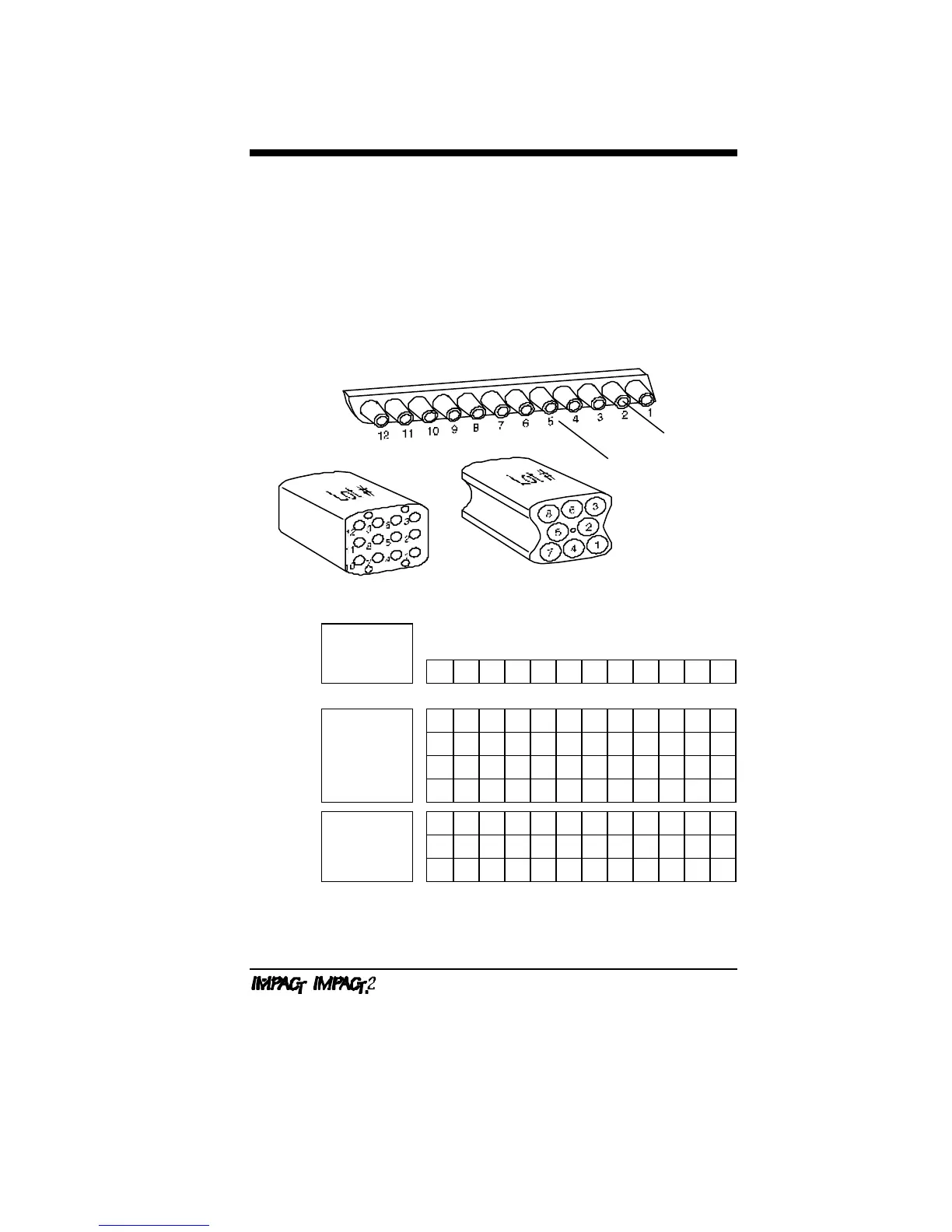

Refer to the following table for proper connection of cross tubes
from the tip fittings to the cylinder positions.
Manifold Assembly
Tip Fittings
850, 250, 125, and 12.5 ul Cylinder 1250 ul Cylinder
850 ul
Cylinder
Type
1250 ul
Cylinder
Type
Number of
Pipetting
Tip Fitting Positions
Channels
1 2 3 4 5 6 7 8 9 10
11
12
Cylinder Positions
12
1 2 3 4 5 6 7 8 9 10
11
12
8
1 3 4 6 7 9 10
12
– – – –
6
1 2 3 10
11
12
– – – – – –
5
1 2 3 10
11
– – – – – – –
8
1 2 3 4 5 6 7 8 – – – –
6
1 3 4 6 7 8 – – – – – –
5
1 3 4 5 7 – – – – – – –
NOTE: IF THE CROSS TUBE ORIENTATION BETWEEN
THE CYLINDER AND TIP FITTINGS IS NOT CORRECT,
REASSEMBLY OF THE PIPETTOR WILL BE IMPAIRED.
