94 Matrix SATATYA Devices Manual
The SATATYA NVRX provides the different modes for the storage management. Select the mode of the storage
from the Mode drop-down list. You can select the Single Disk Volume or different RAID levels as per the usage. To
know more about RAID creation and different supported RAID levels in NVRX, See “RAID Concept” on page 318.
The Physical Disks section displays the configuration and the physical status of the connected disks.
The Logical Volumes section will display the status of the disk volumes based on the configured Storage
management mode. Format option is available to initialize the disks and create a new volume.

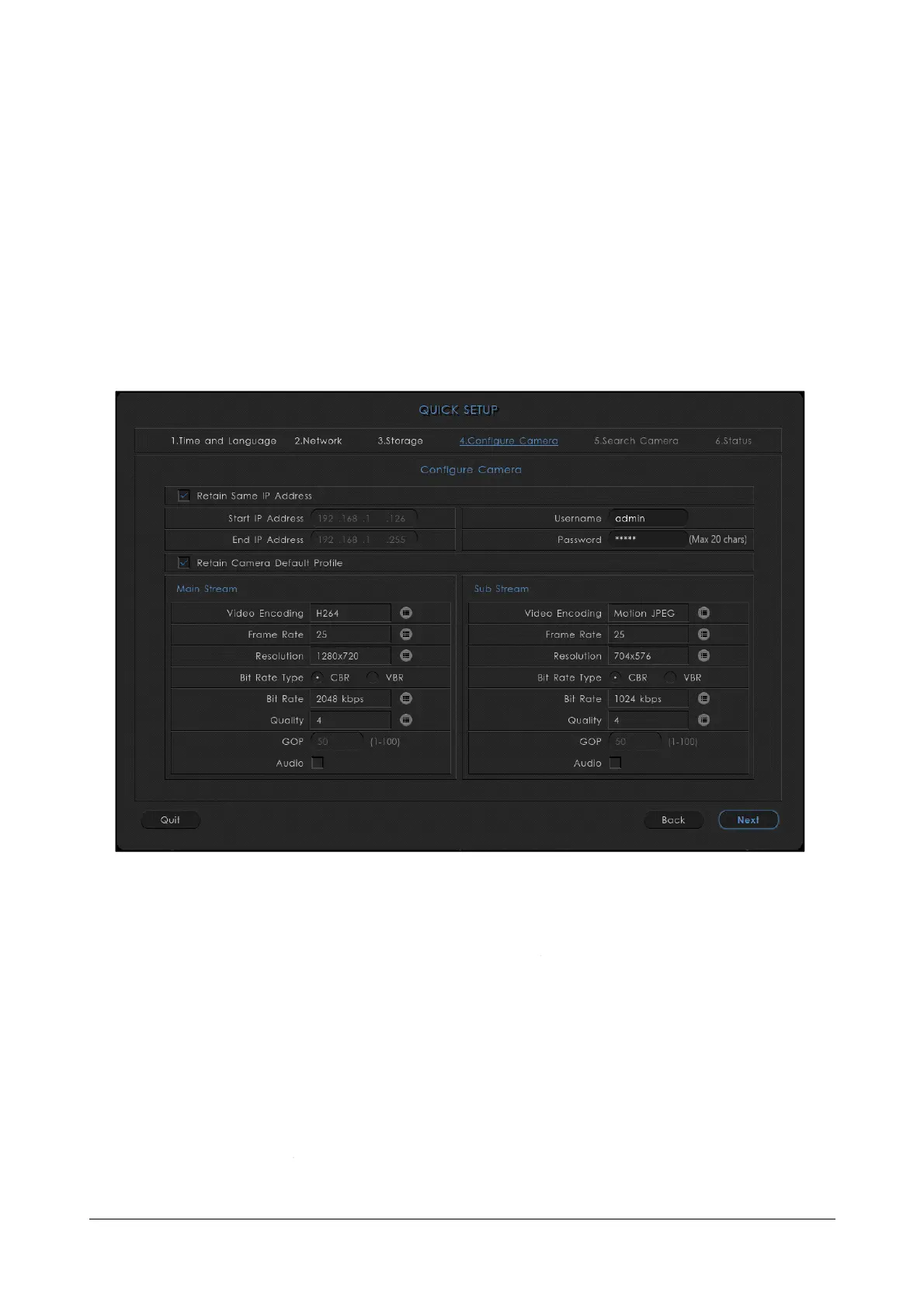

Configure Camera
This page allows the user to configure the parameters for the cameras to be added in the NVRX.
• Retain same IP Address: If the box is checked then searched camera(s) will be added with same
searched IP Address. If the box is not checked then user can define the range to auto configure. All the
cameras will be assigned IP address from the defined range.
By default, this checkbox is enabled.
• Start/End IP Range: Define a range in which you want to assign IP address to the camera by specifying
start and end IP address.
• User Name/Password: Enter the username and password of your choice with which the camera is to be
added in the device.
• Retain Camera Default Profile: If the box is checked then live stream for camera will auto start with
camera default profile. If not checked then user can set the desired parameters of Main Stream and Sub
Stream for live stream.
