Matrix SATATYA NVR0801X System Manual

Matrix SATATYA Devices Manual 81

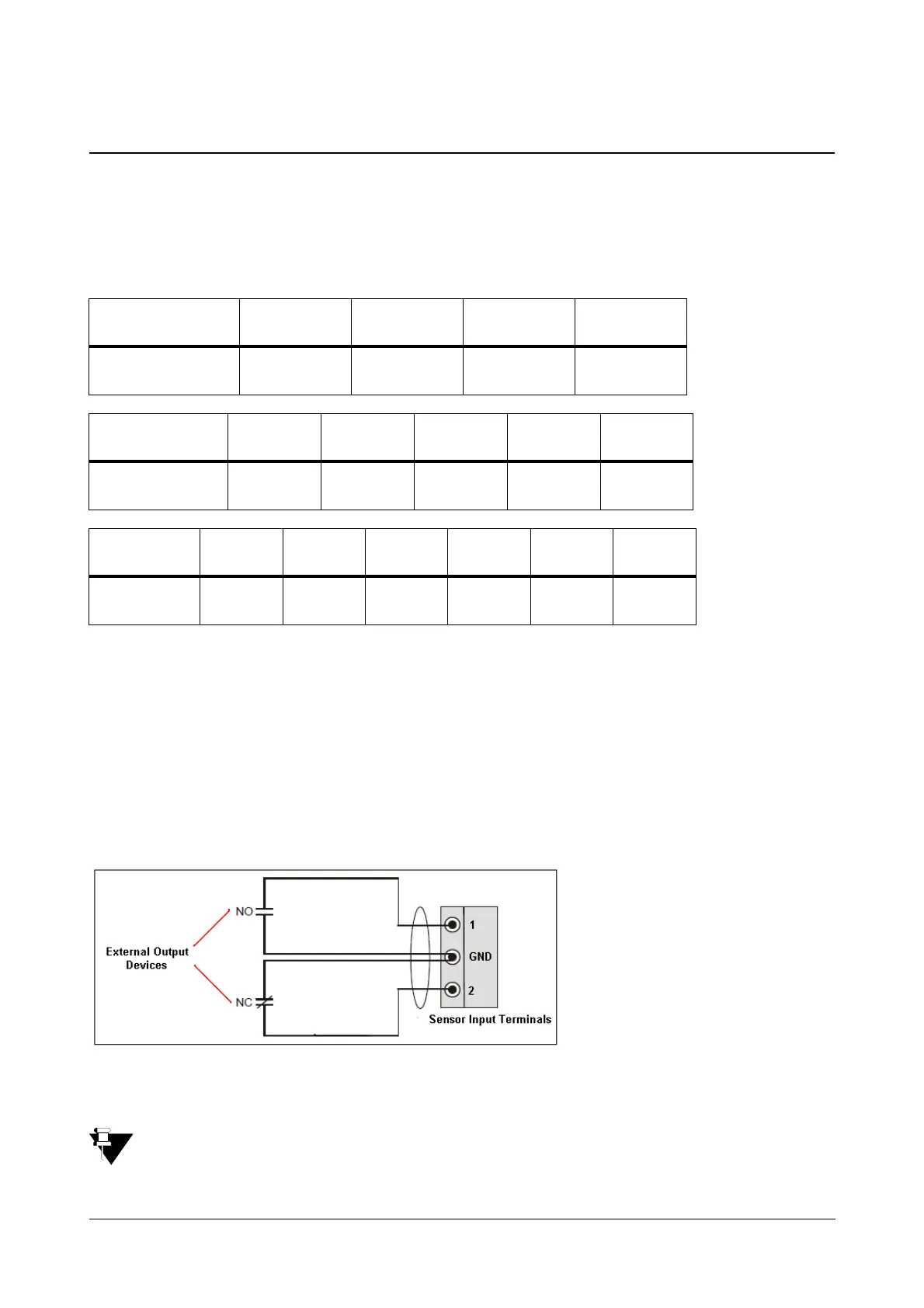

Hooking up Inputs
The SATATYA device such as and HVR has an on-board capability of monitoring sensor inputs which can be linked
to Event and Action. The maximum distance of one line is 600 m (2,000 feet) with a two conductor cable having a
gauge of AWG#22. One ground point is provided for the available inputs in devices.
The number of sensor inputs available in SATATYA devices are shown below:
These inputs operate with a simple On/Off function and the recording state can be controlled based on the state of
the inputs.
Inputs can be connected to either NO (Normally Open) or NC (Normally Closed) type sensor contacts as shown in
figure.
The installer can configure each input depending on the type. Connect one ground wire between the external
device to the terminal block GND input on the NVR/HVR as shown. Connect the other wire to the sensor input 1–8
connection on the terminal block.
The user can connect the output from another device, For e.g. a fire alarm relay or the AUX relay of a
DOOR Controller can be connected to one of the Inputs and an Event and Action mapping can be defined
to link the input event to the desired action.
SATATYA NVRX
Series Variants
NVR0801X/
NVR1601X
NVR1602X/
NVR3202X
NVR3204X/
NVR6404X
NVR6408X
Sensor Inputs
availability
Yes(2) Yes(2) Yes(2) Yes(2)
SATATYANVR
other Variants
NVR
8S
NVR
16S
NVR
24P
NVR
16H
NVR
64P/S
Sensor Inputs
availability
Yes(2) Yes(4) Yes(8) Yes(8) Yes(4)
SATATYAHVR
Variants
HVR
1624P
HVR
1624S
HVR
0824P
HVR
0824S
HVR
0408P
HVR
0408S
Sensor Inputs
availability
Yes(8) Yes(4) Yes(8) Yes(4) Yes(2) No
