Layout

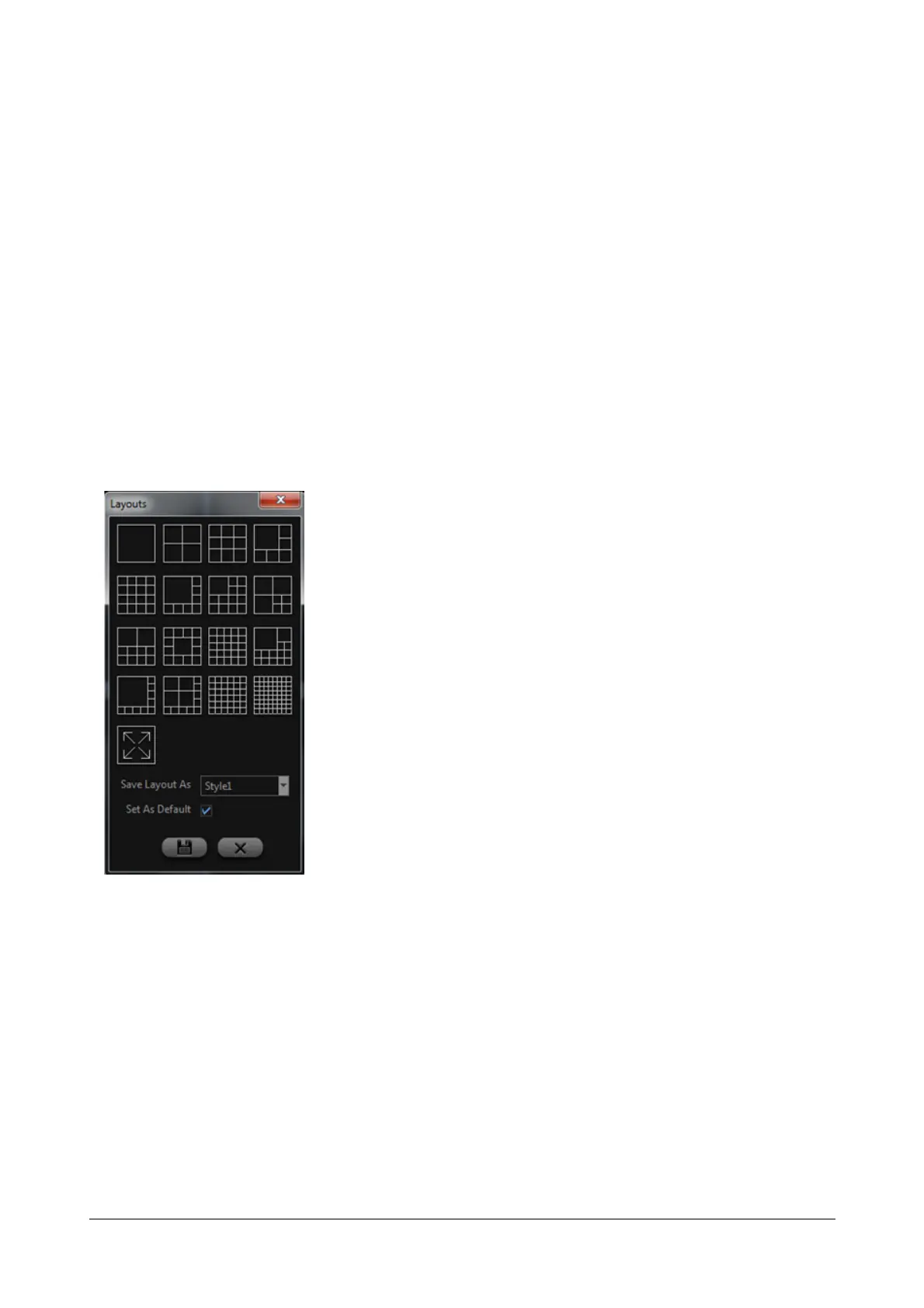

Click on Layout section from the Left pane of device client. The layout window appears as shown below.
Select a layout template from the different options. The selected layout will be applied in the monitoring window.
Select the style to save the layout from the Save Layout As drop-down list. You can select one of the five styles
from the list.
Enable Set As Default checkbox to set the selected layout as default layout.
Click Save to save the style.
Once done the layout gets stored and when the user logs out and logs in again to the device client he finds the
same layout which was selected before. Thus, user specific layouts can be created and stored.
Now, assign cameras to the monitoring windows in the selected layout by highlighting a monitoring window and
clicking on the appropriate channel.

Matrix SATATYA NVR0801X Specifications

General

Brand	Matrix
Model	SATATYA NVR0801X
Category	DVR
Language	English
