280 Matrix SATATYA Devices Manual

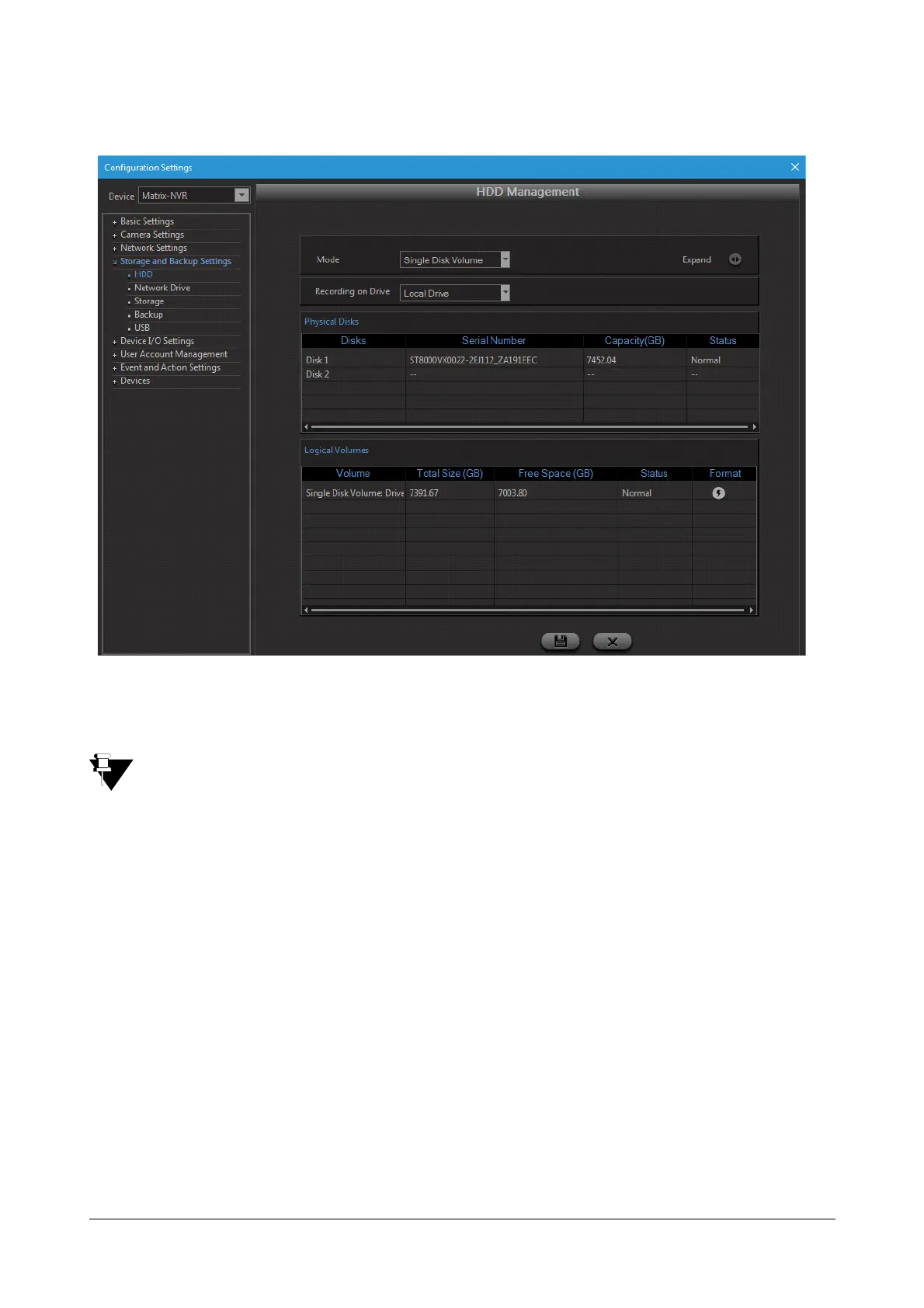

HDD Management in other NVR and HVR variants
The SATATYA HVR provides the following modes for Storage management:
• Single Disk Volume
• RAID 0 (Disk Striping to enhance performance)
In HVR 1624P and HVR 0824P hard disk should be connected in SATA1 and SATA3 ports (or SATA2 and
SATA 4 ports) for RAID 0 mode.
• RAID 1 (Disk Mirroring to provide fault tolerance)
Recording on Drive option enables the user to specify the storage location of the recorded files. Select the local
or the network drives as per the site requirements.
The Expand option is used in the event of the RAID 1 mode being set for the disks. This option is used to enhance
the storage capacity without losing existing data.
For e.g. if the current RAID 1 configuration consists of 2 x 500GB disks and the user wants to upgrade to a 2 x 1TB
RAID 1 configuration then the following steps need to be followed:
• Power down the HVR and remove one of the 500 GB disks and connect a 1 TB disk in its place.
• Power up the HVR and let the system mirror the data from the 500 GB disk to the 1 TB disk.
• Power down the HVR again and remove the second 500 GB disk and connect the other 1 TB disk in its
place.
