Matrix SATATYA NVR0801X System Manual

78 Matrix SATATYA Devices Manual

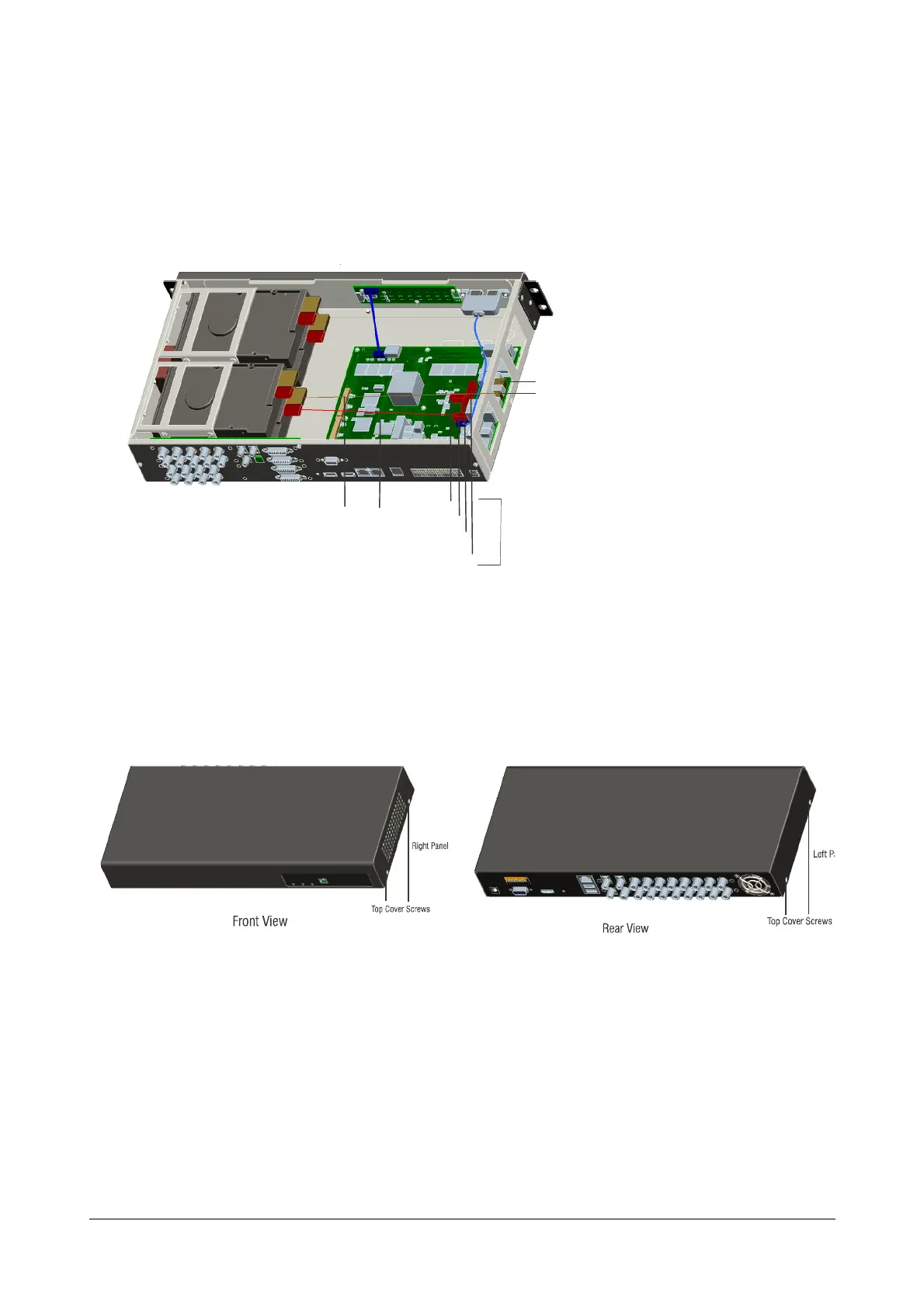

4. Now Mount the Hard disk with the Clamp on the bottom plate of the HVR, align with the screws on the plate.
5. Inside the device, you will find two sets of SATA power cable and data cable for each hard disk.
Connect the SATA power cable and the data cable into the respective connectors on the Hard disk and connect the
other end of the cable to the SATA connectors on the main board as shown below.
HVR 16/8S(HVR 1624S and HVR 0824S)
6. For HVR16/8S the top cover screws are located on the side panels as shown below. Remove the top cover
screws and slide open the cover.
7.Place the Hard Disk inside the holder as shown below. Secure the hard disk on the bottom plate of the HVR
inside the holder with the two screws provided using a magnetic screw driver.
HDD 1
HDD 3
HDD 2
SATA DATA
CABLE
SATA POWER
CABLE
HDD 4
SATA DATA
CONNECTORS
POWER
CONNECTORS
