Matrix SETU ATA211 V1 System Manual 63
How to Program?
Open the Web Jeeves and click on 'Automatic Number Translation' link. (Only Admin can access this Webpage).

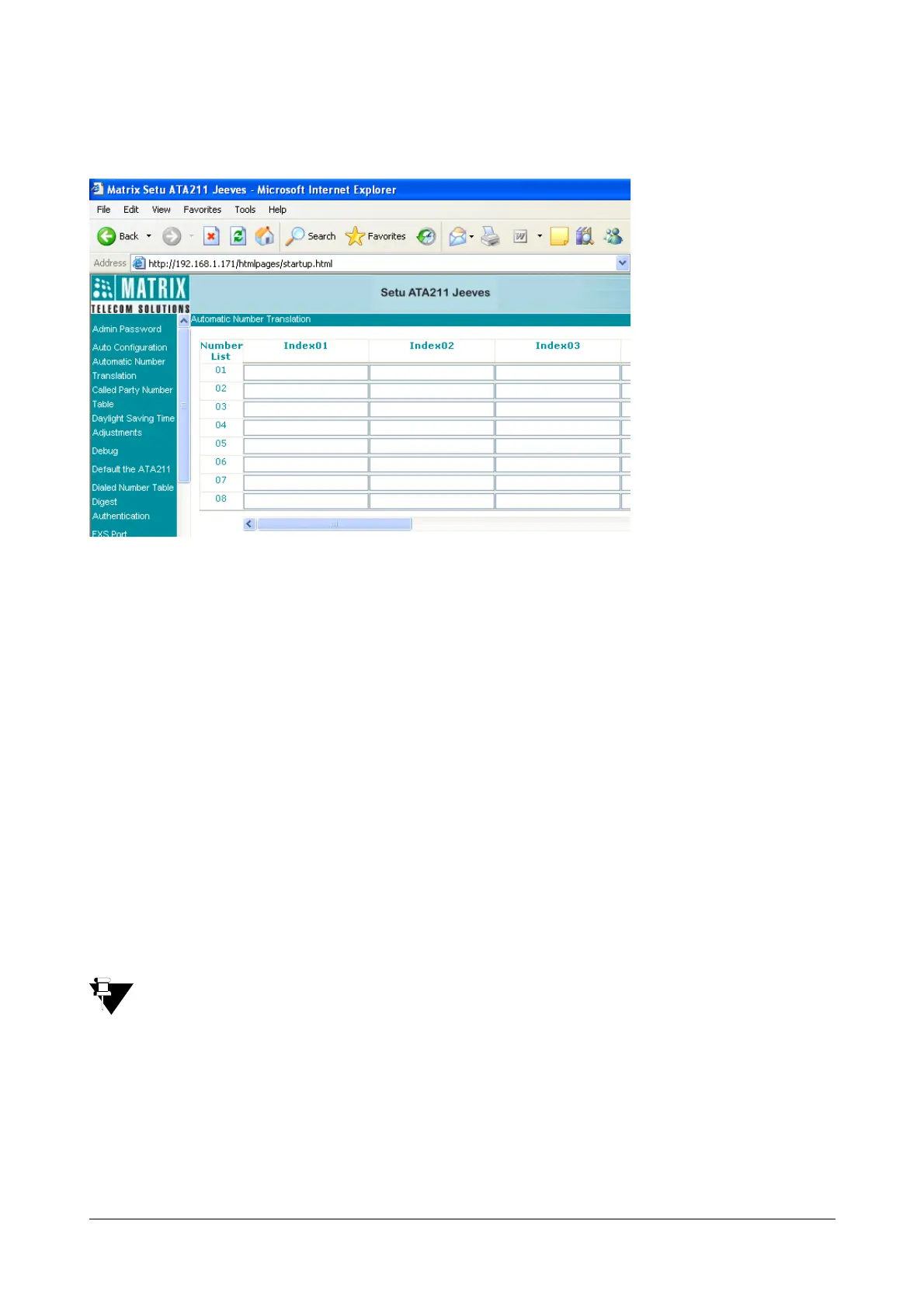

The Web page will be as shown below:
You can program different Number lists from 1 to 8.
Index:
You can program maximum 24 number strings in each number list at the Index01, Index02….Index24,
respectively.
In the Number List, program the number strings of 24 characters maximum at different Index. ASCII
characters are allowed.
You can prepare different number lists as per your application. E.g. Allowed number list, Denied number list,
Dialed number list and Substitute number list.
The ATA211 will consider character '~' as Wait for Answer and character '^' as Pause when they are
programmed in the Substitute number List and will provide suitable delay before dialing next digit after this.
These characters are used for multi-stage dialing application. Refer chapter “Using SETU ATA211” for more
details.
By default all the Number List are Blank.
Refer chapter “SIP Accounts” for ANT on SIP Account and chapter “FXO Port” for ANT on FXO port.
Relevant Topics:
1. “SIP Accounts” 104
2. “FXO Port” 86
3. “Using SETU ATA211” 35
