Matrix SETU ATA211 V1 System Manual 17
Installing SETU ATA211

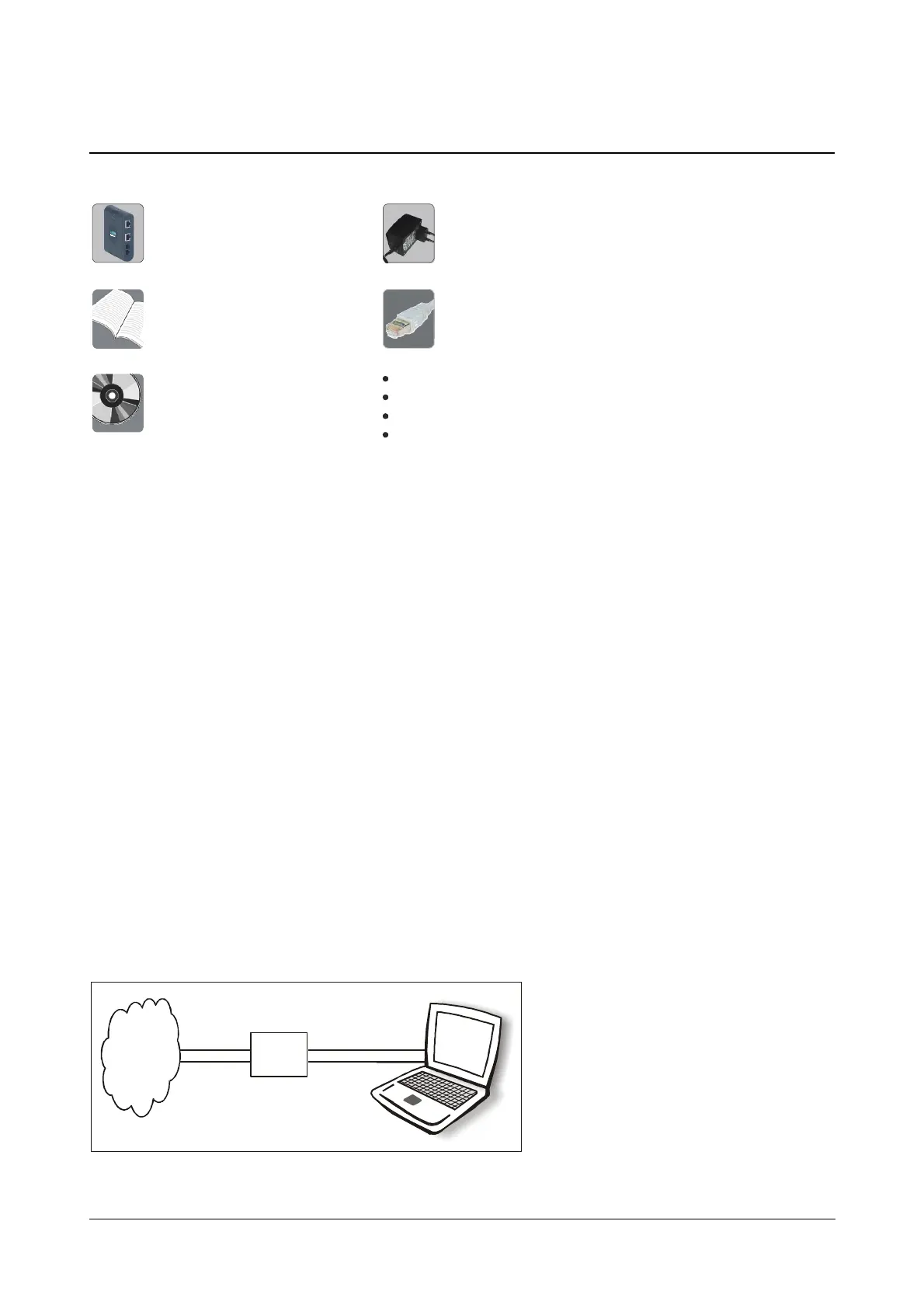

Before installing SETU ATA211, verify the package contents. The Sales Kit of SETU ATA211 contains:
Make sure that all the above mentioned components are present when you open the Sales Kit of SETU ATA211. In
case any of the part is missing or damaged, contact the vendor/ITSP/system administrator from whom you have
purchased the system.
Mounting the ATA211 on wall
• Select a suitable place on the wall for mounting the ATA211.
• Drill a hole of appropriate size.
• Insert the nail grip in the hole.
• Insert the screw and tighten it leaving the screw head a few millimeters protruded of the wall.
• Check the strength of the nail.
• Hang the ATA211 on the wall.
ATA211 can be used for various applications as shown in the topic "Applications of SETU ATA211". ATA211 can be
installed in different scenarios as shown below.
Residential Application
A typical home user has an Internet connection for surfing the net. He can purchase an ATA211 to make Voice calls
over the Internet.
The figure given below shows a typical connection made by the home user to surf the Internet before purchasing
ATA211.
Two Screw Grips
Warranty Card Set
RJ11 Line Cord
Adaptor 12V, 1.25Amp
(Country Specific)
CD containing System Manual,
Quick Start and User Card
Quick Start and User Card
Ethernet Cable (RJ45)
IP
Broadband
Modem/Router
Computer
To Next Page
