Overview
T50/T100 PTM – User Guide – Version 2 Issue 1
Overview
In the Box
Carefully remove the T50/T100 print head from its packaging and inspect it to make sure that
no damage has occurred as a result of shipping. If there are any discrepancies, please contact
you local Matthews dealer for further advice. Ink and additional equipment, as shown below,
are ordered separately to the print head.
Additional Equipment
The following equipment can be ordered separately to the print head. For further information
contact your local dealer.

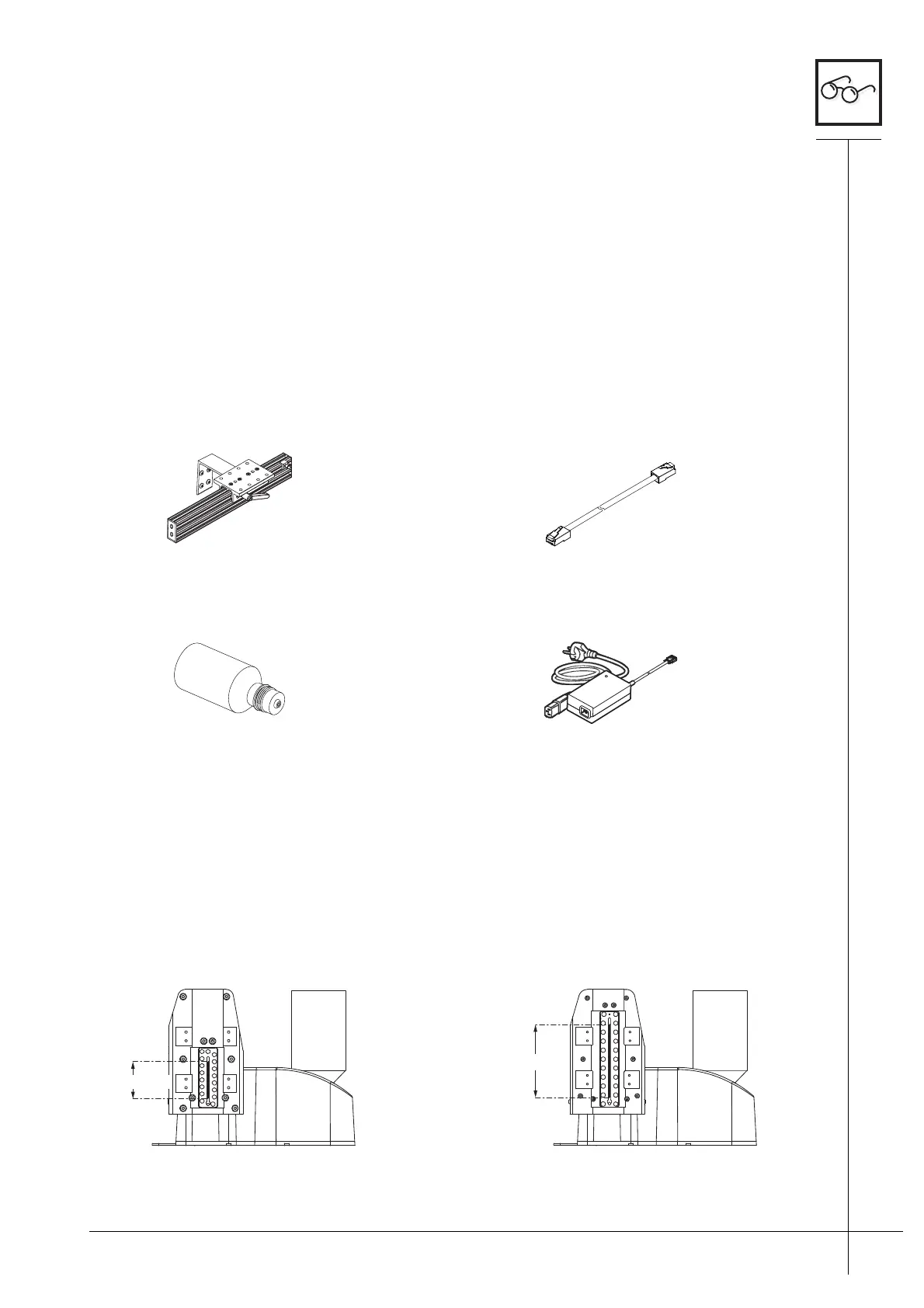

Figure 1 - Optional equipment
Print Head Description
The print heads can be supplied as either a 50 mm (T50) or 100 mm (T100), as shown below.
The difference between the two lies within the number of nozzles that they have and hence
the maximum print size. The 50 mm has 384 nozzles, the 100 mm has 768 nozzles.
Figure 2 - 50 mm and 100 mm print head
Mounting assembly for print head
and print head stand
Print head Power-Supply-Pack – AC to DC
Ethernet cable for connecting print heads
to a Viacode PCM
Ink (Scantrue II – 500/125 ml)
2” (50.8 mm)
4” (101,6 mm)
