Wiring
EC Motors
maxon motor control
4-30 Document ID: rel4734 ESCON Servo Controller
Edition: November 2014 ESCON Module 50/5 Hardware Reference
© 2014 maxon motor. Subject to change without prior notice.

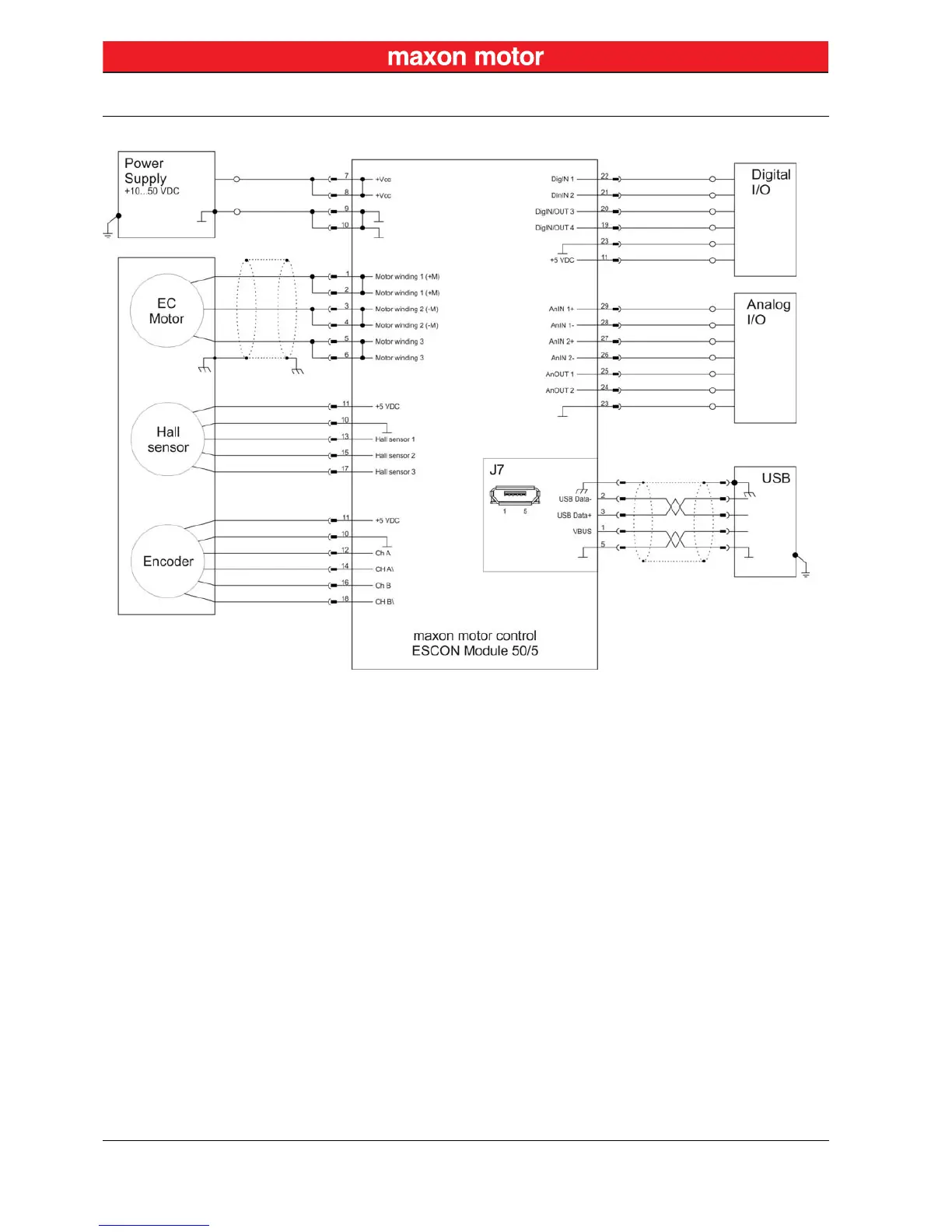

MAXON EC MOTOR WITH HALL SENSORS & ENCODER
Figure 4-22 maxon EC motor with Hall Sensors & Encoder
