Motherboard Design Guide
ESCON Module Motherboard (438779)
maxon motor control
ESCON Servo Controller Document ID: rel4734
5-37
ESCON Module 50/5 Hardware Reference Edition: November 2014
© 2014 maxon motor. Subject to change without prior notice.
5.7 ESCON Module Motherboard (438779)
The ESCON Module Motherboard (subsequently named ESCON Module MoBo) is available as an alter-
native to developing an own motherboard. All required connections are already in place and designed
as screw-type terminals.

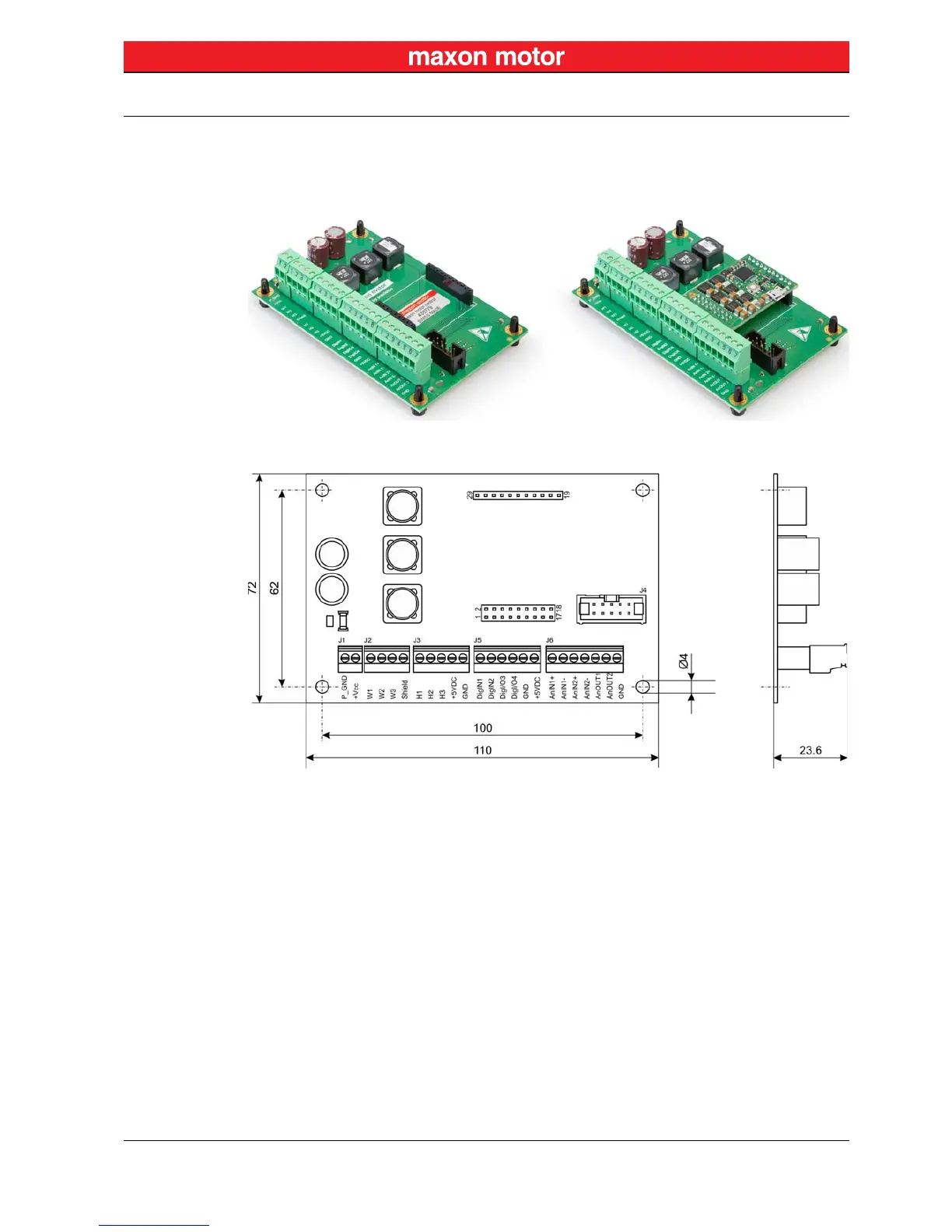

Figure 5-26 ESCON Module MoBo (left), with mounted ESCON Module 50/5 (right)
Figure 5-27 ESCON Module MoBo – Dimensional Drawing [mm]
