Wiring
EC Motors
maxon motor control
ESCON Servo Controller Document ID: rel4734
4-29
ESCON Module 50/5 Hardware Reference Edition: November 2014
© 2014 maxon motor. Subject to change without prior notice.
4.2 EC Motors

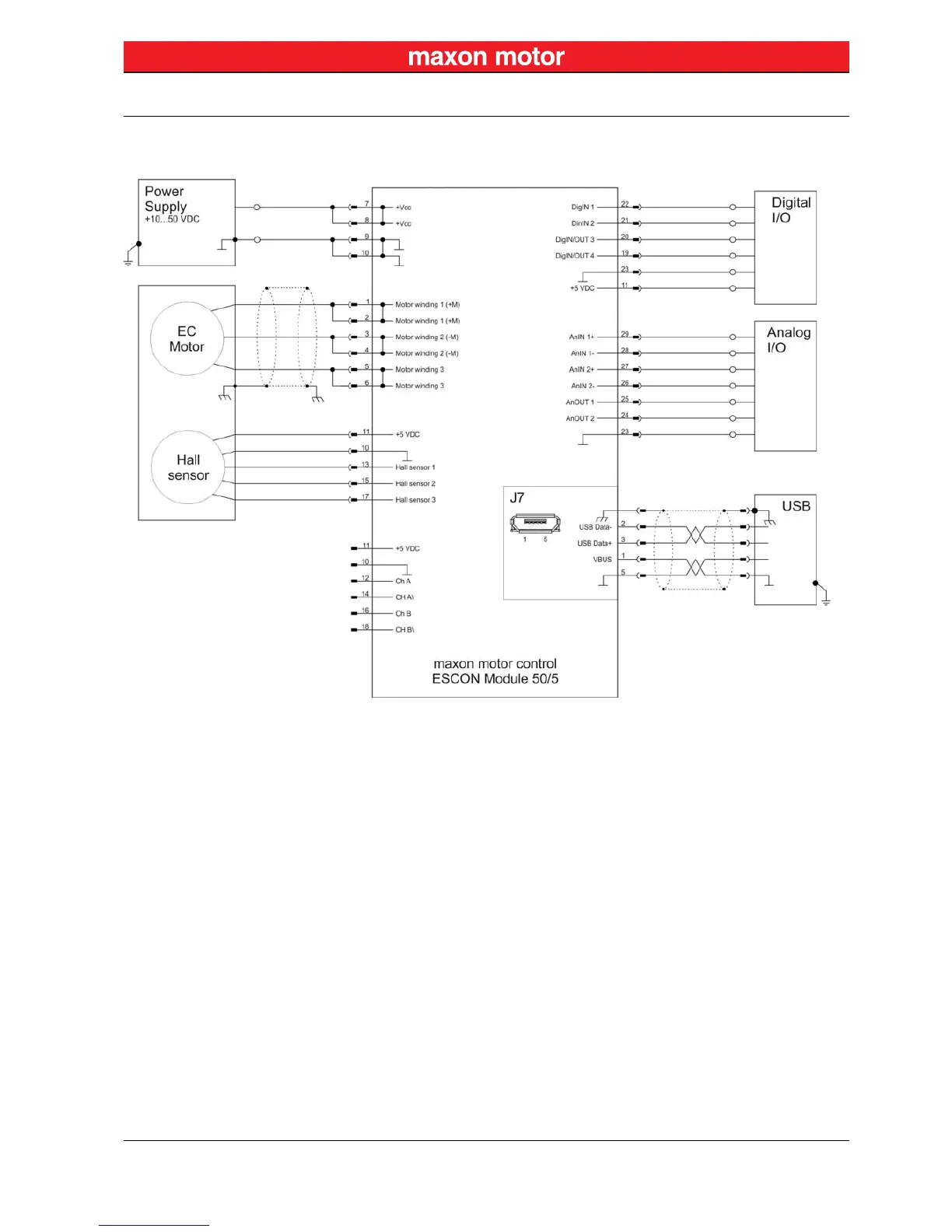

MAXON EC MOTOR WITH HALL SENSORS
Figure 4-21 maxon EC motor with Hall Sensors
