maxon motor ESCON Module 50/5 - Table 5-24 ESCON Module Mobo - Digital I;Os Plug J5 - Pin Assignment; Table 5-25 ESCON Module Mobo - Digital I;Os Plug J5 - Specification & Accessories

Motherboard Design Guide
ESCON Module Motherboard (438779)
maxon motor control
5-44 Document ID: rel4734 ESCON Servo Controller
Edition: November 2014 ESCON Module 50/5 Hardware Reference
© 2014 maxon motor. Subject to change without prior notice.
5.7.2.5 Digital I/Os (J5)

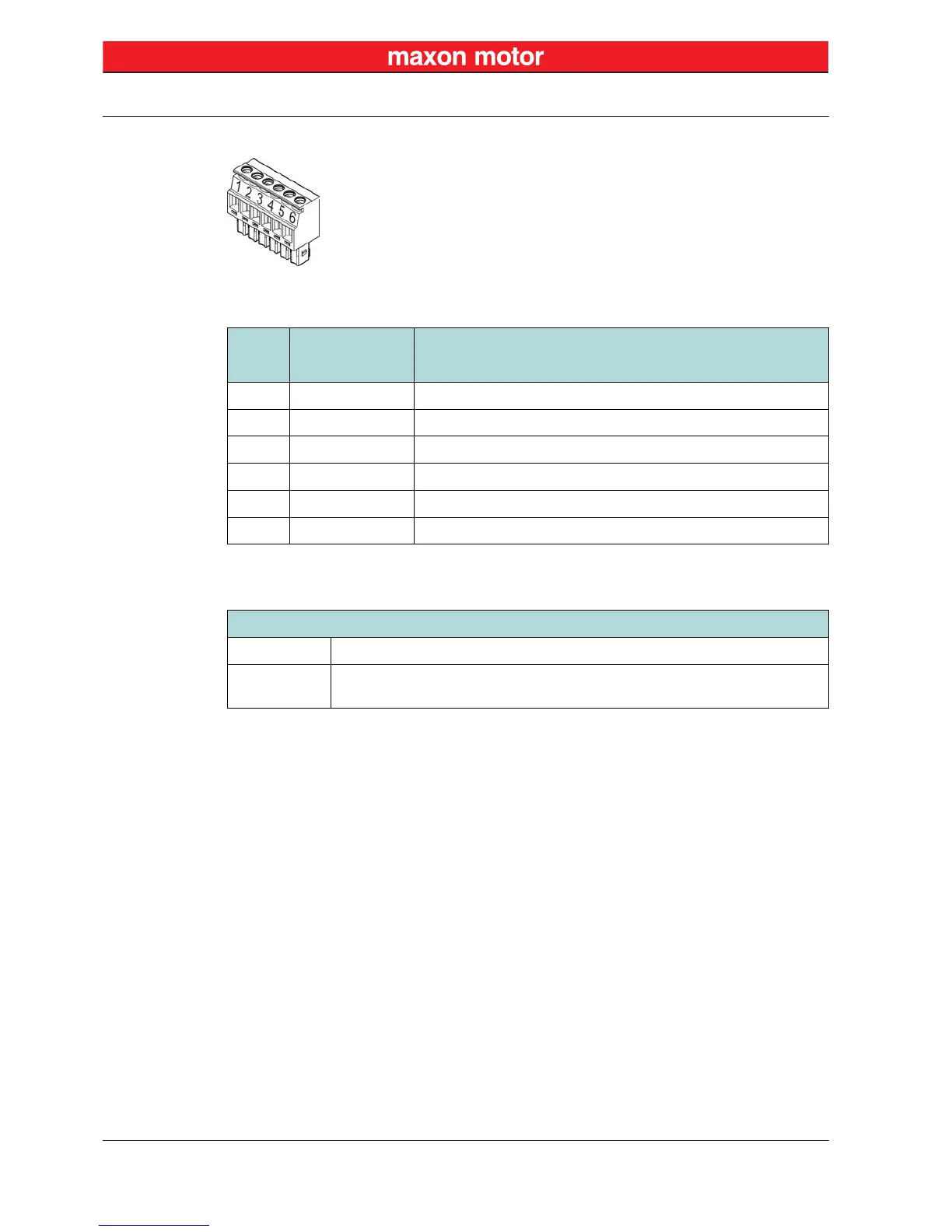

Figure 5-33 ESCON Module MoBo – Digital I/Os Plug J5
Table 5-24 ESCON Module MoBo – Digital I/Os Plug J5 – Pin Assignment
Table 5-25 ESCON Module MoBo – Digital I/Os Plug J5 – Specification & Accessories
J5
Signal Description
Pin
1 DigIN1 Digital input 1
2 DigIN2 Digital input 2
3 DigIN/DigOUT3 Digital input/output 3
4 DigIN/DigOUT4 Digital input/output 4
5 GND Ground
6 +5 VDC Auxiliary output voltage (+5 VDC;
≤10 mA)
Specification / Accessories
Type Pluggable screw-type terminal block, 6 poles, 3.5 mm pitch
Suitable cables
0.14…1.5 mm
2
multi-core, AWG 28-14
0.14…1.5 mm
2
single wire, AWG 28-14
