5-50 Document ID: rel4734 ESCON Servo Controller
Edition: November 2014 ESCON Module 50/5 Hardware Reference
© 2014 maxon motor. Subject to change without prior notice.
MAXON EC MOTOR WITH HALL SENSORS & ENCODER

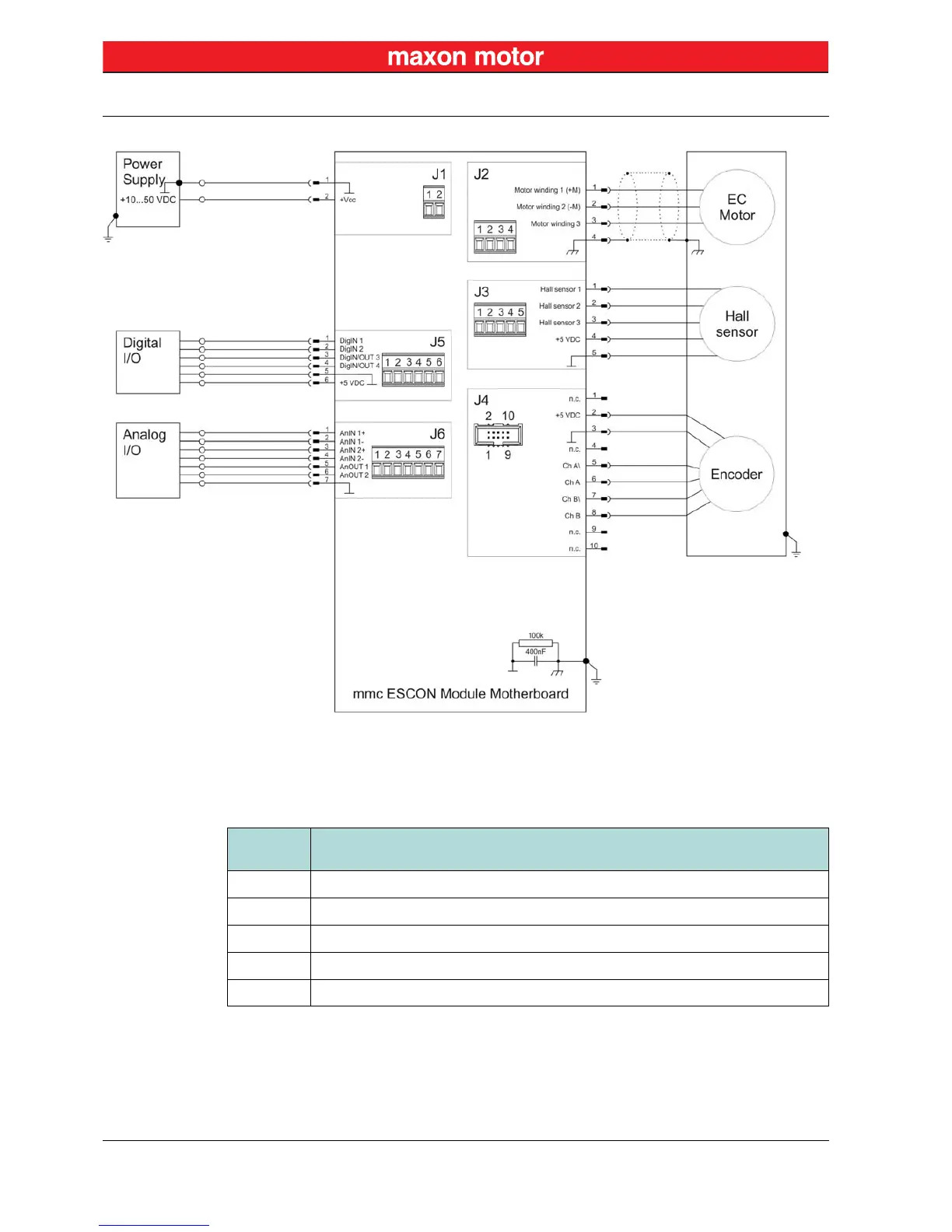

Figure 5-39 ESCON Module MoBo – maxon EC motor with Hall Sensors & Encoders (J2 / J3 / J4)
5.8 Spare Parts
Table 5-28 Spare Parts List
Order
number
Description
444144 2-pole pluggable screw-type terminal block, 3.5 mm pitch, labeled 1…2
444145 4-pole pluggable screw-type terminal block, 3.5 mm pitch, labeled 1…4
444146 5-pole pluggable screw-type terminal block, 3.5 mm pitch, labeled 1…5
444147 6-pole pluggable screw-type terminal block, 3.5 mm pitch, labeled 1…6
444148 7-pole pluggable screw-type terminal block, 3.5 mm pitch, labeled 1…7
